BE QUIET!

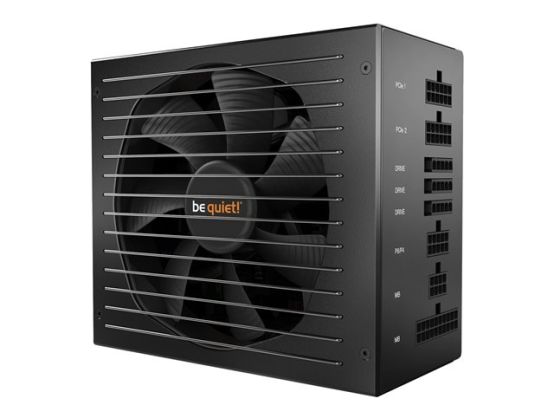

STRAIGHT POWER 11 850W 80 PLUS PLATINUM POWER SUPPLY

Name: STRAIGHT POWER 11 850W 80 PLUS PLATINUM POWER SUPPLY
Brand: BE QUIET!
SKU: 1TPOWPAC-012944
Price: 153.35 GBP
Availability: OutOfStock

SKU

1TPOWPAC-012944

Manufacture#: BN308

£127.79

£153.35 inc VAT

Checking delivery…

Product details

Power supply (internal)
ATX12V 2.51/ EPS12V 2.92
80 PLUS Platinum
AC 100-240 V

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

be quiet! Straight Power 11 Platinum 850W
Power supply (internal)
ATX12V 2.51/ EPS12V 2.92
80 PLUS Platinum
AC 100-240 V
850 Watt
active PFC
black

Overview

be quiet! Straight Power 11 Platinum 850W raises the bar for systems that demand virtually inaudible operation without power quality compromises.

Specification

Product Description be quiet! Straight Power 11 Platinum 850W - power supply - 850 Watt

Device Type Power supply - active Power Factor Correction (PFC) - internal

Specification Compliance ATX12V 2.51/ EPS12V 2.92

80 PLUS Certification 80 PLUS Platinum

Weight 1.84 kg

Input Voltage AC 100-240 V

Output Voltage +3.3, +5, ±12 V

Power Capacity 850 Watt

Output Current +3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 21 A ¦ +12V2 - 21 A ¦ +12V3 - 26 A ¦ +12V4 - 26 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A

Output connectors 1 x power 24 pin ATX with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 11 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power

Modular Cable Management Yes

Cooling System 135 mm fan

Included Accessories Screws, cable ties

Colour Black

Dimensions (WxDxH) 15 cm x 16 cm x 8.6 cm

Environmental Standards ENERGY STAR

Manufacturer Warranty 5-year warranty

General

Device Type Power supply - active Power Factor Correction (PFC) - internal

Specification Compliance ATX12V 2.51/ EPS12V 2.92

PSU Form Factor ATX

Colour Black

Power Device

Input Voltage AC 100-240 V

Frequency Required 50 - 60 Hz

Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 11 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power

Output Voltage +3.3, +5, ±12 V

Power Capacity 850 Watt

Output Current +3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 21 A ¦ +12V2 - 21 A ¦ +12V3 - 26 A ¦ +12V4 - 26 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A

Efficiency 94% at 50% Load, 92.7% at 100% Load, 92% at 20% Load

Power Factor (PF) 0.99

Modular Cable Management Yes

80 PLUS Certification 80 PLUS Platinum

Miscellaneous

Included Accessories Screws, cable ties

MTBF 100,000 hours

Cooling System 135 mm fan

Features Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported, 4 x 12V rail, thermal protection, DC-DC technology, fluid dynamic bearing cooling fan, Synchronous Rectifier (SR) technology, fully modular

Compliant Standards BSMI, CB, FCC, cTUVus, ERP, EAC, RCM, TUV Rheinland, CU, ErP Ready

Sustainability Information

ENERGY STAR Yes

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Max Operating Temperature 40 °C

Sound Emission 7.7 dBA

Dimensions & Weight

Width 15 cm

Depth 16 cm

Height 8.6 cm

Weight 1.84 kg

Dimensions & Weight (Shipping)

Shipping Width 24.8 cm

Shipping Depth 32.8 cm

Shipping Height 10.2 cm

Shipping Weight 2.8 kg
