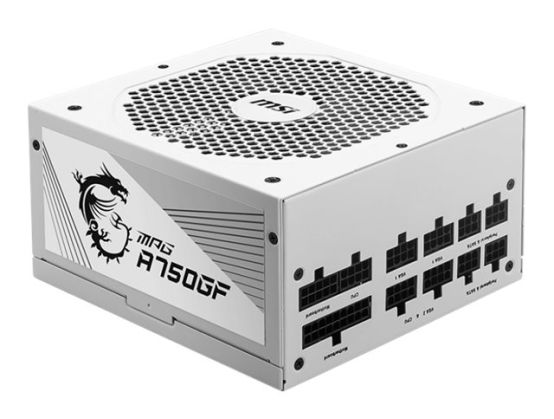

Product DescriptionMSI MPG A750GF - power supply - 750 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V / EPS12V
80 PLUS Certification80 PLUS Gold
Input VoltageAC 100-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity750 Watt
Output Current+3.3V - 22 A ¦ +5V - 22 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A ¦ +12VMBPH - 25 A ¦ +12VCPU - 25 A ¦ +12VVGA1 - 35 A ¦ +12VVGA2 - 35 A
Output connectors1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 4 PIN mini-power connector
Modular Cable ManagementYes
Cooling System140 mm fan
ColourWhite
Dimensions (WxDxH)15 cm x 16 cm x 8.6 cm
Manufacturer Warranty10 years warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V / EPS12V
PSU Form FactorATX
ColourWhite
Power Device
Input VoltageAC 100-240 V
Power Output Connectors Details1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 4 PIN mini-power connector
Output Voltage+3.3, +5, ±12 V
Power Capacity750 Watt
Output Current+3.3V - 22 A ¦ +5V - 22 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A ¦ +12VMBPH - 25 A ¦ +12VCPU - 25 A ¦ +12VVGA1 - 35 A ¦ +12VVGA2 - 35 A
Efficiency90%
Modular Cable ManagementYes
80 PLUS Certification80 PLUS Gold
Miscellaneous
Cooling System140 mm fan
FeaturesOverheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, DC-DC technology, fully modular, LLC Half Bridge Topology
