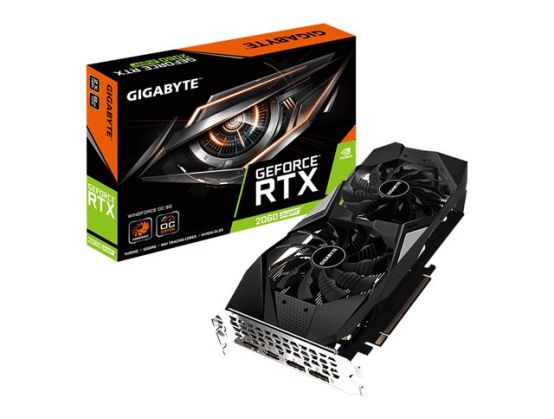

GPU NV RTX2060 Super Windforce OC 8G Fan
Manufacture#: GV-N206SWF2OC-8GD
Checking delivery…
Product details
Graphics card
GF RTX 2060 SUPER
8 GB GDDR6
PCIe 3.0 x16
Payment options available at checkout
Main features
Gigabyte GeForce RTX 2060 SUPER WINDFORCE OC 8G
Graphics card
GF RTX 2060 SUPER
8 GB GDDR6
PCIe 3.0 x16
HDMI, 3 x DisplayPort
Overview
WINDFORCE 2X cooling system features 2x 100mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes direct touch GPU and 3D active fan, together delivering an effective heat dissipation.
Product Description
Gigabyte GeForce RTX 2060 SUPER WINDFORCE OC 8G - graphics card - GF RTX 2060 SUPER - 8 GB
Device Type
Graphics card
Bus Type
PCI Express 3.0 x16
Graphics Engine
NVIDIA GeForce RTX 2060 SUPER
Memory
8 GB GDDR6
Boost Clock
1680 MHz
CUDA Cores
2176
Effective Memory Clock
14000 MHz
Memory Interface
256-bit
Max Resolution
7680 x 4320
Max Monitors Supported
4
Interfaces
3 x DisplayPort ¦ HDMI
API Supported
DirectX 12, OpenGL 4.5
Dimensions (WxDxH)
4 cm x 26.5 cm x 12.1 cm
General
Device Type
Graphics card
Bus Type
PCI Express 3.0 x16
Graphics Engine
NVIDIA GeForce RTX 2060 SUPER
Boost Clock
1680 MHz
CUDA Cores
2176
VR Ready
Yes
Max Resolution
7680 x 4320 at 60 Hz
Max Monitors Supported
4
Interfaces
3 x DisplayPort ¦ HDMI
API Supported
DirectX 12, OpenGL 4.5
Features
Ultra Durable VGA, GIGABYTE WindForce 2x, 6+2 Phase Power Design, NVIDIA G-Sync ready, NVIDIA GameWorks, Heat Pipe Direct Touch technology, NVIDIA VRWorks, Real-Time Ray Tracing, NVIDIA Turing GPU architecture, NVIDIA G-Sync HDR ready, 42T RTX-OPS performance, 100mm unique blade fan design
Memory
Size
8 GB
Technology
GDDR6 SDRAM
Effective Clock Speed
14000 MHz
Bus Width
256-bit
Bandwidth
448 GBps
System Requirements
Required Power Supply
550 W
Additional Requirements
8 pin PCI Express power connector
Miscellaneous
Software Included
Display drivers
Compliant Standards
DisplayPort 1.4
Width
4 cm
Depth
26.5 cm
Height
12.1 cm
