GPU AMD RX6800 Gaming X TRIO 16G Fan
Manufacture#: RX 6800 GAMING X TRIO 16G
Checking delivery…
Product details
Graphics card
Radeon RX 6800
16 GB GDDR6
PCIe 4.0
Payment options available at checkout
Main features

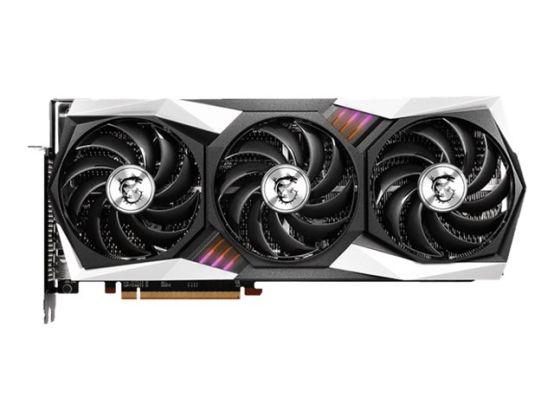

MSI Radeon RX 6800 GAMING X TRIO 16G
Graphics card
Radeon RX 6800
16 GB GDDR6
PCIe 4.0
HDMI, 3 x DisplayPort
Overview
MSI's iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
Product Description
MSI Radeon RX 6800 GAMING X TRIO 16G - graphics card - Radeon RX 6800 - 16 GB
Device Type
Graphics card
Bus Type
PCI Express 4.0
Graphics Engine
AMD Radeon RX 6800
Memory
16 GB GDDR6
Memory Speed
16 Gbps
Core Clock
1775 MHz
Boost Clock
2155 MHz
Stream Processors
3840
Memory Interface
256-bit
Max Resolution
7680 x 4320
Max Monitors Supported
4
Interfaces
3 x DisplayPort ¦ HDMI
API Supported
DirectX 12, OpenGL 4.6
Dimensions (WxDxH)
5.5 cm x 32.4 cm x 14.1 cm
General
Device Type
Graphics card
Bus Type
PCI Express 4.0
Graphics Engine
AMD Radeon RX 6800
Core Clock
1775 MHz
Boost Clock
2155 MHz
Stream Processors
3840
VR Ready
Yes
Max Resolution
7680 x 4320
Max Monitors Supported
4
Interfaces
3 x DisplayPort ¦ HDMI
API Supported
DirectX 12, OpenGL 4.6
Features
Three Fans Cooler, MSI Afterburner, Airflow Control technology, RGB Mystic Light, variable rate shading (VRS), Radeon Image Sharpening, AMD 2-way CrossFire Technology, Radeon FidelityFX, Torx 4.0 Fans, TriFrozr 2 Thermal Design, RDNA 2 Architecture, Core Pipe, DirectX Raytracing (DXR), Contrast Adaptive Sharpening (CAS), Temporal Anti-Aliasing (TAA), Ambient Occlusion (CACAO), HDCP
Memory
Size
16 GB
Technology
GDDR6 SDRAM
Memory Speed
16 Gbps
Bus Width
256-bit
System Requirements
Required Power Supply
650 W
Additional Requirements
2 x 8 pin PCI Express power connector
Miscellaneous
Power Consumption Operational
250 Watt
Included Accessories
Graphics card support bracket
Software Included
MSI Dragon Gaming Center, MSI Mystic Light
Compliant Standards
DisplayPort 1.4
Width
5.5 cm
Depth
32.4 cm
Height
14.1 cm
Weight
1.521 kg
Shipping Weight
2.326 kg
