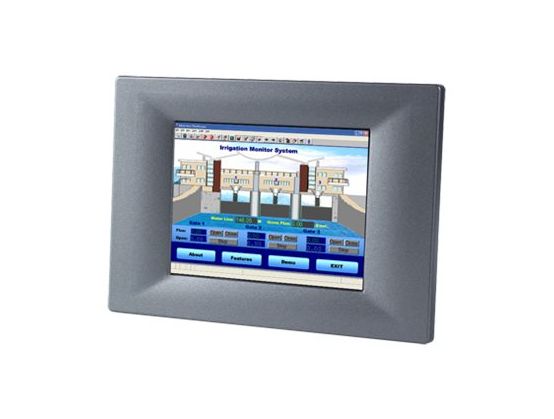

TPC-31T 3.5IN QVGA TI AM3517 256MB WITH WIN CE 6.0 600MHZ
Manufacture#: TPC-31T-E3AE
Checking delivery…
Product details
Barebone
panel PC
1 x Cortex-A8 up to
RAM 256 MB
Payment options available at checkout
Main features
Advantech TPC-31T
Barebone
panel PC
1 x Cortex-A8 up to
RAM 256 MB
flash 512 MB
Win CE 6.0
monitor: LED 3.5" 320 x 240 (QVGA) touchscreen
Overview
The TPC-31T is a compact platform without redundant functions and has been designed for small-sized operator interface applications. It has a 3.5" TFT LCD display which is a cost-effective choice for a limited budget. The TPC-31T has a 10/100Base-T Ethernet port offering solid communication ability.
Product Description
Advantech TPC-31T - panel PC - Cortex-A8 600 MHz - 256 MB - flash 512 MB - LED 3.5"
Type
PC barebone - panel PC
Processor
1 x Texas Instruments Cortex-A8 600 MHz
RAM
256 MB DDR2 SDRAM
Hard Drive
Flash 512 MB
Card Reader
Yes
Monitor
3.5" - LED - 320 x 240 (QVGA) - touchscreen
Networking
10Mb LAN, 100Mb LAN
OS Provided
Microsoft Windows CE 6.0
Dimensions (WxDxH)
12.079 cm x 2.65 cm x 8.55 cm
Weight
250 g
General
Type
PC barebone
Product Form Factor
Panel PC
Processor / Chipset
CPU
Texas Instruments Cortex-A8
Clock Speed
600 MHz
CPU Qty
1
Max CPU Qty
1
RAM
Installed Size
256 MB
Technology
DDR2 SDRAM
Hard Drive
Type
Flash
Capacity
512 MB
Card Reader
Type
Card reader
Supported Flash Memory Cards
SD Memory Card
Monitor
Monitor Type
LED
Touchscreen
Yes
Diagonal Size
3.5"
Native Resolution
320 x 240 (QVGA)
Widescreen Display
No
Horizontal Viewing Angle
160
Vertical Viewing Angle
140
Image Brightness
450 cd/m²
Image Contrast Ratio
300:1
Monitor Features
4-Wire Resistive Touch Screen Technology
Networking
Data Link Protocol
Ethernet, Fast Ethernet
Expansion / Connectivity
Interfaces
1 x USB 2.0 ¦ 1 x LAN - RJ-45 ¦ 1 x serial
Miscellaneous
Compliant Standards
FCC Class A certified, UL, BSMI, CCC
Power
Power Consumption Operational
8 Watt
Operating System / Software
OS Provided
Microsoft Windows CE 6.0
Dimensions & Weight
Width
12.079 cm
Depth
2.65 cm
Height
8.55 cm
Weight
250 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 95% (non-condensing)
