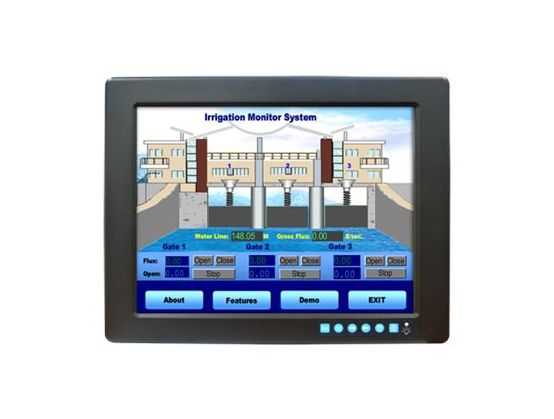

12.1 XGA WT IND. MONITOR W/ RESISTIVE TS
Manufacture#: FPM-3121G-R3BE
Checking delivery…
Product details
- FPM-3000G Series
- LED monitor
- 12.1"
- touchscreen
Payment options available at checkout
Main features
- Advantech FPM-3121G
- FPM-3000G Series
- LED monitor
- 12.1"
- touchscreen
- 1024 x 768
- 600 cd/m²
- DVI-D, VGA
Overview
The FPM-3121G is a particularly rugged and reliable wide temperature industrial monitor for a variety of industry applications.
Product Description
Advantech FPM-3121G - FPM-3000G Series - LED monitor - 12.1"
Device Type
LED-backlit LCD monitor - 12.1" - touchscreen
Features
Touch-screen
Native Resolution
1024 x 768
Brightness
600 cd/m²
Colour Support
16.2 million colours
Input Connectors
DVI-D, VGA
Screen Coating
Anti-reflective
Voltage
DC 12/24 V
Dimensions (WxDxH)
31.2 cm x 6.05 cm x 24.4 cm
Weight
4.07 kg
Environmental Standards
ENERGY STAR Qualified
Compliant Standards
FCC Class A certified, UL, BSMI, CCC, IP65
General
Display Type
LED-backlit LCD monitor / TFT active matrix
Diagonal Size
12.1"
Native Resolution
1024 x 768
Brightness
600 cd/m²
Colour Support
16.2 million colours
Horizontal Viewing Angle
160
Vertical Viewing Angle
140
Screen Coating
Anti-reflective
Backlight Technology
LED backlight
Features
Tempered glass, OSD lock
Dimensions (WxDxH)
31.2 cm x 6.05 cm x 24.4 cm
Weight
4.07 kg
Input
Type
Touch-screen - touchscreen
Movement Detection Technology
Resistive
Connectivity
Interfaces
VGA ¦ DVI-D ¦ USB ¦ Serial
Miscellaneous
Features
VESA interface support, stainless steel chassis
Backlight Life
50,000 hour(s)
Compliant Standards
FCC Class A certified, UL, BSMI, CCC, IP65
Power
Input Voltage
DC 12/24 V
Software / System Requirements
OS Required
Microsoft Windows CE, Linux, Microsoft Windows Embedded, Microsoft Windows 2000/XP/Vista/7/8/8.1/10
Sustainability Information
ENERGY STAR Certified
Yes
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
60 °C
