15.6IN 16:9 MONITOR P-TOUCH FHD BK
Manufacture#: USC-M6P-BST10
Checking delivery…
Product details
LED monitor
15.6"
stationary
touchscreen
Payment options available at checkout
Main features
Advantech USC-M6P
LED monitor
15.6"
stationary
touchscreen
1920 x 1080 Full HD (1080p)
300 cd/m²
1000:1
HDMI, VGA
speakers
black
Overview

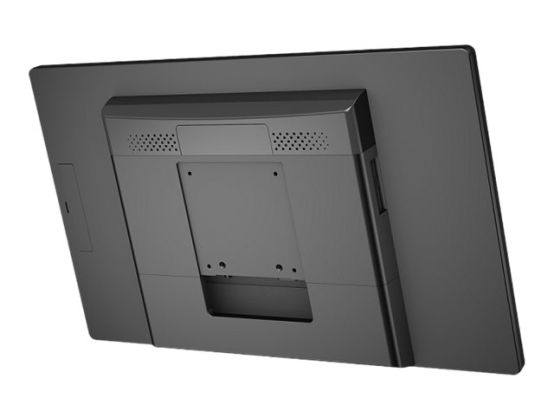

Advantech's Avalo USC-M6 touch monitor is designed to serve as a mini point-of-service (POS) solution that can be integrated with a box PC or secondary display for diverse applications. The ultraslim display features a bezel-less PCAP touch panel for convenient and intuitive operation, while the VESA mount supports stand, wall, pole, and arm mounting for installation according to usage requirements.
Product Description
Advantech USC-M6P - LED monitor - Full HD (1080p) - 15.6"
Device Type
LED-backlit LCD monitor - 15.6" - touchscreen
Features
Touch-screen
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080
Pixel Pitch
0.17295 mm
Brightness
300 cd/m²
Contrast Ratio
1000:1
Input Connectors
HDMI, VGA
Colour
Black
Dimensions (WxDxH)
38.263 cm x 3.55 cm x 24.411 cm
Compliant Standards
UL, VCCI, CB, CCC, FCC, IP65 front
General
Display Type
LED-backlit LCD monitor / TFT active matrix
Diagonal Size
15.6"
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080
Pixel Pitch
0.17295 mm
Brightness
300 cd/m²
Contrast Ratio
1000:1
Horizontal Viewing Angle
85
Vertical Viewing Angle
85
Backlight Technology
LED backlight
Features
Ultra Slim Design
Colour
Black
Dimensions (WxDxH)
38.263 cm x 3.55 cm x 24.411 cm
Audio
Type
Speakers - stereo
Output Power / Channel
2 Watt
Input
Type
Touch-screen - touchscreen
Movement Detection Technology
Capacitance intelligence (PCAP)
Connectivity
Interfaces
VGA (HD-15) ¦ HDMI ¦ Audio line-out ¦ USB (touchscreen only)
Mechanical
VESA Mounting Interface
75 x 75 mm
Miscellaneous
Features
Wall mountable, pole mountable
MTBF
15,000 hour(s)
Compliant Standards
UL, VCCI, CB, CCC, FCC, IP65 front
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 95% (non-condensing)
