Name: 8FE + 2G COMBO MANAGED SWITCH W/WIDE TEMP
Brand: ADVANTECH
SKU: 1TNETNHS-031459
Price: 653.68 GBP
Availability: OutOfStock

Overview

Main features

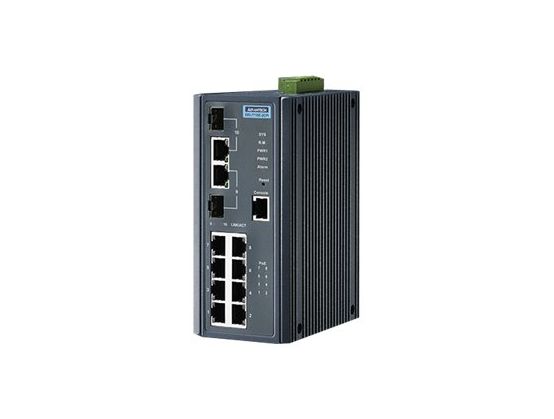

Advantech EKI-7710E-2CI-AE
Switch
Managed
8 x 10/100 + 2 x combo Gigabit SFP
DIN rail mountable, wall-mountable
DC power

Overview

EKI-7710E-2C/2CI supports 8 Fast Ethernet ports and 2 Gigabit combo ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7710E series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7710E series is equipped with X-Ring which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability.

Specification

Product Description Advantech EKI-7710E-2CI-AE - switch - 10 ports - Managed

Device Type Switch - 10 ports - Managed

Subtype Gigabit Ethernet

Ports 8 x 10/100 + 2 x combo Gigabit SFP

Performance Switching fabric speed: 20 Gbps

Capacity VLAN groups: 256

MAC Address Table Size 8K entries

Jumbo Frame Support 9216 bytes

Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2

Features Layer 2 switching, trunking, VLAN support, IGMP snooping, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), DHCP server, MLD snooping, Link Aggregation Control Protocol (LACP), DHCP client, Dynamic VLAN Support (GVRP), Class of Service (CoS), Strict Priority (SP), Generic VLAN Registration Protocol (GVRP), metal housing, 4.1MB packet buffer, VLAN Double Tagging (Q-in-Q), X-Ring Pro support, Weighted Round Robin (WRR), DSCP based CoS

Compliant Standards IEEE 802.1D, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at

Power DC 12 - 48 V

Power Redundancy Yes

Dimensions (WxDxH) 7.4 cm x 10.5 cm x 15.2 cm

Weight 1.1 kg

Manufacturer Warranty 5-year warranty

General

Device Type Switch - 10 ports - Managed

Enclosure Type DIN rail mountable, wall-mountable

Subtype Gigabit Ethernet

Ports 8 x 10/100 + 2 x combo Gigabit SFP

Performance Switching fabric speed: 20 Gbps

Capacity VLAN groups: 256

MAC Address Table Size 8K entries

Jumbo Frame Support 9216 bytes

Remote Management Protocol SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2

Features Layer 2 switching, trunking, VLAN support, IGMP snooping, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), DHCP server, MLD snooping, Link Aggregation Control Protocol (LACP), DHCP client, Dynamic VLAN Support (GVRP), Class of Service (CoS), Strict Priority (SP), Generic VLAN Registration Protocol (GVRP), metal housing, 4.1MB packet buffer, VLAN Double Tagging (Q-in-Q), X-Ring Pro support, Weighted Round Robin (WRR), DSCP based CoS

Compliant Standards IEEE 802.1D, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at

Status Indicators Port transmission speed, power, system, alarm, link/activity

Expansion / Connectivity

Interfaces 8 x 100Base-TX RJ-45 ¦ 2 x 1000Base-X SFP ¦ 2 x 1000Base-T RJ-45 ¦ 1 x serial (RS-232) RJ-45 management

Power

Power Redundancy Yes

Voltage Required DC 12 - 48 V

Power Consumption Operational 12.1 Watt

Features Redundant Power System (RPS) connector, Power Polarity Reverse Protect

Miscellaneous

MTBF 858,835 hours

Compliant Standards FCC Class A certified, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 50121-4, IP30, NEMA TS-2

Dimensions & Weight

Width 7.4 cm

Depth 10.5 cm

Height 15.2 cm

Weight 1.1 kg

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature -40 °C

Max Operating Temperature 75 °C

Humidity Range Operating 10 - 95% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 85 °C

Humidity Range Storage 10 - 95% (non-condensing)
