Name: L3 GE 48P W/ 4 X SFP+ 2 HS PSU 990-003848-00 IN
Brand: ALLIED TELESIS
SKU: 1TNETNHS-029345
Price: 4055.3 GBP
Availability: OutOfStock

Overview

Main features

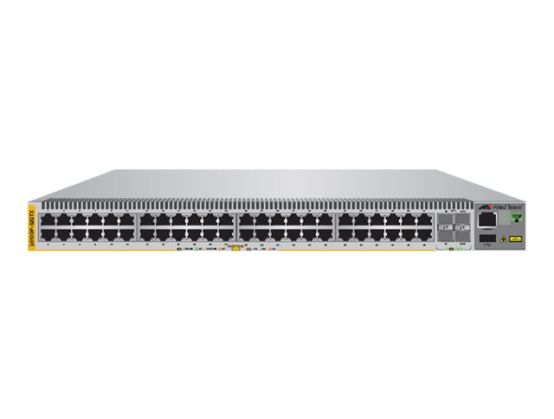

Allied Telesis AT x510DP-52GTX
Switch
L2+
Managed
48 x 10/100/1000 + 2 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ + 2 x 10 Gigabit SFP+
front to back airflow
rack-mountable

Overview

The Allied Telesis AT-x510DP-52GTX is the ideal Data Center Top-of-Rack (ToR) switch, featuring 48 x 10/100/1000T ports and 4 x 10G SFP+ uplink ports for high speed server and storage connectivity. Dual hot-swappable load-sharing AC or DC power supplies with reverse airflow guarantee maximum uptime. Allied Telesis VCStack allows multiple units to be connected as a single virtual chassis, creating a highly resilient solution with no single point of failure that can even be distributed over long distances. The AT-x510DP-52GTX is the perfect choice for critical data center applications requiring uninterrupted service.

Specification

Product Description Allied Telesis AT x510DP-52GTX - switch - 48 ports - Managed - rack-mountable

Device Type Switch - 48 ports - L2+ - Managed - stackable

Enclosure Type Front to back airflow rack-mountable 1U

Subtype Gigabit Ethernet

Ports 48 x 10/100/1000 + 2 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ + 2 x 10 Gigabit SFP+

Performance Switching capacity: 228 Gbps ¦ Forwarding performance: 130.9 Mpps ¦ Stacking bandwidth: 40 Gbps

Capacity MAC addresses: up to 16000 ¦ Virtual interfaces (VLANs): 4094 ¦ IPv4 routes: up to 2000 ¦ IPv6 routes: up to 1000

MAC Address Table Size 16K entries

Jumbo Frame Support 13KB

Routing Protocol IGMPv2, IGMPv3, ECMP, policy-based routing (PBR), VRRPv3

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI

Features Flow control, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, traffic shaping, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, MAC address filtering, IPv6 support, firmware upgradable, WRED, sFlow, RSTP support, VLAN Stacking, MSTP support, DHCP snooping, TFTP support, ACL support, QoS, NAC, Jumbo Frames support, DAI, PVST+, ECMP, STP Root Guard, LACP support, LLDP support, SNMP trap, DNS relay, Energy Efficient Ethernet, GVRP, loop prevention, enviromental monitoring, Ingress Layer 2 MAC ACLs, tagged VLAN, 4MB packet buffer

Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX

Power Redundancy Optional

Dimensions (WxDxH) 44 cm x 48 cm x 4.4 cm

Weight 5.7 kg

System Requirements AlliedWare Plus

Manufacturer Warranty 1-year warranty

General

Device Type Switch - 48 ports - L2+ - Managed - stackable

Enclosure Type Front to back airflow rack-mountable 1U

Subtype Gigabit Ethernet

Ports 48 x 10/100/1000 + 2 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ + 2 x 10 Gigabit SFP+

Performance Switching capacity: 228 Gbps ¦ Forwarding performance: 130.9 Mpps ¦ Stacking bandwidth: 40 Gbps

Capacity MAC addresses: up to 16000 ¦ Virtual interfaces (VLANs): 4094 ¦ IPv4 routes: up to 2000 ¦ IPv6 routes: up to 1000

MAC Address Table Size 16K entries

Jumbo Frame Support 13KB

Max Units In A Stack 4

Routing Protocol IGMPv2, IGMPv3, ECMP, policy-based routing (PBR), VRRPv3

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI

Encryption Algorithm DES, Triple DES, RSA, MD5, SHA-1, TLS 1.0, SSL 3.0, SSL 2.0, PEAP, TTLS

Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)

Features Flow control, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, traffic shaping, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, MAC address filtering, IPv6 support, firmware upgradable, WRED, sFlow, RSTP support, VLAN Stacking, MSTP support, DHCP snooping, TFTP support, ACL support, QoS, NAC, Jumbo Frames support, DAI, PVST+, ECMP, STP Root Guard, LACP support, LLDP support, SNMP trap, DNS relay, Energy Efficient Ethernet, GVRP, loop prevention, enviromental monitoring, Ingress Layer 2 MAC ACLs, tagged VLAN, 4MB packet buffer

Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX

RAM 512 MB DDR SDRAM

Flash Memory 64 MB

Built-in Devices Led panel

Status Indicators Fail, status

Expansion / Connectivity

Interfaces 48 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 management ¦ 2 x 10GBase-X SFP+ ¦ 2 x network stack device SFP+ ¦ 1 x USB Type A

Power

Power Device Internal power supply (not installed) - hot-plug

Max Supported Qty 2

Power Redundancy Optional

Power Redundancy Scheme 1+1 (with optional power supply)

Miscellaneous

Compliant Standards FCC Class A certified, UL, TUV, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A

Software / System Requirements

OS Required AlliedWare Plus

Dimensions & Weight

Width 44 cm

Depth 48 cm

Height 4.4 cm

Weight 5.7 kg

Manufacturer Warranty

Service & Support Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 50 °C

Humidity Range Operating 5 - 90% (non-condensing)

Min Storage Temperature -25 °C

Max Storage Temperature 70 °C

Humidity Range Storage 5 - 95% (non-condensing)
