Name: L3 STACKABLE SWITCH 24X 10/100/ 1000-T 2X 1/2.5/5/10G-T 2X SFP+
Brand: ALLIED TELESIS
SKU: 1TWARWAR-244428
Price: 1356.72 GBP
Availability: OutOfStock

Overview

Main features

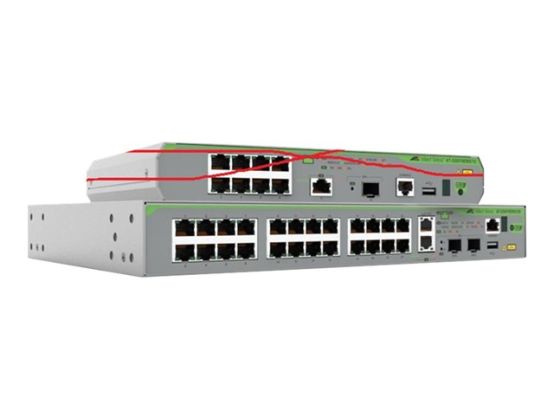

Allied Telesis CentreCOM AT-GS970EMX/28
Switch
L3 Lite
Managed
24 x 10/100/1000 + 2 x 1/2.5/5/10GBase-T + 2 x 1 Gigabit / 10 Gigabit SFP+
desktop, rack-mountable

Overview

Allied Telesis CentreCOM AT-GS970EMX/28 - switch - 28 ports - Managed - rack-mountable

Specification

Product Description Allied Telesis CentreCOM AT-GS970EMX/28 - switch - 28 ports - Managed - rack-mountable

Device Type Switch - 28 ports - L3 Lite - Managed - stackable

Enclosure Type Rack-mountable

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 + 2 x 1/2.5/5/10GBase-T + 2 x 1 Gigabit / 10 Gigabit SFP+

Performance Switching fabric bandwidth: 128 Gbps ¦ Forwarding performance: 95.2 Mpps

MAC Address Table Size 16K entries

Jumbo Frame Support 12KB

Routing Protocol RIP, RIP-2, OSPF, OSPFv2, static IPv4 routing, static IPv6 routing, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSDP, PIM-SM, PIM-DM

Remote Management Protocol SNMP 1, SNMP 2c, SNMP 3, Telnet, SSH, SSH-2, DHCP, CLI, RMON 1, RMON 2, RMON 3, RMON 9, HTTP, HTTPS, SMTP, TFTP

Features Fanless, EPSRing, Active Fiber Monitoring, ACL support, AMF, MSDP, BIST, Cable fault locator (TDR), UDLD, QoS, PVST+, BPDU forward, MAC address filtering, Private VLAN, BPDU protection, SCP, GVRP, NAC, Guest VLAN, SFTP client, AAA, UDP, ARP support, ICMP, DNS client, TFTP support, DHCPv4 client, DHCPv6 client, VoIP support, OCSP support, VLAN support, IGMP snooping, DiffServ support, DHCP snooping, MLD snooping, DAI, STP Root Guard, SNMP trap, MIB, MAC address lockout, port isolation, IP source guard, DDM, NTP, IGMP querier, Voice VLAN, LLDP-MED, VLAN Tagging, storm protection, VCStack, BPDU

Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1v, IEEE 802.3ac

Dimensions (WxDxH) 34.1 cm x 23.1 cm x 4.4 cm

Localisation Europe

Manufacturer Warranty 5-year warranty

General

Device Type Switch - 28 ports - L3 Lite - Managed - stackable

Enclosure Type Desktop, rack-mountable

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 + 2 x 1/2.5/5/10GBase-T + 2 x 1 Gigabit / 10 Gigabit SFP+

Performance Switching fabric bandwidth: 128 Gbps ¦ Forwarding performance: 95.2 Mpps

MAC Address Table Size 16K entries

Jumbo Frame Support 12KB

Max Units In A Stack 4

Routing Protocol RIP, RIP-2, OSPF, OSPFv2, static IPv4 routing, static IPv6 routing, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSDP, PIM-SM, PIM-DM

Remote Management Protocol SNMP 1, SNMP 2c, SNMP 3, Telnet, SSH, SSH-2, DHCP, CLI, RMON 1, RMON 2, RMON 3, RMON 9, HTTP, HTTPS, SMTP, TFTP

Encryption Algorithm Triple DES, CCM, CMAC, GCM, XTS, DSA, ECDSA, RSA, SHA-1, SHA-2, DRBG, HMAC, DES, RNG, MD5, FIPS 180-1, FIPS 186, FIPS 46-3, SSL 3.0, SSL 2.0, 128-bit AES, 192-bit AES, 256-bit AES

Authentication Method RADIUS, Secure Shell (SSH), TACACS+, Secure Shell v.2 (SSH2)

Features Fanless, EPSRing, Active Fiber Monitoring, ACL support, AMF, MSDP, BIST, Cable fault locator (TDR), UDLD, QoS, PVST+, BPDU forward, MAC address filtering, Private VLAN, BPDU protection, SCP, GVRP, NAC, Guest VLAN, SFTP client, AAA, UDP, ARP support, ICMP, DNS client, TFTP support, DHCPv4 client, DHCPv6 client, VoIP support, OCSP support, VLAN support, IGMP snooping, DiffServ support, DHCP snooping, MLD snooping, DAI, STP Root Guard, SNMP trap, MIB, MAC address lockout, port isolation, IP source guard, DDM, NTP, IGMP querier, Voice VLAN, LLDP-MED, VLAN Tagging, storm protection, VCStack, BPDU

Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1v, IEEE 802.3ac

RAM 1 GB DDR3 SDRAM

Flash Memory 256 MB

Status Indicators Status

Expansion / Connectivity

Interfaces 24 x 1000Base-T RJ-45 ¦ 2 x 1/2.5/5/10GBase-T uplink ¦ 2 x 1/10GBase-X SFP+

Power

Power Device Internal power supply

Miscellaneous

Compliant Standards EN 55032 Class A, FCC Part 15 B Class A, ICES-003:2016 issue 6 Class A, EN 55032:2012+AC:2013 Class A, CISPR 32:2012 Class A, AS/NZS CISPR32:2013 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024:2010, EN 55035:2017, IEC/EN/UL 62368-1, IEC/EN 60825-1, EAC, NOM, UKCA, China RoHS, EU RoHS

Localisation Europe

Software / System Requirements

Software Included Alliedware Plus

Dimensions & Weight

Width 34.1 cm

Depth 23.1 cm

Height 4.4 cm

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 50 °C

Humidity Range Operating 5 - 95% (non-condensing)

Min Storage Temperature -20 °C

Max Storage Temperature 70 °C

Humidity Range Storage 5 - 95% (non-condensing)
