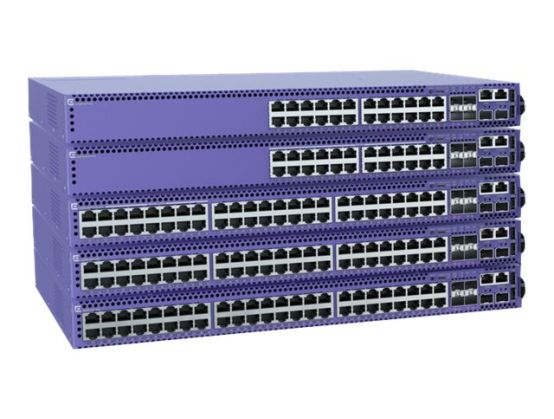

Extreme Networks ExtremeSwitching 5420M - switch - 24 ports - Managed - rack-mountable
Manufacture#: 5420M-24W-4YE
£4033 .38
£4840.06 inc VAT
Checking delivery…
Product details
Switch
L3
Managed
24 x 10/100/1000 (PoE++) + 4 x 1/10/25 Gigabit SFP28 + 2 x SFP-DD (stackable)
Payment options available at checkout
Main features
Extreme Networks ExtremeSwitching 5420M
Switch
L3
Managed
24 x 10/100/1000 (PoE++) + 4 x 1/10/25 Gigabit SFP28 + 2 x SFP-DD (stackable)
rack-mountable
PoE++ (1440 W)
Overview
Extreme Networks ExtremeSwitching 5420M - switch - 24 ports - Managed - rack-mountable
Product Description
Extreme Networks ExtremeSwitching 5420M - switch - 24 ports - Managed - rack-mountable
Device Type
Switch - 24 ports - L3 - Managed
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE++) + 4 x 1/10/25 Gigabit SFP28 + 2 x SFP-DD (stackable)
Power Over Ethernet (PoE)
PoE++
PoE Budget
1440 W
Performance
Aggregate bandwidth: 328 Gbps ¦ Frame rate: 244 Mpps
MAC Address Table Size
64K entries
Remote Management Protocol
CLI
Features
Auto-sensing per device, half duplex mode, full duplex mode, MACsec support
Compliant Standards
IEEE 802.1ae, IEEE 802.3at, IEEE 802.3bt
Power Redundancy
Optional
Dimensions (WxDxH)
44.1 cm x 33 cm x 4.4 cm
Weight
4.4 kg
General
Device Type
Switch - 24 ports - L3 - Managed
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE++) + 4 x 1/10/25 Gigabit SFP28 + 2 x SFP-DD (stackable)
Power Over Ethernet (PoE)
PoE++
PoE Budget
1440 W
Performance
Aggregate bandwidth: 328 Gbps ¦ Frame rate: 244 Mpps
MAC Address Table Size
64K entries
Max Units In A Stack
8
Remote Management Protocol
CLI
Encryption Algorithm
128-bit AES, 256-bit AES
Features
Auto-sensing per device, half duplex mode, full duplex mode, MACsec support
Compliant Standards
IEEE 802.1ae, IEEE 802.3at, IEEE 802.3bt
Expansion / Connectivity
Interfaces
24 x 10/100/1000 Base-T RJ-45 PoE++ - 90 W ¦ 4 x 1/10/25GBase-X SFP28 ¦ 2 x network stack device SFP-DD ¦ 1 x serial (console) RJ-45 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x USB ¦ 1 x console (micro-USB)
Power
Power Device
Internal power supply
Max Supported Qty
2
Power Redundancy
Optional
Power Consumption Stand by
43 Watt
Software / System Requirements
Software Included
Base Software License, ExtremeCloud IQ Pilot (1 year)
Dimensions & Weight
Width
44.1 cm
Depth
33 cm
Height
4.4 cm
Weight
4.4 kg
