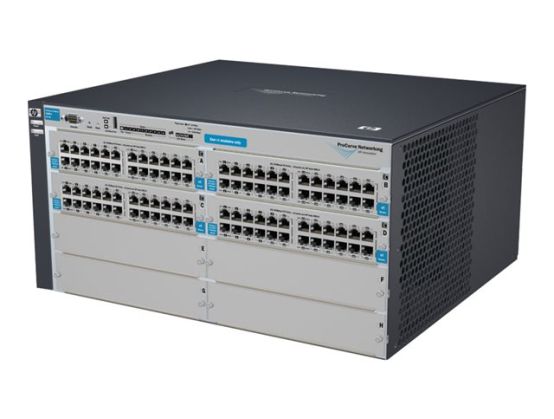

HP procurve switch 4208vl-96
£2907 .27
£3488.72 inc VAT
Checking delivery…
Product details
Switch
Managed
96 x 10/100
rack-mountable
Payment options available at checkout
Main features
HPE 4208-96 vl Switch
Switch
Managed
96 x 10/100
rack-mountable
Overview
The HP 4200 vl Switch Series provides cost-effective Layer 2 modular switching for enterprise edge deployments. This flexible modular switch supports 10/100, Gigabit Ethernet and 10GbE connectivity and basic IP routing with up to 16 static routes. An optional redundant power supply can be added for uninterrupted power. The HP 4200 vl Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software Platform.
Product Description
HPE 4208-96 vl Switch - switch - 96 ports - Managed - rack-mountable
Device Type
Switch - 96 ports - Managed
Enclosure Type
Rack-mountable 5U
Subtype
Fast Ethernet
Ports
96 x 10/100
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Features
Routing, VLAN support, auto-uplink (auto MDI/MDI-X), manageable
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power
AC 120/230 V (50/60 Hz)
Power Redundancy
Yes
Dimensions (WxDxH)
44.2 cm x 38.9 cm x 22.2 cm
Weight
14.7 kg
General
Device Type
Switch - 96 ports - Managed
Enclosure Type
Rack-mountable 5U
Subtype
Fast Ethernet
Ports
96 x 10/100
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c
Encryption Algorithm
SSL
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
Routing, VLAN support, auto-uplink (auto MDI/MDI-X), manageable
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Processor
1 x Motorola MPC8245: 330 MHz
RAM
64 MB SDRAM
Flash Memory
24 MB Flash
Expansion / Connectivity
Interfaces
1 x serial (RS-232) DB-9 management ¦ 96 x 100Base-TX RJ-45
Expansion Slots
8 (total) / 4 (free) x Expansion Slot
Installed Modules Qty (Max)
4 (installed) / 8 (max)
Power
Power Device
Internal power supply
Power Redundancy
Yes
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
630 Watt
Miscellaneous
Rack Mounting Kit
Included
Compliant Standards
FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, CSA 22.2 No. 950, UL 60950
Dimensions & Weight
Width
44.2 cm
Depth
38.9 cm
Height
22.2 cm
Weight
14.7 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
15 - 95%
