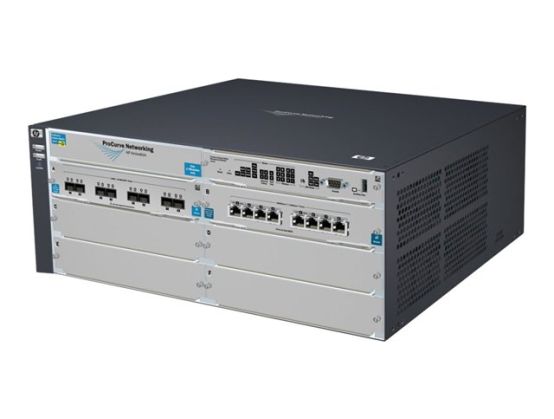

Name: HP 5406 8p10GT 8p10GE Swch and Psw
Brand: Aruba
SKU: 1TNETNHS-035186
Price: 5587.86 GBP
Availability: OutOfStock

Overview

Main features

HPE Aruba 5406
Switch
L4
Managed
8 x 10GBase-T + 8 x 10 Gigabit SFP+
rack-mountable
with HP 5400 zl Switch Premium License

Overview

The HPE 5400 zl Switch Series is a HPE Networking ASIC based modular switch designed for enterprise-edge, SMB, and branch office core deployments. This Layer 3 switch has 760 Gbps backplane and license free software with an advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, OSPF and robust QoS. Virtualization with HPE AllianceOne solutions and flexible connectivity including 1 and 10 Gigabit Ethernet and PoE+, the 5400 zl Switch Series is Software-defined Network (SDN) ready with support for OpenFlow.

Specification

Product Description HPE Aruba 5406 - switch - 8 ports - Managed - rack-mountable - with HP 5400 zl Switch Premium License

Device Type Switch - 8 ports - L4 - Managed - with HP 5400 zl Switch Premium License

Enclosure Type Rack-mountable 4U

Subtype 10 Gigabit Ethernet

Ports 8 x 10GBase-T + 8 x 10 Gigabit SFP+

Performance Routing/switching capacity: 379.2 Gbps ¦ Throughput: up to 282.1 Mpps

Capacity Routing table entries: 10000

MAC Address Table Size 64K entries

Jumbo Frame Support Yes

Routing Protocol RIP-1, RIP-2, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv6 routing

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP

Features Flow control, routing, PoE, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DiffServ support, manageable, STP support, RSTP support, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 801.1p, IEEE 802.1v, IEEE 802.3an

Power AC 120/230 V (50/60 Hz)

Power Redundancy Optional

Dimensions (WxDxH) 44.45 cm x 45.09 cm x 17.53 cm

Weight 10.68 kg

Manufacturer Warranty Limited lifetime warranty

General

Device Type Switch - 8 ports - L4 - Managed - with HP 5400 zl Switch Premium License

Enclosure Type Rack-mountable 4U

Subtype 10 Gigabit Ethernet

Ports 8 x 10GBase-T + 8 x 10 Gigabit SFP+

Performance Routing/switching capacity: 379.2 Gbps ¦ Throughput: up to 282.1 Mpps

Capacity Routing table entries: 10000

MAC Address Table Size 64K entries

Jumbo Frame Support Yes

Routing Protocol RIP-1, RIP-2, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv6 routing

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP

Encryption Algorithm SSL

Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features Flow control, routing, PoE, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DiffServ support, manageable, STP support, RSTP support, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 801.1p, IEEE 802.1v, IEEE 802.3an

Processor 1 x Freescale PowerPC 8540: 666 MHz

RAM 256 MB DDR SDRAM

Flash Memory 4 MB

Expansion / Connectivity

Interfaces 8 x 10GBase-T RJ-45 ¦ 8 x SFP+ ¦ 1 x serial (RS-232) management

Expansion Slots 6 (total) / 4 (free) x Expansion Slot ¦ 1 (total) / 1 (free) x CompactFlash Card

Installed Modules Qty (Max) 2 (installed) / 6 (max)

Power

Power Device Internal power supply - hot-plug

Installed Qty 1

Max Supported Qty 2

Power Redundancy Optional

Power Provided 1500 Watt

Voltage Required AC 120/230 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit Included

Compliant Standards FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950

Dimensions & Weight

Width 44.45 cm

Depth 45.09 cm

Height 17.53 cm

Weight 10.68 kg

Manufacturer Warranty

Service & Support Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 55 °C

Humidity Range Operating 15 - 95% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 70 °C

Humidity Range Storage 15 - 95% (non-condensing)
