Main features

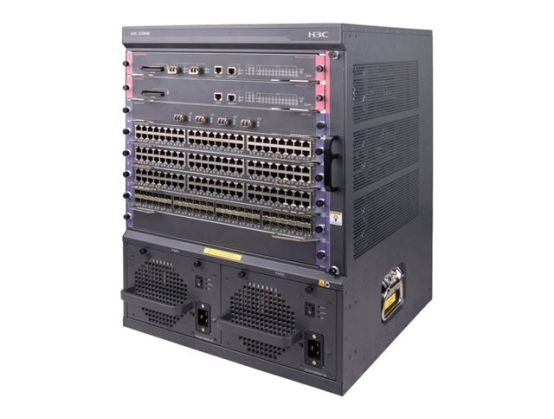

HPE FlexNetwork 7506 Chassis
Switch
L4-L7
Managed
rack-mountable

Overview

The HPE FlexNetwork 7500 Switch Series is a versatile, high-performance, modular switch designed for the evolving needs of integrated services networks. Deployed across verticals at the enterprise LAN core, aggregation layer and wiring closet edge it offers 40GbE connectivity, cost-effective wire-speed 10GbE ports, high-density PoE/PoE+, and advanced functionality with service modules. With Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) technology, the 7500 Switch can be virtualized across four chassis with a single management interface-enabling flatter, more agile networks.

Specification

Product Description HPE FlexNetwork 7506 Chassis - switch - Managed - rack-mountable

Device Type Switch - L4-L7 - Managed

Enclosure Type Rack-mountable 13U

Subtype 40 Gigabit Ethernet

Routing Protocol OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI

Features Flow control, firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping

Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

Power AC 120/230 V (50/60 Hz) - power supply not installed

Power Redundancy Yes

Dimensions (WxDxH) 43.6 cm x 42 cm x 57.5 cm

Weight 93.9 kg

General

Device Type Switch - L4-L7 - Managed

Enclosure Type Rack-mountable 13U

Subtype 40 Gigabit Ethernet

Routing Protocol OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI

Encryption Algorithm MD5, SSL, TLS

Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)

Features Flow control, firewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping

Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

Expansion / Connectivity

Interfaces 1 x RS-232C - 9 pin D-Sub (DB-9) management ¦ 1 x modem ¦ 1 x USB

Expansion Slots 8 (total) / 8 (free) x Expansion Slot

Installed Modules Qty (Max) 0 (installed) / 8 (max)

Power

Power Device Internal power supply (not installed)

Max Supported Qty 2

Power Redundancy Yes

Voltage Required AC 120/230 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit Included

Compliant Standards RoHS, UL 60950-1, IEC 60950-1, WEEE, EN 60825-1

Dimensions & Weight

Width 43.6 cm

Depth 42 cm

Height 57.5 cm

Weight 93.9 kg

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 45 °C

Humidity Range Operating 10 - 95% (non-condensing)
