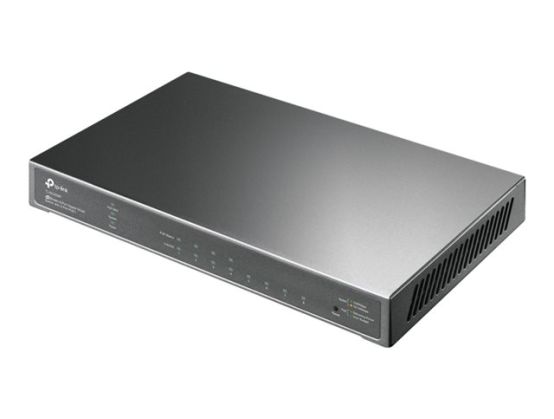

Name: TP-Link JetStream TL-SG2008P V3 - Switch - smart - 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) - desktop, wall-mountable - PoE+ (62 W)
Brand: TP-LINK
SKU: 1TNETNHS-035031
Price: 86.24 GBP
Availability: InStock

Overview

Main features

TP-Link JetStream TL-SG2008P
V1
switch
smart
4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
desktop
PoE+ (62 W)

Overview

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network - all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Specification

Product Description TP-Link JetStream TL-SG2008P - V1 - switch - 8 ports - smart

Device Type Switch - 8 ports - smart

Subtype Gigabit Ethernet

Ports 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)

Power Over Ethernet (PoE) PoE+

PoE Budget 62 W

Performance Bandwidth: 16 Gbps ¦ Packet buffer size: 4.1 Mbit

Capacity Priority queues: 8 ¦ VLAN groups: 4000

MAC Address Table Size 8K entries

Jumbo Frame Support 9KB

Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, DHCP, RSTP, RADIUS

Features Flow control, auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DHCP snooping, ACL support, QoS, MLD snooping, Cable Diagnostics Function, DLDP support, fanless, LACP support, LLDP support, DHCP relay, Port Security, MIB, GVRP, NDP, port isolation, CoS, SP, 802.1x authentication, cloud managed, DSCP support, Storm Control, IP source guard, ARP inspection, Link Aggregation, scheduler, dual image support, SDN, AAA, LLDP-MED, ZTP, BPDU Filter, WRR, loopback detection, BPDU protection

Compliant Standards IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at

Dimensions (WxDxH) 20.9 cm x 12.6 cm x 2.6 cm

System Requirements UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10

General

Device Type Switch - 8 ports - smart

Enclosure Type Desktop

Subtype Gigabit Ethernet

Ports 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)

Power Over Ethernet (PoE) PoE+

PoE Budget 62 W

Performance Bandwidth: 16 Gbps ¦ Packet buffer size: 4.1 Mbit

Capacity Priority queues: 8 ¦ VLAN groups: 4000

MAC Address Table Size 8K entries

Jumbo Frame Support 9KB

Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP

Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, DHCP, RSTP, RADIUS

Encryption Algorithm MD5, SSL, TLS 1.0, SSL 3.0, PEAP, EAP-TLS, EAP-TTLS

Authentication Method Secure Shell (SSH), RADIUS, PAP, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP), EAP-TLS, EAP-TTLS

Features Flow control, auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DHCP snooping, ACL support, QoS, MLD snooping, Cable Diagnostics Function, DLDP support, fanless, LACP support, LLDP support, DHCP relay, Port Security, MIB, GVRP, NDP, port isolation, CoS, SP, 802.1x authentication, cloud managed, DSCP support, Storm Control, IP source guard, ARP inspection, Link Aggregation, scheduler, dual image support, SDN, AAA, LLDP-MED, ZTP, BPDU Filter, WRR, loopback detection, BPDU protection

Compliant Standards IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at

Status Indicators Status

Expansion / Connectivity

Interfaces 4 x 1000Base-T RJ-45 ¦ 4 x 1000Base-T RJ-45 PoE+

Power

Power Device External power adapter

Power Provided DC 53.5 V - 1.31 A

Power Consumption Operational 79.2 Watt

Miscellaneous

Included Accessories Rubber feet

Compliant Standards FCC, RoHS

Software / System Requirements

OS Required UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10

Dimensions & Weight

Width 20.9 cm

Depth 12.6 cm

Height 2.6 cm

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 10 - 90% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 70 °C

Humidity Range Storage 5 - 90% (non-condensing)
