Allied Telesis AT-MCF2000S - network stacking module - 2 ports
Manufacture#: AT-MCF2000S
Checking delivery…
Product details
- Network stacking module
- 100Mb LAN
- 100Base-TX
- 2 ports
Payment options available at checkout
Main features
- Allied Telesis AT-MCF2000S
- Network stacking module
- 100Mb LAN
- 100Base-TX
- 2 ports
- for AT MCF2000, MCF2300
Overview

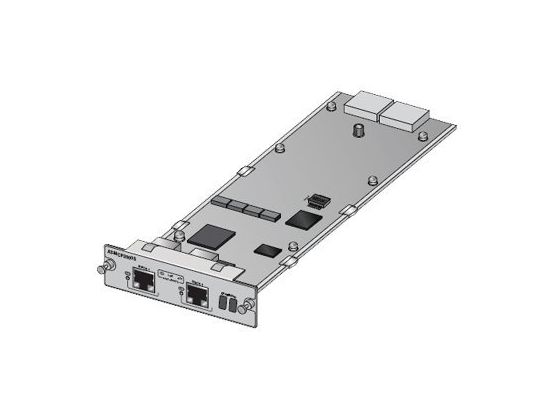

The AT-MCF2000S Module is a stacking module for the AT-MCF2000 Media Converter Series.
- Two RJ-45 Fast Ethernet connections on the front of the module, each port has an LED displays link activity
- LED display shows the chassis ID of the stacking module
- A set of DIP switches located on the top of the module permits you to set the chassis ID
Product Description
Allied Telesis AT-MCF2000S - network stacking module - 2 ports
Device Type
Network stacking module
Form Factor
Plug-in module
Dimensions (WxDxH)
9.7 cm x 20.8 cm x 3.1 cm
Weight
295 g
Ports Qty
2 ports
Cabling Type
Ethernet 10Base-T, Ethernet 100Base-TX
Data Link Protocol
10Mb LAN, 100Mb LAN
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Manufacturer Warranty
1-year warranty
Designed For
AT MCF2000 Multi-Channel Modular Media Chassis, MCF2300 Multi-Channel Modular Media Chassis
General
Device Type
Network stacking module - 2 ports
Form Factor
Plug-in module
Networking
Connectivity Technology
Wired
Cabling Type
Ethernet 10Base-T, Ethernet 100Base-TX
Data Link Protocol
Ethernet, Fast Ethernet
Features
Full duplex capability
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Expansion / Connectivity
Interfaces
2 x network stack device - Ethernet 10Base-T/100Base-TX - RJ-45
Compatible Slots
1 x Expansion Slot
Miscellaneous
Compliant Standards
FCC Class A certified, C-Tick, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950-1, EN 60950-1
Dimensions & Weight
Width
9.7 cm
Depth
20.8 cm
Height
3.1 cm
Weight
295 g
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 90%
Compatibility Information
Designed For
Allied Telesis AT MCF2000 Multi-Channel Modular Media Chassis, MCF2300 Multi-Channel Modular Media Chassis
