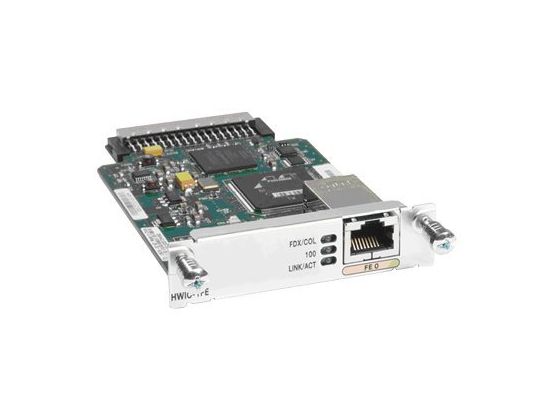

Cisco High-Speed - expansion module - HWIC - 10/100 Ethernet

Name: Cisco High-Speed - expansion module - HWIC - 10/100 Ethernet
Brand: CISCO
SKU: 1TNETNIC-004951
Price: 356 GBP
Availability: OutOfStock

SKU

1TNETNIC-004951

Manufacture#: HWIC-1FE-RF

£296.67

£356.00 inc VAT

Checking delivery…

Product details

Expansion module
HWIC
10/100 Ethernet
refurbished

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Cisco High-Speed
Expansion module
HWIC
10/100 Ethernet
refurbished
for Cisco 1841, 1921 4-pair, 1921 ADSL2+, 19XX, 28XX, 28XX 2-pair, 29XX, 38XX, 39XX

Overview

The Layer 3 Cisco 1-Port Fast Ethernet High-Speed WAN Interface Cards (HWICs) offer small-to-large-sized businesses and enterprise branch-office customers the option to add Layer 3 routed ports with many advanced features, including quality-of-service (QoS) and rate-limiting capabilities.

WAN access and aggregation
Legacy protocol transport
Dial access server

Legacy protocol transport Serial and synchronous/asynchronous ports are ideally suited to transport legacy traffic across a TCP/IP network, facilitating network convergence and eliminating costly separate leased lines for this traffic. Dial access server Asynchronous HWICs can connect to external dial modems to provide low-density dial access servers.

Specification

Product Description Cisco High-Speed - expansion module - HWIC - 10/100 Ethernet

Device Type Expansion module

Form Factor Plug-in module

Interface (Bus) Type HWIC

Ports 10/100 Ethernet

Dimensions (WxDxH) 7.8 cm x 12 cm x 1.9 cm

Weight 64 g

Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX

Data Link Protocol 10Mb LAN, 100Mb LAN

Data Transfer Rate 100 Mbps

Network / Transport Protocol TCP/IP, L2TP, PPPoE

Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x

Pricing Type Refurbished

Designed For Cisco 1841, 1841 2-pair, 1841 4-pair, 1841 T1, 1921, 1921 4-pair, 1921 ADSL2+, 1941, 2801, 2801 2-pair, 2801 4-pair, 2801 V3PN, 2811, 2811 2-pair, 2811 4-pair, 2811 V3PN, 2821, 2821 4-pair, 2821 V3PN, 2851, 2851 V3PN, 2901, 2911, 2921, 2951, 3825, 3825 V3PN, 3845, 3845 V3PN, 3925, 3925E, 3945, 3945E

General

Device Type Expansion module

Form Factor Plug-in module

Interface (Bus) Type HWIC

Networking

Ports 10/100 Ethernet

Connectivity Technology Wired

Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX

Data Link Protocol Ethernet, Fast Ethernet

Data Transfer Rate 100 Mbps

Network / Transport Protocol TCP/IP, L2TP, PPPoE

Status Indicators Collision status, port duplex mode, link OK, 100M device connected, link/activity

Features Auto-sensing per device, DHCP support, auto-negotiation, auto-uplink (auto MDI/MDI-X), IPv6 support

Compliant Standards IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x

Expansion / Connectivity

Interfaces 1 x 100Base-TX - RJ-45

Compatible Slots 1 x HWIC

Miscellaneous

Compliant Standards TUV GS, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC950, UL 1950, VCCI Class A ITE, EN 61000-3-3, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, FCC Part 15, ICES-003 Class A, EN 300 386

Pricing Type Refurbished

Dimensions & Weight

Width 7.8 cm

Depth 12 cm

Height 1.9 cm

Weight 64 g

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 10 - 90%

Compatibility Information

Designed For Cisco 1841, 1921, 1921 4-pair G.SHDSL bundle, 1921 ADSL2+ Annex M Bundle, 1921 ADSL2+ Bundle, 1921 SEC T1 Bundle, 1941, 1941 Mobile Wireless, 1941 Security, 1941 Security Bundle, 1941 SRE Bundle, 2801, 2801 2-pair G.SHDSL bundle, 2801 4-pair G.SHDSL bundle, 2811, 2811 2-pair G.SHDSL bundle, 2811 4-pair G.SHDSL bundle, 2811 WAN Application Acceleration Bundle, 2821, 2821 4-pair G.SHDSL bundle, 2821 Branch Office in a Box Bundle, 2821 Secure WAN Optimization Bundle, 2821 WAN Application Acceleration Bundle, 2821 WAN Optimization Bundle, 2851, 2851 Secure WAN Optimization Bundle, 2851 WAN Application Acceleration Bundle, 2851 WAN Optimization Bundle, 2901, 2901 Security Bundle, 2901 SRE Bundle, 2901 Voice Bundle, 2901 Voice Security and CUBE Bundle, 2901 Voice Security Bundle, 2911, 2911 Security Bundle, 2911 Voice Bundle, 2911 Voice Security and CUBE Bundle, 2911 Voice Security Bundle, 2921, 2921 Security Bundle, 2921 SRE Bundle, 2921 Voice Bundle, 2921 Voice Security and CUBE Bundle, 2921 Voice Security Bundle, 2951, 2951 Security Bundle, 2951 SRE Bundle, 2951 Voice Bundle, 2951 Voice Security and CUBE Bundle, 2951 Voice Security Bundle, 3825, 3825 Branch Office in a Box Bundle, 3825 Secure WAN Optimization Bundle, 3825 WAN Application Acceleration Bundle, 3825 WAN Optimization Bundle, 3845, 3845 Branch Office in a Box Bundle, 3845 WAN Application Acceleration Bundle, 3845 WAN Optimization Bundle, 3925, 3925 Security Bundle, 3925 SRE Bundle, 3925 Voice Bundle, 3925 Voice Security and CUBE Bundle, 3925 Voice Security Bundle, 3925E, 3925E Security Bundle, 3925E SRE Bundle, 3925E Voice Bundle, 3925E Voice Security and CUBE Bundle, 3925E Voice Security Bundle, 3945, 3945 Security Bundle, 3945 SRE Bundle, 3945 Voice Bundle, 3945 Voice Security and CUBE Bundle, 3945 Voice Security Bundle, 3945E, 3945E Security Bundle, 3945E SRE Bundle, 3945E Voice Bundle, 3945E Voice Security and CUBE Bundle, 3945E Voice Security Bundle
