AXIS

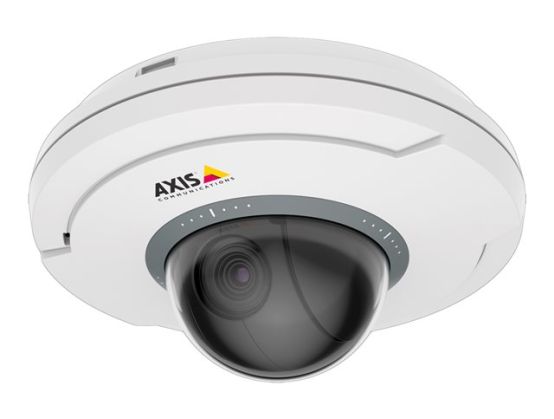

AXIS M5075-G PTZ DOME CAM 5X OPTICAL ZOOM AU

Name: AXIS M5075-G PTZ DOME CAM 5X OPTICAL ZOOM AU
Brand: AXIS
SKU: 1TSECSPD-004441
Price: 719.29 GBP
Availability: InStock

SKU

1TSECSPD-004441

Manufacture#: 02347-002

£599.41

£719.29 inc VAT

Checking delivery…

Product details

Network surveillance camera
PTZ
dome
colour (Day&Night)

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

AXIS M5075-G
Network surveillance camera
PTZ
dome
colour (Day&Night)
2 MP
1920 x 1080
1080p
motorized
audio
LAN 10/100
H.264, HEVC, H.265, MPEG-4 AVC, MPEG-4 Part 10, MPEG-H Part 2
PoE Plus Class 3

Overview

Axis M5075-G is a discreet, palm-sized PTZ camera designed to fit in anywhere. Perfect for smaller installations, it offers an affordable way to see the big picture - and all the important details.

Specification

Product Description AXIS M5075-G - network surveillance camera - dome

Device Type Network surveillance camera - pan / tilt / zoom - dome

Audio Yes: built-in microphone

Camera Mount Type Ceiling mount

Dimensions (WxDxH) 13 cm x 13 cm x 6.3 cm

Weight 380 g

Colour White, NCS S 1002-B

Connectivity Technology Wired

Camera Colour - Day&Night

Optical Zoom 5 x

Max Resolution 1920 x 1080

Frame Rate (max) 60 frames per second

Motion Detection Yes

Video Modes 1080p

Optical Sensor Type PS RGB CMOS - 1/2.8" - 2 MP

Minimum Illumination 0.1 lux - colour - F1.4 - 30 IRE

Focal Length Control Motorized zoom

Focal Length 2.2 mm - 11 mm

Focus Adjustment Automatic

Lens Iris F/1.4-2.5

Panning Range (degree) -179 to +179

Tilting Range (degree) 90

Interfaces Ethernet 10Base-T/100Base-TX

Voltage PoE Plus Class 3

Features Sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, e-mail alerts, 256 preset positions, NAS-Ready, multi-streaming, Video Motion Detection Technology, notification picture to E-mail, active tampering alarm, Removed Object Detection, notification picture to FTP, password protection, distortion correction function, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, scream detection, image overlay, exposure control, plastic housing, Pixel Counter Support, digest authentication, IP address filtering, exposure zone, signed firmware, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), text overlay, polygon privacy mask, 180° image rotation, ONVIF (Profile M) support

Manufacturer Warranty 5-year warranty

Environmental Parameters (operating) 0 °C - 45 °C; 10 - 90% RH (non-condensing) relative humidity

General

Device Type Network surveillance camera

Audio Support Yes: built-in microphone

Audio Formats PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS

Form Factor Dome

Camera Mount Type Ceiling mount

Connectivity Technology Wired

Width 13 cm

Depth 13 cm

Height 6.3 cm

Weight 380 g

Localisation United Kingdom, European Union

Camera

Type Colour - Day&Night - pan / tilt / zoom

Digital Video Format H.264, HEVC, H.265, MPEG-4 AVC, MPEG-4 Part 10, MPEG-H Part 2

Max Digital Video Resolution 1920 x 1080

Motion Detection Yes

Video Modes 1080p

Digital Zoom 12

Exposure Range 1 sec - 1/17000 sec

Minimum Illumination 0.1 lux - colour - F1.4 - 30 IRE

Digital Video Capture Resolution 1920 x 1080, 320 x 180

Frame Rate (max) 60 frames per second

RAM 1 GB

Flash Memory 512 MB

Image Sensor

Type 2 MP PS RGB CMOS 1/2.8"

Lens Construction

Type Motorized zoom

Optical Zoom 5 x

Focal Length 2.2 mm - 11 mm

Lens Iris F/1.4-2.5

Focus Adjustment Automatic

Horizontal Field of View (degree) 14 - 71

Vertical Field of View (degree) 8 - 40

Panning

Range (degree) -179 to +179

Speed (degree/sec) Up to 100

Tilting

Range (degree) 90

Speed (degree/sec) Up to 100

Interfaces

Network Interface Ethernet 10Base-T/100Base-TX

Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, EAP, SFTP, LLDP, MQTT

Expansion / Connectivity

Ports LAN/power - RJ-45

Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Included Accessories Mounting kit

Compliant Standards EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, FCC Part 15 B Class A, IP51, VCCI Class A, IEC EN60529, KN35, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEEE 802.3af, IEEE 802.3at, IEC/EN/UL 62368-1

Colour White, NCS S 1002-B

Power

Power Requirements PoE Plus Class 3

Power Device 4.4 Watt

Software / System Requirements

Software Included Windows decoder 1-user licence, AXIS Video Motion Detection

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 45 °C

Relative Humidity (operating) 10 - 90% RH (non-condensing)
