AXIS

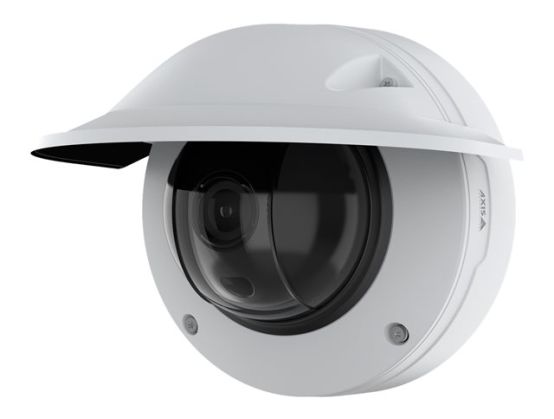

AXIS Q3538-LVE DOME CAMERA ADV.FIXED DOME CAMERA W/DLPU

Name: AXIS Q3538-LVE DOME CAMERA ADV.FIXED DOME CAMERA W/DLPU
Brand: AXIS
SKU: 1TSECSPD-003893
Price: 1660.26 GBP
Availability: InStock

SKU

1TSECSPD-003893

Manufacture#: 02225-001

£1383.55

£1660.26 inc VAT

Checking delivery…

Product details

Network surveillance camera
dome
vandal / weatherproof
colour (Day&Night)

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

AXIS Q3538-LVE
Network surveillance camera
dome
vandal / weatherproof
colour (Day&Night)
3840 x 2160
4K
auto iris
vari-focal
audio
GbE
MJPEG, H.264, MPEG-4 AVC
DC 10
28 V / PoE Plus Class 4

Overview

Based on the latest Axis system-on-chip (SoC), AXIS Q3538-LVE offers support for advanced analytics based on deep learning on the edge. This robust camera can withstand the harshest weather conditions and the most powerful impacts.

Specification

Product Description AXIS Q3538-LVE - network surveillance camera - dome

Device Type Network surveillance camera - fixed - dome - vandal / weatherproof

Audio Yes: two-way audio capability

Dimensions (WxDxH) 18.4 cm x 18.4 cm x 12.4 cm

Weight 2.1 kg

Colour White

Connectivity Technology Wired

Camera Colour - Day&Night

Optical Zoom 2 x

Max Resolution 3840 x 2160

Frame Rate (max) 60 frames per second

Motion Detection Yes

Video Modes 4K

Optical Sensor Type RGB CMOS - 1/1.2"

Minimum Illumination 0.07 lux - colour - F1.5 - 50 IRE ¦ 0 lux - B&W - F1.5 - 50 IRE

Focal Length Control Vari-focal

Focal Length 6.2 mm - 12.9 mm

Lens Iris F/1.6-2.9 - auto iris (P-Iris)

Panning Range (degree) 180

Tilting Range (degree) -43 to +80

Interfaces Ethernet 10Base-T/100Base-TX/1000Base-T

Voltage DC 10 - 28 V / PoE Plus Class 4

Features Sharpness control, white balance, colour control, progressive scanning, brightness control, contrast control, image mirror, Privacy Mask Function, Lightfinder technology, active tampering alarm, digital PTZ function, Event Notification, password protection, IR Corrected lens, Audio Detection, OptimizedIR, Zipstream technology, ONVIF (Profile T) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Lightfinder 2.0 technology, IP address filtering, electronic image stabilisation, exposure zone, ONVIF (Profile M) support, ONVIF (Profile S) support

Manufacturer Warranty 5-year warranty

Environmental Parameters (operating) -50 °C - 60 °C; 10 - 100% relative humidity

General

Device Type Network surveillance camera

Audio Support Yes: two-way audio capability

Audio Formats PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS

Form Factor Dome

Connectivity Technology Wired

Width 18.4 cm

Depth 18.4 cm

Height 12.4 cm

Weight 2.1 kg

Camera

Type Colour - Day&Night - fixed - vandal / weatherproof

Digital Video Format MJPEG, H.264, MPEG-4 AVC

Max Digital Video Resolution 3840 x 2160

Motion Detection Yes

Video Modes 4K

Exposure Range 1 sec - 1/66500 sec

Minimum Illumination 0.07 lux - colour - F1.5 - 50 IRE ¦ 0 lux - B&W - F1.5 - 50 IRE

Infrared LEDs Yes

Infrared Distance 40 m

Frame Rate (max) 60 frames per second

RAM 2 GB

Flash Memory 8 GB

Image Sensor

Type RGB CMOS 1/1.2"

Lens Construction

Type Vari-focal

Optical Zoom 2 x

Focal Length 6.2 mm - 12.9 mm

Lens Iris F/1.6-2.9 auto iris (P-Iris)

Horizontal Field of View (degree) 49 - 103

Vertical Field of View (degree) 28 - 56

Panning

Range (degree) 180

Tilting

Range (degree) -43 to +80

Interfaces

Network Interface Ethernet 10Base-T/100Base-TX/1000Base-T

Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP, LLDP

Expansion / Connectivity

Ports LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ Audio line out - 3.5 mm jack

Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Included Accessories Cable gaskets, I/O and DC connectors, Resistorx L-key, drill hole template, mounting bracket

Compliant Standards EN55024, ICES-003 Class A, IEC 60068-2-27, IEC 60068-2-6, IP67, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, IK10+, IEC EN60529, KN35, IEC/EN 61000-6-1, IEC/EN 61000-6-2, NEMA250 Type 4X, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, IEC/EN 62471, ISO 20653, IEC/EN 62262, IEC/EN/UL 62368-1, AS/NZS CISPR22 Class A, IEEE 802.1x, IP6K9K

Colour White

Power

Power Requirements DC 10 - 28 V / PoE Plus Class 4

Power Device 9 Watt

Software / System Requirements

Software Included Windows decoder 1-user licence

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature -50 °C

Max Operating Temperature 60 °C

Relative Humidity (operating) 10 - 100%
