General
Device Type

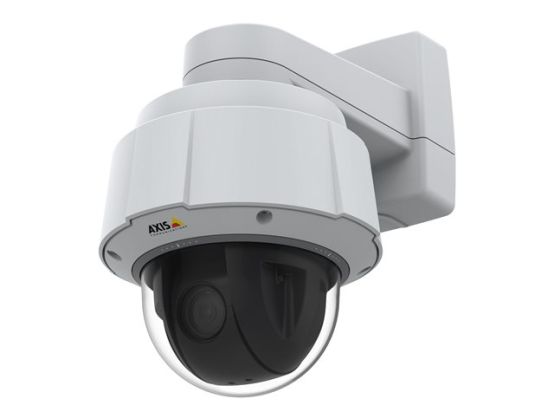

Network surveillance camera
Connectivity Technology
Wired
Width
23.2 cm
Depth
23.2 cm
Height
26.9 cm
Weight
3.75 kg
Localisation
Europe
Camera
Type
Colour - Day&Night - pan / tilt / zoom - outdoor
Digital Video Format
MPEG-4, MJPEG, H.264
Max Digital Video Resolution
1920 x 1080
Motion Detection
Yes
Video Modes
1080p
Digital Zoom
12
Exposure Range
1/3 sec - 1/11000 sec
Minimum Illumination
0.1 lux - colour - F1.6 - 30 IRE ¦ 0.15 lux - colour - F1.6 - 50 IRE ¦ 0.002 lux - B&W - F1.6 - 30 IRE ¦ 0.003 lux - B&W - F1.6 - 50 IRE
Video Capture
1920 x 1080
Frame Rate (max)
50 frames per second
RAM
1 GB
Flash Memory
512 MB
Features
Backlight Compensation (BLC), sharpness control, digital image freeze, white balance, colour control, progressive scanning, brightness control, Wide Dynamic Range (WDR), AXIS Video Hosting System (AVHS), infrared cut filter, Electronic Image Stabilizer (EIS), 3D Privacy Mask Function, Video Motion Detection Technology, password protection, e-Flip, Defog, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, TPM 2.0 module, ONVIF (Profile T) support, Lightfinder 2.0 technology, autotracking 2
Image Sensor
Type
CMOS 1/2.8"
Lens Construction
Optical Zoom
40 x
Focal Length
4.25 mm - 170 mm
Lens Iris
F/1.6-4.95 auto iris
Focus Adjustment
Automatic
Horizontal Field of View (degree)
2 - 65.1
Vertical Field of View (degree)
1.18 - 39.1
Panning
Range (degree)
360
Speed (degree/sec)
Up to 450
Tilting
Range (degree)
220
Speed (degree/sec)
Up to 450
Interfaces
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSL, QOS, CIFS
Expansion / Connectivity
Ports
LAN/power - RJ-45
Supported Memory Cards
SD Memory Card, SDXC Memory Card, SDHC Memory Card
Miscellaneous
Included Accessories
Sunshield, RJ45 push-pull connector, AXIS High PoE Midspan (1 port)
Compliant Standards
CISPR 22 Class A, cUL, EN 61000-3-2, GS, EN 61000-3-3, EN55024, IEC 60529 IP66, CB, EN 61000-6-1, FIPS 140-2 Level 2, ICES-003 Class A, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, IP67, FCC Part 15 B Class A, KCC Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, ISO 4892-2, IEC 62262 IK10, IEC 60068-2-60, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, AS/NZS CISPR 22, IEC 60950-22, EN 60950-22, UL 60950-22, EN 55022 Class A, KN32, KN35, NEMA250 Type 4X, IEC 60721-4-3
Power
Power Requirements
High PoE
Power Device
Power injector - external AC 120/230 V 51 Watt
Software / System Requirements
Software Included
AXIS Fence Guard, AXIS Loitering Guard, AXIS Motion Guard
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
-50 °C
Max Operating Temperature
50 °C
