Product Description

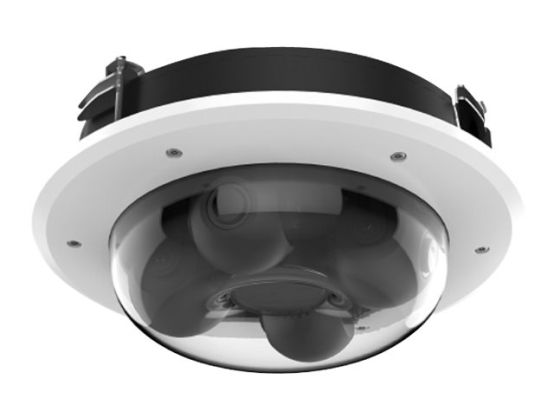

Hikvision Flexible PanoVu Network Camera DS-2CD6D54G1-ZS/RC - network surveillance camera - dome
Device Type
Network surveillance camera - fixed - dome - vandal / weatherproof
Audio
Yes
Dimensions (WxDxH)
25.5 cm x 25.5 cm x 9.6 cm
Weight
2.02 kg
Connectivity Technology
Wired
Camera
Colour - Day&Night - NTSC, PAL
Optical Zoom
2.9 x
Max Resolution
2560 x 1920
Frame Rate (max)
25 frames per second
Motion Detection
Yes
Video Modes
720p, 1080p
Optical Sensor Type
PS CMOS - 4 x 1/2.7"
Minimum Illumination
0.0125 lux - colour - F1.9 - AGC on ¦ 0.0025 lux - B&W - F1.9 - AGC on
Focal Length Control
Vari-focal
Focal Length
2.8 mm - 8 mm
Lens Mounting
F14 mount
Focus Adjustment
Automatic, manual
Lens Iris
F/1.9
Panning Range (degree)
-60 to +60
Tilting Range (degree)
10 to 90
Interfaces
Ethernet 10Base-T/100Base-TX/1000Base-T
Control Interface
RS-485, RS-232
Voltage
DC 12 V / AC 24 V / PoE
Features
Backlight Compensation (BLC), sharpness control, digital image rotation, white balance, progressive scanning, saturation control, brightness control, contrast control, infrared cut filter, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Scene Change Detection, NAS-Ready, Electronic Image Stabilizer (EIS), notification picture to E-mail, notification picture to FTP, reset button, password protection, triple video stream, Region of Interest (ROI), cropping function, Defog, intrusion detection, auto gain control, Defocus Detection, audio exception detection, ONVIF (Profile S) support, ONVIF (Profile G) support, object removal detection, image overlay, Line Crossing Detection, watermark, Internet Server Application Programming Interface (ISAPI), DORI coverage, unattended baggage detection, IP address filtering, 3D digital noise reduction (DNR), region exiting detection, region entrance detection, up to 20 channels simultaneous live view, environment noise filtering, ONVIF (Profile T) support, 4 lens
Environmental Parameters (operating)
-30 °C - 60 °C; 0 - 95% (non-condensing) relative humidity
