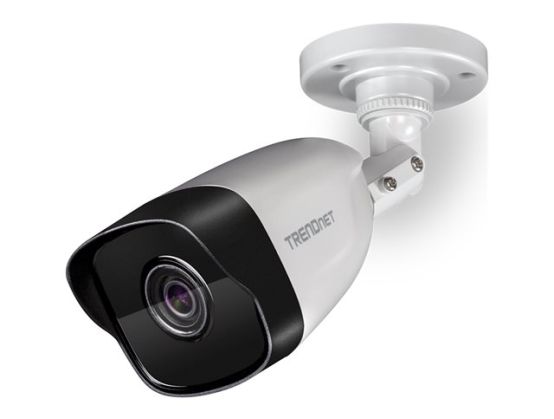

TRENDnet TV IP1328PI - network surveillance camera
Manufacture#: TV-IP1328PI
Checking delivery…
Product details
Network surveillance camera
outdoor, indoor
weatherproof
colour (Day&Night)
Payment options available at checkout
Main features
TRENDnet TV IP1328PI
Network surveillance camera
outdoor, indoor
weatherproof
colour (Day&Night)
4 MP
2560 x 1440
fixed focal
LAN 10/100
MJPEG, H.264, H.265, H.265+, H.264+
DC 12 V / PoE
Overview
TRENDnet's Indoor/Outdoor 4MP H.265 WDR PoE IR Bullet and Dome Network Cameras provide day and night surveillance with a night vision range of up to 30 m (98 feet) These compact network cameras deliver year-round surveillance, each with an IP67 weather rated housing to withstand harsh outdoor environments. Record up to 4MP HD video at 20fps in a space-saving H.265 compression format.
Product Description
TRENDnet TV IP1328PI - network surveillance camera
Device Type
Network surveillance camera - fixed - outdoor, indoor - weatherproof
Dimensions (WxDxH)
7 cm x 17.3 cm x 7 cm
Weight
280 g
Connectivity Technology
Wired
Camera
Colour - Day&Night
Max Resolution
2560 x 1440
Frame Rate (max)
30 frames per second
Motion Detection
Yes
Optical Sensor Type
CMOS - 1/3" - 4 MP
Minimum Illumination
0.01 lux ¦ 0 lux - IR
Focal Length Control
Fixed focal
Focal Length
4 mm
Lens Iris
F/1.2
Panning Range (degree)
0 to 360
Tilting Range (degree)
0 to 180
Interfaces
Ethernet 10Base-T/100Base-TX
Voltage
DC 12 V / PoE
Features
Backlight Compensation (BLC), digital noise reduction, sharpness control, digital image rotation, white balance, saturation control, brightness control, contrast control, e-mail alerts, image mirror, Wide Dynamic Range (WDR), Privacy Mask Function, tamper-detection, Smart IR, triple video stream, ONVIF (Profile S) support, ONVIF (Profile G) support, IP address filtering, 3-Axis Adjustment
Manufacturer Warranty
3-year warranty
Environmental Parameters (operating)
-30 °C - 50 °C; 0 - 95% (non-condensing) relative humidity
General
Device Type
Network surveillance camera
Connectivity Technology
Wired
Width
7 cm
Depth
17.3 cm
Height
7 cm
Weight
280 g
Camera
Type
Colour - Day&Night - fixed - outdoor, indoor - weatherproof
Digital Video Format
MJPEG, H.264, H.265, H.265+, H.264+
Max Digital Video Resolution
2560 x 1440
Motion Detection
Yes
Minimum Illumination
0.01 lux ¦ 0 lux - IR
Infrared LEDs
Yes
Infrared Distance
30 m
Video Capture
2560 x 1440 @ 20 fps ¦ 640 x 360 @ 30 fps
Features
Backlight Compensation (BLC), digital noise reduction, sharpness control, digital image rotation, white balance, saturation control, brightness control, contrast control, e-mail alerts, image mirror, Wide Dynamic Range (WDR), Privacy Mask Function, tamper-detection, Smart IR, triple video stream, ONVIF (Profile S) support, ONVIF (Profile G) support, IP address filtering, 3-Axis Adjustment
Image Sensor
Type
4 MP CMOS 1/3"
Lens Construction
Type
Fixed focal
Focal Length
4 mm
Lens Iris
F/1.2
Panning
Range (degree)
0 to 360
Tilting
Range (degree)
0 to 180
Interfaces
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
DDNS, DHCP, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, PPPoE, SMB, Samba, QOS, DSCP, CIFS, LLTD, NFS
Expansion / Connectivity
Ports
LAN/power - RJ-45
Miscellaneous
Included Accessories
Mounting kit, weather seal
Compliant Standards
UL, FCC, IP67, IEEE P802.3u, IEEE P802.3x, IEEE 802.3af, IEEE 802.3, IEEE 802.1x
Power
Power Requirements
DC 12 V / PoE - 1 A
Power Device
7 Watt
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
-30 °C
Max Operating Temperature
50 °C
Relative Humidity (operating)
0 - 95% (non-condensing)
