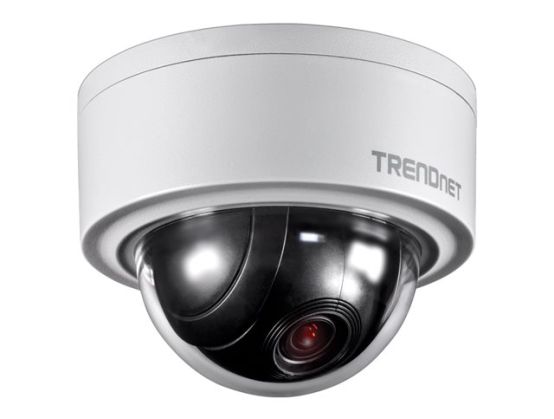

Name: TRENDnet TV IP420P - network surveillance camera
Brand: TRENDNET
SKU: 1TSECSPD-005117
Price: 427.14 GBP
Availability: OutOfStock

Overview

Main features

TRENDnet TV IP420P
Network surveillance camera
PTZ
outdoor
vandal / weatherproof
colour (Day&Night)
3 MP
2048 x 1536
auto and manual iris
motorized
audio
wired
LAN 10/100
MJPEG, H.264
DC 12 V / PoE

Overview

The indoor/outdoor 3 MP motorized PTZ Dome Network Camera with varifocal lens, model TV-IP420P, provides PTZ and powerful 3MP resolution in low-light environments. This ultra-compact camera delivers year round surveillance with an IP66 weather rated housing to withstand extreme environments.

Specification

Product Description TRENDnet TV IP420P - network surveillance camera

Device Type Network surveillance camera - pan / tilt / zoom - outdoor - vandal / weatherproof

Audio Yes: two-way audio capability

Dimensions (WxDxH) 14 cm x 14 cm x 10.7 cm

Weight 930 g

Connectivity Technology Wired

Camera Colour - Day&Night

Optical Zoom 4 x

Max Resolution 2048 x 1536

Frame Rate (max) 25 frames per second

Motion Detection Yes

Optical Sensor Type CMOS - 1/2.8" - 3 MP

Minimum Illumination 0.05 lux - colour ¦ 0.01 lux - B&W

Focal Length Control Motorized zoom

Focal Length 2.8 mm - 12 mm

Focus Adjustment Automatic, manual

Lens Iris F/1.6-2.7 - auto and manual iris

Panning Range (degree) 350

Tilting Range (degree) 90

Interfaces Ethernet 10Base-T/100Base-TX

Voltage DC 12 V / PoE

Features Backlight Compensation (BLC), date/time stamp, sharpness control, white balance, alarm function, progressive scanning, saturation control, brightness control, contrast control, image mirror, ONVIF support, Video Snapshot mode, manually schedule recording, auto patrol, Motion Detection Technology, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), 256 preset positions, surge protection, tamper-detection, notification picture to E-mail, lightning-resistant, Defog, 3D Digital Noise Reduction Technology

Manufacturer Warranty 3-year warranty

Environmental Parameters (operating) -30 °C - 65 °C; 0 - 90% (non-condensing) relative humidity

General

Device Type Network surveillance camera

Audio Support Yes: two-way audio capability

Connectivity Technology Wired

Width 14 cm

Depth 14 cm

Height 10.7 cm

Weight 930 g

Camera

Type Colour - Day&Night - pan / tilt / zoom - outdoor - vandal / weatherproof

Digital Video Format MJPEG, H.264

Max Digital Video Resolution 2048 x 1536

Motion Detection Yes

Digital Zoom 16

Exposure Range 1 sec - 1/10000 sec

Minimum Illumination 0.05 lux - colour ¦ 0.01 lux - B&W

Video Capture 2048 x 1536 @ 25 fps ¦ 704 x 576 @ 25 fps

Still Image Capture Resolution 704 x 576, 2048 x 1536

Features Backlight Compensation (BLC), date/time stamp, sharpness control, white balance, alarm function, progressive scanning, saturation control, brightness control, contrast control, image mirror, ONVIF support, Video Snapshot mode, manually schedule recording, auto patrol, Motion Detection Technology, Privacy Mask Function, Digital Wide Dynamic Range (D-WDR), 256 preset positions, surge protection, tamper-detection, notification picture to E-mail, lightning-resistant, Defog, 3D Digital Noise Reduction Technology

Image Sensor

Type 3 MP CMOS 1/2.8"

Lens Construction

Type Motorized zoom

Optical Zoom 4 x

Focal Length 2.8 mm - 12 mm

Lens Iris F/1.6-2.7 auto and manual iris

Focus Adjustment Automatic, manual

Horizontal Field of View (degree) 33.5 - 105

Panning

Range (degree) 350

Speed (degree/sec) Up to 60

Tilting

Range (degree) 90

Speed (degree/sec) Up to 50

Interfaces

Network Interface Ethernet 10Base-T/100Base-TX

Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, PPPoE, SMB, IGMP, QOS, PSIA, CIFS, NFS

Expansion / Connectivity

Ports Audio line in ¦ Audio line out ¦ LAN/power - RJ-45

Supported Memory Cards microSD Card

Miscellaneous

Compliant Standards FCC, IK10, IP66

Power

Power Requirements DC 12 V / PoE - 1 A

Power Device 8 Watt

Software / System Requirements

Software Included Drivers & Utilities

OS Required Microsoft Windows Server 2003, Microsoft Windows Vista / XP, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows 7 / Windows 8, Windows 8.1, Windows 10

Manufacturer Warranty

Service & Support Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature -30 °C

Max Operating Temperature 65 °C

Relative Humidity (operating) 0 - 90% (non-condensing)
