Aruba

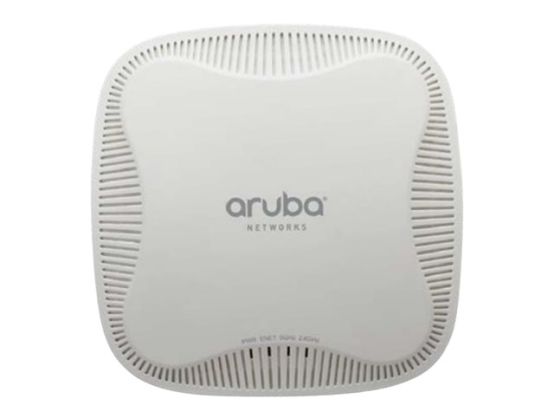

HPE Aruba Instant IAP-205 (RW) FIPS/TAA - Radio access point - Wi-Fi - Dual Band - in-ceiling

Name: HPE Aruba Instant IAP-205 (RW) FIPS/TAA - Radio access point - Wi-Fi - Dual Band - in-ceiling
Brand: Aruba
SKU: 1TNETACC-002803
Price: 622.22 GBP
Availability: OutOfStock

SKU

1TNETACC-002803

Manufacture#: JW214A

£518.52

£622.22 inc VAT

Checking delivery…

Product details

Radio access point
Wi-Fi 5
2.4 GHz, 5 GHz
in-ceiling

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

HPE Aruba Instant IAP-205 (RW) FIPS/TAA
Radio access point
Wi-Fi 5
2.4 GHz, 5 GHz
in-ceiling
TAA Compliant

Overview

These compact and cost-effective dual-radio APs deliver wireless data rates of up to 867 Mbps to 5GHz devices with 802.11ac technology leveraging two spatial MIMO streams while simultaneously supporting 2.4GHz 802.11n clients with data rates of up to 300 Mbps.

Specification

Product Description HPE Aruba Instant IAP-205 (RW) FIPS/TAA - radio access point - Wi-Fi 5 - TAA Compliant

Device Type Radio access point

Form Factor In-ceiling - indoor

Localisation Rest of World

Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Frequency Band 2.4 GHz, 5 GHz

Performance Concurrent data rate (5 GHz): 867 Mbps ¦ Concurrent data rate (2.4 GHz): 300 Mbps

Capacity Wireless clients: 255 ¦ BSSIDs per radio: 16

Included Accessories 2 mounting brackets

Power Over Ethernet (PoE) Supported PoE

TAA Compliant Yes

Dimensions (WxDxH) 15 cm x 15 cm x 4.15 cm

Weight 380 g

Manufacturer Warranty Limited lifetime warranty

General

Device Type Radio access point

Ruggedized Design Indoor

Width 15 cm

Depth 15 cm

Height 4.15 cm

Weight 380 g

Localisation Rest of World

Networking

Form Factor In-ceiling

Connectivity Technology Wireless

Data Transfer Rate 867 Mbps

Line Coding Format CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM

Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Spread Spectrum Method OFDM, DSSS

Frequency Band 2.4 GHz, 5 GHz

Performance Concurrent data rate (5 GHz): 867 Mbps ¦ Concurrent data rate (2.4 GHz): 300 Mbps

Capacity Wireless clients: 255 ¦ BSSIDs per radio: 16

Status Indicators Power, system

Features Auto-uplink (auto MDI/MDI-X), DFS support, Quality of Service (QoS), Trusted Platform Module (TPM), reset button, 2T2R MIMO technology, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), security lock slot (cable lock sold separately), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), enhanced ClientMatch, Instant Access (IA), wireless intrusion protection

Encryption Algorithm FIPS

Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Aerial

Antenna Internal

Antenna Qty 4

Directivity Omni-directional

Expansion / Connectivity

Interfaces 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x console - RJ-45 ¦ 1 x console - RJ-45

Miscellaneous

Included Accessories 2 mounting brackets

MTBF 711,187 hours

Compliant Standards EN 60950, IEC 60950, UL 60950, CB, UL 2043, FCC, EN 60601-1-2, cTUVus, FIPS, EN 300 328, EN 301 489, EN 60601-1-1, LVD 72/23/EEC, EN 301 893, R&TTE Directive 1995/5/EC

TAA Compliant Yes

Power

Power Over Ethernet (PoE) Supported PoE

Power Consumption Operational 12.5 Watt

Manufacturer Warranty

Service & Support Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 5 - 93% (non-condensing)
