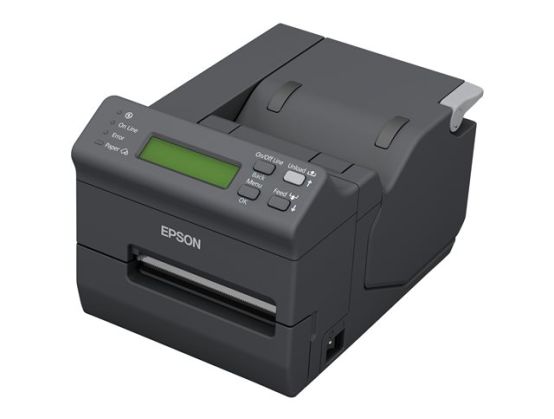

The TM-L500A is a complete family of products that covers all printing needs associated with passenger processing. Whether with an LCD screen or control panel, roll holder or fanfold insert, BP tray - the wide range of options allows every airport to select the best configuration for its operations.
Print SpeedUp to 250 mm/sec ¦ Up to 200 mm/sec ¦ Up to 150 mm/sec
Max Resolution (B&W)203 dpi
CutterYes
InterfaceUSB, serial
Language SimulationEPSON ESC/POS
BarcodesIndustrial 2 of 5, Code 39, QR code, Aztec code, EAN/JAN-13, Code 128, Interleaved 2 of 5, PDF417, Data Matrix
Media TypeThermal paper
Microsoft CertificationCompatible with Windows 7
Enclosure ColourDark grey
Dimensions (WxDxH)15.6 cm x 14.7 cm x 23.6 cm
Extended Specification
General
Printer TypeReceipt printer - thermal line - monochrome
Enclosure ColourDark grey
Printer
Print SpeedUp to 250 mm/sec ¦ Up to 200 mm/sec ¦ Up to 150 mm/sec
Built-in DevicesStatus LCD
Connectivity TechnologyWired
InterfaceUSB, serial
Max Resolution (B&W)203 dpi
Language SimulationEPSON ESC/POS
Auto CutterYes
BarcodesIndustrial 2 of 5, Code 39, QR code, Aztec code, EAN/JAN-13, Code 128, Interleaved 2 of 5, PDF417, Data Matrix
Media Handling
Media TypeThermal paper
Max Media SizeRoll (8.25 cm), fanfold (8.25 cm)
Media SizesRoll (5.4 cm), Roll (7.95 cm), Roll (8.25 cm), fanfold (8.25 cm), fanfold (7.95 cm), fanfold (5.4 cm)
Roll Maximum Outer Diameter184.1 mm
Roll Core Diameter76.2 mm
Media Feeders1 x manual - 1 roll - Roll (8.25 cm) ¦ 1 x manual - fanfold (8.25 cm)
Expansion / Connectivity
Connections1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB 2.0 - 4 pin USB Type B
Miscellaneous
MTBF360,000 hour(s)
Compatible with Windows 7"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant StandardsFCC Class A certified, CSA, UL, TUV, VCCI Class A ITE, GOST-R
