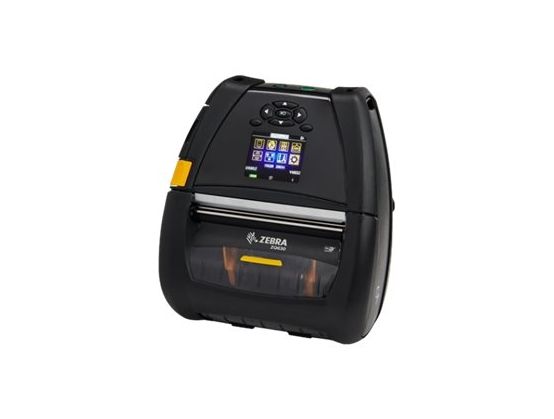

Name: ZQ630 DT PRINT EN FONTS GROUP E BT4 LINERED PLATEN STRAP CLIP
Brand: ZEBRA
SKU: 1TPRNRPR-005610
Price: 900.67 GBP
Availability: OutOfStock

Overview

Main features

Zebra ZQ600 Series ZQ630 RFID
Label printer
direct thermal
Roll (11.2 cm)
203 dpi
up to 115 mm/sec
USB, NFC, RS232C, Bluetooth 4.1 LE

Overview

Boost productivity with the ZQ630 RFID's fast, high-quality printing and advanced features. Color display, easy navigation, instant wake over Wi-Fi or Bluetooth, incredible battery capacity and technology, and RFID - all packed into one lightweight, durable mobile printer. Reduce errors and RFID label items faster by printing/encoding at the point of application. Ensure workers are always connected with wireless technology.

Specification

Product Description Zebra ZQ600 Series ZQ630 RFID - label printer - B/W - direct thermal

Printer Type Label printer - direct thermal - B/W

Form Factor Portable

Weight 1.1 kg

Max Media Size Roll (11.2 cm)

Min Media Size (Custom) 12.7 mm

Max Media Size (Custom) 112 mm x 813 mm

Print Speed Up to 115 mm/sec - max speed

Max Resolution (B&W) 203 dpi

Interface USB, NFC, RS232C, Bluetooth 4.1 LE

Processor 400 MHz

RAM Installed (Max) 256 MB

Flash Memory Installed (Max) 512 MB

Language Simulation ZPL, EPL, Extensible Mark-up Language (XML), Comtec Printer Control Language (CPCL), ZBI 2.x

Barcodes Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey, EAN-8, EAN-13, MSI, RSS

Media Type Receipt paper, continuous labels, tag labels, die cut labels

Fonts CG Triumvirate Bold Condensed

Features Label Taken Sensor (LTS), Black Mark sensor, gap sensor

Display Resolution 288 x 240

Networking Print server

Printer Features XML-enabled printing

Battery Lithium Ion Included Qty 1

Manufacturer Warranty 1-year warranty

Dimensions (WxDxH) 16.5 cm x 18.7 cm x 8.25 cm

General

Printer Type Label printer - direct thermal - monochrome

Printer

Print Speed Up to 115 mm/sec - max speed

Built-in Devices Status LCD, RFID reader/writer

Connectivity Technology Wireless

Interface USB, NFC, RS232C, Bluetooth 4.1 LE

Max Resolution (B&W) 203 dpi

Language Simulation ZPL, EPL, Extensible Mark-up Language (XML), Comtec Printer Control Language (CPCL), ZBI 2.x

Fonts CG Triumvirate Bold Condensed

Features Label Taken Sensor (LTS), Black Mark sensor, gap sensor

Display Resolution 288 x 240

Fonts Included 25 x bitmapped ¦ 1 x scalable

Barcodes Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey, EAN-8, EAN-13, MSI, RSS

Printer Features XML-enabled printing

Processor

Processor 400 MHz

RAM

RAM Installed (Max) 256 MB

Flash Memory

Flash Memory 512 MB

Media Handling

Media Type Receipt paper, continuous labels, tag labels, die cut labels

Max Media Size Roll (11.2 cm)

Min Media Size (Custom) 12.7 mm

Max Media Size (Custom) 112 mm x 813 mm

Media Sizes Roll (5.1 - 11.2 cm)

Max Printing Width 104 mm

Max Printing Length 813 mm

Media Thickness Range 0.058 mm - 0.15 mm

Roll Maximum Outer Diameter 66 mm

Roll Core Diameter 19 mm, 34.9 mm

Media Feeders 1 x manual - 1 roll - Roll (11.2 cm)

RFID

Compliant Standards ISO/IEC 18000-63, UHF EPC Gen 2 V2

Networking

Networking Print server

Expansion / Connectivity

Connections 1 x USB - mini-USB Type B ¦ 1 x RS-232C

Miscellaneous

Included Accessories Belt clip, shoulder strap

Compliant Standards CSA, TUV, EN 60950, EN55024, EN55022 Class B, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, VCCI Class B, IP43, IEEE 802.11r

Battery

Type Lithium Ion

Included 1

Capacity 6800 mAh

Software / System Requirements

Software Included Link-OS

Manufacturer Warranty

Service & Support Limited warranty - parts and labour - 1 year

Environmental Parameters

Min Operating Temperature -20 °C

Max Operating Temperature 50 °C

Humidity Range Operating 10 - 90% (non-condensing)

Dimensions & Weight

Width 16.5 cm

Depth 18.7 cm

Height 8.25 cm

Weight 1.1 kg
