BARRACUDA 2.5IN 500GB SATA 2.5IN 5400RPM 6GB/S 128MB 7MM
Checking delivery…
Product details
Hard drive
500 GB
internal
2.5"
Payment options available at checkout
Main features

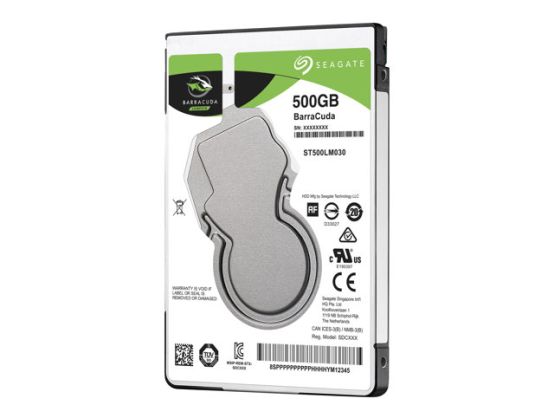

Seagate Guardian BarraCuda ST500LM030
Hard drive
500 GB
internal
2.5"
SATA 6Gb/s
5400 rpm
buffer: 128 MB
Overview
Thinnest and lightest 2.5-inch hard drive with 500 GB storage in a 7mm z-height, providing seamless upgrades of thin and light laptops and smaller form factor systems. Fast data rates of up to 140MB/s enables superior PC end-user experience and snappier file transfers.
Product Description
Seagate Guardian BarraCuda ST500LM030 - hard drive - 500 GB - SATA 6Gb/s
Type
Hard drive - internal
Capacity
500 GB
Form Factor
2.5"
Interface
SATA 6Gb/s
Data Transfer Rate
600 MBps
Buffer Size
128 MB
Spindle Speed
5400 rpm
Features
QuietStep, Halogen Free, Ramp Load
Dimensions (WxDxH)
69.85 mm x 100.35 mm x 7 mm
Weight
90 g
Manufacturer Warranty
2-year warranty
General
Device Type
Hard drive - internal
Capacity
500 GB
Form Factor
2.5"
Interface
SATA 6Gb/s
Buffer Size
128 MB
Bytes per Sector
4096
Features
QuietStep, Halogen Free, Ramp Load
Width
69.85 mm
Depth
100.35 mm
Height
7 mm
Weight
90 g
Performance
Drive Transfer Rate
600 MBps (external)
Internal Data Rate
140 MBps
Spindle Speed
5400 rpm
Reliability
Non-Recoverable Errors
1 per 10^14
Load / Unload Cycles
600,000
Expansion & Connectivity
Interfaces
SATA 6 Gb/s
Compatible Bay
2.5"
Power
Power Consumption
1.6 Watt (read) ¦ 1.7 Watt (write) ¦ 0.45 Watt (idle)
Miscellaneous
Compliant Standards
RoHS
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
60 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Shock Tolerance (operating)
400 g @ 2 ms
Shock Tolerance (non-operating)
1000 g @ 1 ms
