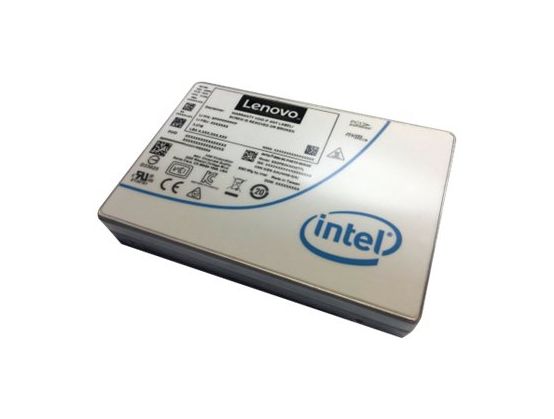

The Intel P4610 Mainstream NVMe SSDs are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. They are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
FeaturesEnhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, S.M.A.R.T.
FeaturesEnhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, End-to-end data protection, 3D NAND Technology, S.M.A.R.T.
Width70 mm
Depth100 mm
Height15 mm
Weight139 g
Performance
Drive Writes Per Day (DWPD)3.7
SSD Endurance21.85 PB
Internal Data Rate3.2 GBps (read) / 3.05 GBps (write)
4KB Random Read638000 IOPS
4KB Random Write222000 IOPS
Average Latency9 µs
Reliability
MTBF2,000,000 hours
Non-Recoverable Errors1 per 10^17
Expansion & Connectivity
Interfaces1 x PCI Express 3.0 x4 (NVMe) - U.2 (SFF-8639)
Compatible Bay2.5"
Power
Power Consumption8.7 Watt (read) ¦ 13.8 Watt (write)
Software & System Requirements
OS RequiredRed Hat Enterprise Linux 6.1, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), Red Hat Enterprise Linux 7.4, Red Hat Enterprise Linux 7.5, VMware vSphere 6.7 (ESXi), Microsoft Windows Server 2019
Miscellaneous
Compliant StandardsCSA, UL, C-Tick, BSMI CNS 13438, EN 60950-1 Second Edition, RoHS 2011/65/EU, LVD 2006/95/EC, EN55022:2006, WEEE 2002/96/EC, EN55024:1998, CAN/CSA-CEI/IEC CISPR 22:02, FCC CFR47 Part 15 B Class B, AS/NZS 3584, KCC Article 11.1
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 1 year
