for System x3250 M6 (2.5"); x3550 M5 (2.5"); x3650 M5; x3850 X6; x3950 X6; ThinkServer sd350
Overview

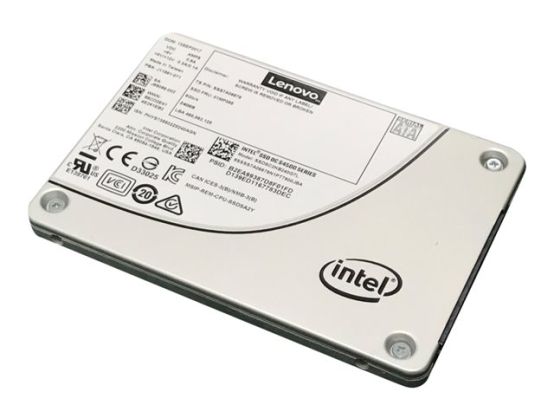

The Intel S4500 Entry SATA SSDs use advanced flash memory technology to provide an affordable solution with incredible performance. The S4500 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
High reliability and enhanced ruggedness
Full end-to-end data path protection
Thermal throttling to extend the life of the drive
FeaturesEnhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, Standard Endurance Technology (SET), 3D NAND Technology, S.M.A.R.T.
FeaturesEnhanced Power Loss Data Protection, Thermal throttling, End-to-end data path protection, Standard Endurance Technology (SET), 3D NAND Technology, S.M.A.R.T.
Width70 mm
Depth100 mm
Height7 mm
Weight63 g
Performance
Drive Writes Per Day (DWPD)1.06
SSD Endurance1.86 PB
Drive Transfer Rate600 MBps (external)
Internal Data Rate500 MBps (read) / 490 MBps (write)
4KB Random Read72000 IOPS
4KB Random Write30000 IOPS
Average Latency36 µs
Reliability
MTBF2,000,000 hours
Non-Recoverable Errors1 per 10^17
Expansion & Connectivity
Interfaces1 x SATA 6 Gb/s
Compatible Bay2.5"
Power
Power Consumption4.8 Watt (typical)
Miscellaneous
Included AccessoriesHard drive tray
Compliant StandardsFCC CFR47 Part 15 B Class B, CAN/CSA-CEI/IEC CISPR 22:02, EN55024:1998, EN55022:2006, EN 60950-1 Second Edition, LVD 2006/95/EC, AS/NZS 3584, BSMI CNS 13438, C-Tick, KCC, RoHS 2011/65/EU, WEEE 2002/96/EC
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 1 year
Environmental Parameters
Min Operating Temperature0 °C
Max Operating Temperature70 °C
Humidity Range Operating5 - 95% (non-condensing)
Shock Tolerance (operating)1000 g @ 0.5 ms
Vibration Tolerance (operating)2.17 g @ 5-700 Hz
Vibration Tolerance (non-operating)3.13 g @ 5-800 Hz
Compatibility Information
Designed ForLenovo System x3250 M6 (2.5") ¦ Lenovo System x3550 M5 (2.5") ¦ Lenovo System x3650 M5 (2.5") ¦ Lenovo System x3850 X6 (2.5") ¦ Lenovo System x3950 X6 (2.5") ¦ Lenovo ThinkServer sd350 (2.5")
