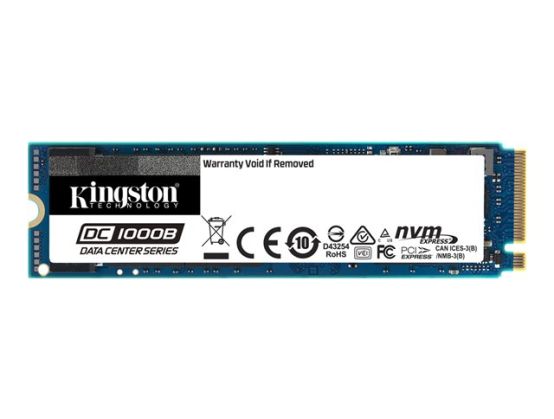

Kingston Data Center DC1000B - SSD - encrypted - 480 GB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) - 256-bit AES - Self-Encrypting Drive (SED)
Manufacture#: SEDC1000BM8/480G
Checking delivery…
Product details
SSD
encrypted
480 GB
internal
Payment options available at checkout
Main features
Kingston Data Center DC1000B
SSD
encrypted
480 GB
internal
M.2 2280
PCIe 3.0 x4 (NVMe)
256-bit AES
Self-Encrypting Drive (SED)
Overview
Kingston's Data Center DC1000B is a high-performance M.2 (2280) NVMe PCIe SSD using the Gen 3.0 x 4 PCIe interface with 64-layer 3D TLC NAND. DC1000B offers data centers a cost-effective boot drive solution with the reassurance they are purchasing an SSD designed for server use. DC1000B is ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes on-board power loss protection (PLP).
Product Description
Kingston Data Center DC1000B - SSD - 480 GB - PCIe 3.0 x4 (NVMe)
Type
Solid state drive - internal
Capacity
480 GB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
M.2 2280
Interface
PCIe 3.0 x4 (NVMe)
Features
Power Loss Protection (PLP), NVM Express (NVMe), S.M.A.R.T.
Dimensions (WxDxH)
22 mm x 80 mm x 3.8 mm
Weight
8 g
Manufacturer Warranty
5-year warranty
General
Device Type
Solid state drive - internal
Capacity
480 GB
Hardware Encryption
Yes
Encryption Algorithm
256-bit AES
NAND Flash Memory Type
3D triple-level cell (TLC)
Form Factor
M.2 2280
Interface
PCIe 3.0 x4 (NVMe)
Features
Power Loss Protection (PLP), NVM Express (NVMe), S.M.A.R.T.
Width
22 mm
Depth
80 mm
Height
3.8 mm
Weight
8 g
Performance
Drive Writes Per Day (DWPD)
0.5
SSD Endurance
475 TB
Internal Data Rate
3200 MBps (read) / 565 MBps (write)
4KB Random Read
205000 IOPS
4KB Random Write
20000 IOPS
Reliability
MTBF
1,000,000 hours
Expansion & Connectivity
Interfaces
1 x PCI Express 3.0 x4 (NVMe) - M.2 Card
Compatible Bay
M.2 2280
Power
Power Consumption
1.9 Watt (idle) ¦ 1.81 Watt (max read) ¦ 5.47 Watt (max write) ¦ 1.74 Watt (average read) ¦ 4.88 Watt (average write)
Manufacturer Warranty
Service & Support
Limited warranty - 5 years ¦ Technical support
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Vibration Tolerance (operating)
2.17 g @ 7-800 Hz
Vibration Tolerance (non-operating)
20 g @ 10-2000 Hz
