AXIS Camera Station S1116 Recorder is an out-of-the-box, ready-to-use recording solution designed to deliver reliable high-definition surveillance.
Out-of-the-box, ready-to-use solution
Improved performance and reliability
Out-of-the-box, ready-to-use solutionAXIS Camera Station allows you to verify system performance at installation, so you can be sure your solution is effective and secure. And with the integrated recording toolbox, you get easy access to a complete end-to-end solution with total control over your entire surveillance system.Improved performance and reliabilityAXIS S1116 provides increased performance and contains a powerful CPU to allow for fast processing of data. The operating system is stored on a SSD meaning system start-up is fast, and the operating system is safeguarded in the event of failure.
Processor1 x Intel Core i5 (8th Gen) 8500 / 3 GHz (, up to 4.1 GHz, (6-core)
RAM8 GB
Hard DriveSSD 256 GB

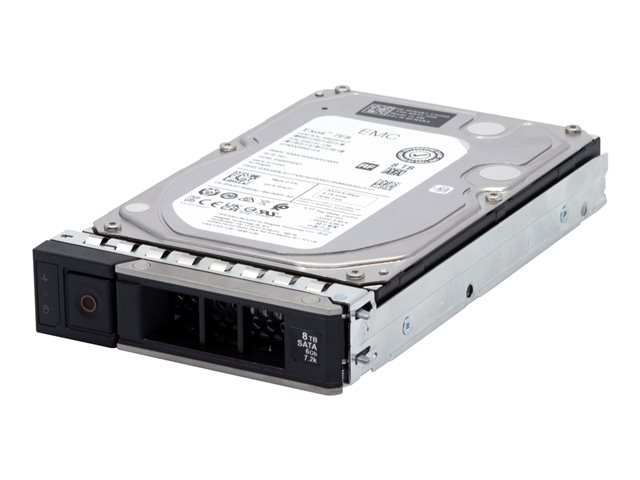

Hard Drive (2nd)HDD 8 TB - 7200 rpm
Networking1GbE
PowerAC 120/230 V (50/60 Hz)
OS ProvidedWindows 10 Enterprise
Software Included16 AXIS Camera Station core licences
Dimensions (WxDxH)58.9 cm x 48.2 cm x 4.3 cm
Weight9.6 kg
Manufacturer WarrantyLimited warranty - 3 years
Extended Specification
General
TypeServer
Product Form FactorRack-mountable
Built-in DevicesSD card reader
Processor / Chipset
CPUIntel Core i5 (8th Gen) 8500
Clock Speed3 GHz
Max Turbo Speed4.1 GHz
Number of Cores6-core
CPU Qty1
RAM
Installed Size8 GB
Hard Drive
TypeSSD
Capacity1 x 256 GB
Hard Drive (2nd)
TypeHDD
Capacity1 x 8 TB
Spindle Speed7200 rpm
Monitor
Monitor TypeNone.
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Bays2 (total) / 2 (free) x
Interfaces2 x USB 3.1 ¦ 1 x USB-C 3.1 ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 2 x DisplayPort/USB-C 3.1 ¦ 1 x audio line-in ¦ 1 x serial
Miscellaneous
Included AccessoriesRack rail kit, USB-C to VGA adapter
Compliant StandardsBSMI, EN 61000-3-2, IEC 61000-3-2, NOM, EN55024, ICES-003 Class A, FCC Part 15 A, VCCI Class A, EAC, RCM, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, IEC/EN/UL 60950-1, IEC/EN 61000-3-3
