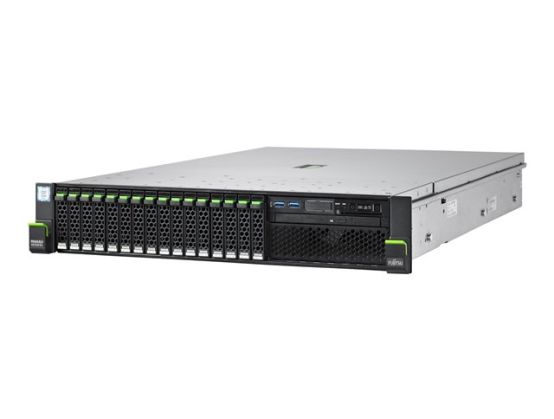

The FUJITSU server PRIMERGY RX2540 M4 is a dual socket rack server for high usability, scalability and cost-efficiency. The modular design offers excellent expandability and great energy efficiency thanks to two hot-plug power supplies.
Bays8 (total) / 8 (free) x hot-swap 2.5" ¦ 1 (total) / 0 (free) x external 5.25"
Slots2 (total) / 1 (free) x CPU ¦ 24 (total) / 23 (free) x DIMM 288-pin ¦ 2 PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile (2 processors must be installed) ¦ 1 PCIe 3.0 x16 - low-profile ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - low-profile (2 processors must be installed)
InterfacesUSB 3.0 ¦ USB 2.0 ¦ 1 x VGA ¦ 1 x management - RJ-45 ¦ 4 x LAN (Gigabit Ethernet) - RJ-45
Miscellaneous
Included AccessoriesCable management adapter, power supply dummy, Quick-Release-Lever, rack mounting kit F1
Cables IncludedNo power cord is included
Compliant StandardsFCC Class A certified, BSMI, GS, CB, ICES-003 Class A, RoHS, WEEE, KC, VCCI V-3 Class A ITE, cCSAus, JIS C 61000-3-2, EAC, NMB-3 Class A, RCM
Power
Device TypePower supply - hot-plug
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Installed Qty1
Max Supported Qty2
Voltage RequiredAC 120/230 V (50/60 Hz)
Power Provided800 Watt
80 PLUS Certification80 PLUS Platinum
Efficiency94%
Operating System / Software
OS ProvidedNo operating system
SoftwareServerView
Manufacturer Warranty
Service & SupportLimited warranty - 3 years - on-site - response time: next business day
