HPE

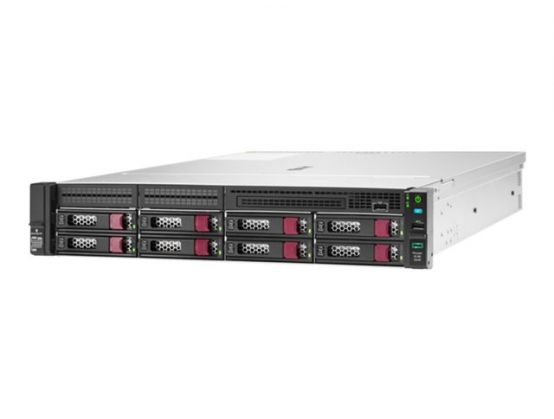

HPE ProLiant DL180 Gen10 - Server - rack-mountable - 2U - 2-way - 1 x Xeon Bronze 3204 up to - RAM 16 GB - hot-swap 3.5" bay(s) - no HDD - Gigabit Ethernet - monitor: none

Name: HPE ProLiant DL180 Gen10 - Server - rack-mountable - 2U - 2-way - 1 x Xeon Bronze 3204 up to - RAM 16 GB - hot-swap 3.5" bay(s) - no HDD - Gigabit Ethernet - monitor: none
Brand: HPE
SKU: 1TCOMSRV-006702
Price: 2485.64 GBP
Availability: OutOfStock

SKU

1TCOMSRV-006702

Manufacture#: P19562-B21

£2071.37

£2485.64 inc VAT

Checking delivery…

Product details

Server
rack-mountable 2U
2-way
1 x Xeon Bronze 3204

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

HPE ProLiant DL180 Gen10
Server
rack-mountable 2U
2-way
1 x Xeon Bronze 3204
RAM 16 GB
hot-swap 3.5" bay(s)
no HDD
Gigabit Ethernet
monitor: none

Overview

Is maximizing your business reach and goal a challenge you are facing because your IT is not keeping pace with your data growth? The secure HPE ProLiant DL180 Gen10 server delivers on scalability, performance, and reliability thus making it the ideal platform for businesses ready to run on-premises and hybrid cloud applications. These businesses need the right mix of compute and storage, enabling them to achieve their most important goals.

Specification

Product Description HPE ProLiant DL180 Gen10 - rack-mountable Xeon Bronze 3204 1.9 GHz - 16 GB - no HDD

Type Server - rack-mountable

Height (Rack Units) 2U

Server Scalability 2-way

Processor 1 x Intel Xeon Bronze 3204 / 1.9 GHz (6-core)

Cache Memory 8.25 MB L3 Cache

Cache Per Processor 8.25 MB

RAM 16 GB (installed) / 1 TB (max) - DDR4 SDRAM

Storage Controller SATA (SATA 6Gb/s) - PCIe 3.0 x4 (HPE Smart Array S100i SR Software RAID)

Server Storage Bays Hot-swap 3.5"

Hard Drive No HDD

Optical Storage No optical drive

Video Memory 16 MB

Networking 1GbE

Power AC 120/230 V

Power Redundancy Optional

Weight 13 kg

Manufacturer Warranty Limited warranty - parts and labour - 3 years - on-site - response time: next business day

General

Type Server

Product Form Factor Rack-mountable - 2U

Server Scalability 2-way

Hot-Swap Bays Qty 8

Processor / Chipset

CPU Intel Xeon Bronze 3204

Clock Speed 1.9 GHz

Number of Cores 6-core

CPU Qty 1

Max CPU Qty 2

CPU Upgradability Upgradable

Chipset Type Intel C622

Cache Memory

Installed Size L3 Cache - 8.25 MB

Cache Per Processor 8.25 MB

RAM

Installed Size 16 GB (installed) / 1 TB (max)

Technology DDR4 SDRAM

Effective Memory Speed 2133 MHz

Rated Memory Speed 2666 MHz

Form Factor DIMM 288-pin

Slots 16 (Total)

Features Registered, HPE SmartMemory

Hard Drive

Type No HDD

Storage Controller

Type 1 x SATA - PCIe 3.0 x4

Controller Interface Type SATA 6Gb/s

Storage Controller Name HPE Smart Array S100i SR Software RAID

Channel Qty 14

RAID Level RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage

Type No optical drive

Monitor

Monitor Type None.

Graphics Controller

Video Memory 16 MB

Video Interfaces VGA

Networking

Ethernet Ports 2 x Gigabit Ethernet

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Protocol SNMP 3, IPMI 2.0, SMASH CLP

Remote Management Controller Integrated Lights-Out 5

Features Wake on LAN (WoL), PXE support

Expansion / Connectivity

Bays 8 (total) / 8 (free) x hot-swap 3.5" LFF

Slots 1 (total) / 1 (free) x microSD Card (internal) ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - full-height

Interfaces 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 4 x USB 3.0 (1 front, 2 rear, 1 internal) ¦ 1 x VGA

Miscellaneous

Included Accessories HPE Easy Install Rails

Compliant Standards WEEE, ACPI 6.1

Power

Device Type Power supply - hot-plug

Power Redundancy Optional

Power Redundancy Scheme 1+1 (with optional power supply)

Installed Qty 1

Max Supported Qty 2

Voltage Required AC 120/230 V

Power Provided 500 Watt

80 PLUS Certification 80 PLUS Platinum

Efficiency 94%

Manufacturer Warranty

Service & Support Limited warranty - parts and labour - 3 years - on-site - response time: next business day

Dimensions & Weight

Weight 13 kg

Environmental Parameters

Min Operating Temperature 10 °C

Max Operating Temperature 35 °C

Humidity Range Operating 8 - 90% (non-condensing)
