Name: PM43 FT ROW ETH HGR DT203 EU PC
Brand: HONEYWELL
SKU: 1TPRNRPR-006360
Price: 1404.17 GBP
Availability: OutOfStock

Overview

Main features

Honeywell PM43
Label printer
direct thermal
Roll (11.4 cm)
203 dpi
up to 300 mm/sec
USB, LAN, serial, USB host

Overview

PM43 mid-range industrial label printers are ready to perform, designed to maximize your uptime. Count on PM43 to deliver quick deployment and proven reliability. Ideal for a wide range of applications within the distribution center, warehouse and manufacturing environments.

Specification

Product Description Honeywell PM43 - label printer - B/W - direct thermal

Printer Type Label printer - direct thermal - B/W

Weight 15.8 kg

Localisation Europe

Max Media Size Roll (11.4 cm)

Min Media Size (Custom) 19.1 mm

Max Media Size (Custom) 114.3 mm

Print Speed Up to 300 mm/sec - max speed

Max Resolution (B&W) 203 dpi

Interface USB, LAN, serial, USB host

RAM Installed (Max) 128 MB SDRAM

Flash Memory Installed (Max) 128 MB

Language Simulation ZPL, Intermec Printer Language (IPL), DSim (Datamax Interpreter), ZSim, Extensible Mark-up Language (XML), DPL

Barcodes EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, HIBCC, LOGMARS, MicroPDF417, Codabar, Code 128, Code 11, Code 16K, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Plessey, AIAG, Standard 2 of 5, Grid Matrix Code

Media Type Labels, linerless labels, fanfold paper, tag stock, tickets

Networking Print server - Ethernet, Fast Ethernet

Printer Features RFID ready, USB host

System Requirements Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits)

Dimensions (WxDxH) 28.4 cm x 48.4 cm x 29.5 cm

General

Printer Type Label printer - direct thermal - monochrome

Localisation Europe

Printer

Print Speed Up to 300 mm/sec - max speed - 203 dpi

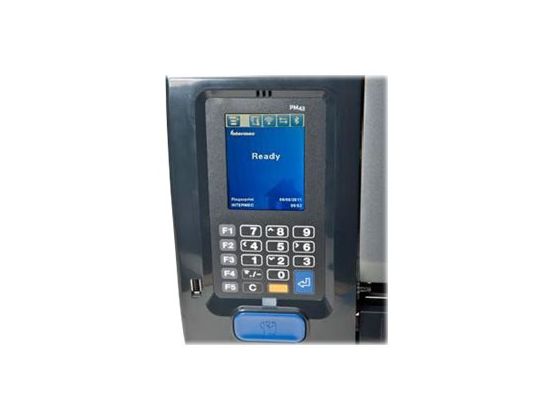

Built-in Devices Status LCD, touch screen

Connectivity Technology Wired

Interface USB, LAN, serial, USB host

Max Resolution (B&W) 203 dpi

Language Simulation ZPL, Intermec Printer Language (IPL), DSim (Datamax Interpreter), ZSim, Extensible Mark-up Language (XML), DPL

Barcodes EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, HIBCC, LOGMARS, MicroPDF417, Codabar, Code 128, Code 11, Code 16K, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Plessey, AIAG, Standard 2 of 5, Grid Matrix Code

Printer Features RFID ready, USB host

RAM

RAM Installed (Max) 128 MB

Technology / Form Factor SDRAM

Flash Memory

Flash Memory 128 MB

Media Handling

Media Type Labels, linerless labels, fanfold paper, tag stock, tickets

Max Media Size Roll (11.4 cm)

Min Media Size (Custom) 19.1 mm

Max Media Size (Custom) 114.3 mm

Media Sizes Roll (1.9 - 11.4 cm)

Max Printing Width 108 mm

Roll Maximum Outer Diameter 213 mm

Roll Core Diameter 76.2 mm, 38.1 mm

Media Feeders 1 x manual - 1 roll - Roll (11.4 cm)

Networking

Networking Print server

Data Link Protocol Ethernet, Fast Ethernet

Network / Transport Protocol TCP/IP, UDP/IP, ICMP/IP, LPR/LPD, SMTP, FTP, BOOTP, DHCP

Remote Management Protocol SNMP 1, SNMP 3, SNMP 2c, HTTP

Expansion / Connectivity

Connections 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB - 4 pin USB Type A

Miscellaneous

Included Accessories Fixed media hanger

Compliant Standards FCC Class A certified, UL, C-Tick, cUL, EN55022 Class A, CCC, RoHS

Power

Power Device Power supply - internal

Frequency Required 50/60 Hz

Power Consumption Operational 300 Watt

Power Consumption Stand by / Sleep 9 Watt

Software / System Requirements

Software Included Drivers & Utilities

OS Required Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits)

Environmental Standards

ENERGY STAR Yes

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 40 °C

Humidity Range Operating 20 - 80% (non-condensing)

Dimensions & Weight

Width 28.4 cm

Depth 48.4 cm

Height 29.5 cm

Weight 15.8 kg
