General
Printer Type

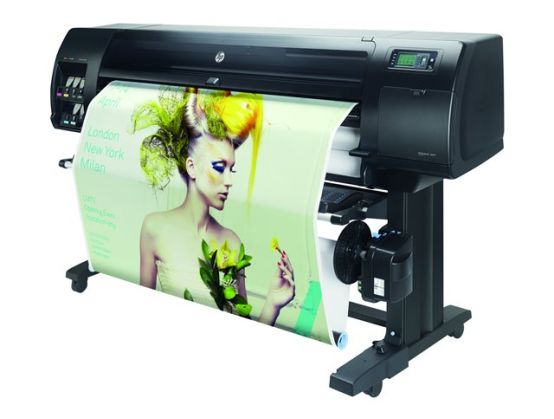

60" large-format printer - ink-jet - colour
Localisation
English, German, French, Italian, Spanish / Europe
Printer
Inkjet Technology
HP Thermal Inkjet
Ink Palette Supported (Colours)
6-ink - cyan, magenta, yellow, matte black, photo black, chromatic red
Nozzle Configuration
2112 nozzles
Ink Cartridge Configuration
6 cartridges (1 each: cyan, magenta, yellow, grey, photo black, matte black)
Ink Type
HP Vivid Photo Inks
Print Speed
Up to 140 sq.m/hour - B/W ¦ Up to 13.1 sq.m/hour - colour best ¦ Up to 3.2 min/page - colour best - ANSI D (559 x 864 mm) ¦ Up to 3.2 min/page - colour best - A1 (594 x 841 mm) ¦ Up to 3.33 min/page - colour draft - ANSI D (559 x 864 mm) ¦ Up to 3.33 min/page - colour draft - A1 (594 x 841 mm) ¦ Up to 2.1 min/page - colour normal - A1 (594 x 841 mm) ¦ Up to 2.1 min/page - colour normal - ANSI D (559 x 864 mm)
Connectivity Technology
Wired
Interface
Gigabit LAN
Max Resolution (B&W)
2400 x 1200 dpi
Max Resolution (Colour)
2400 x 1200 dpi
PostScript Support
Standard
Language Simulation
PostScript 3, HP RTL, CALS G4, HP GL/2, TIFF, PDF 1.7, JPEG
Cutter
Yes
Printer Features
Hard Disk Drive Encryption
RAM
RAM Installed (Max)
1 GB
Storage
Hard Drive
500 GB
Media Handling
Media Type
Fabric, banners, fine art paper, bond paper, proofing paper, film, backlit paper, info sign cards, photographic paper
Max Media Size
Roll (152.4 cm)
Min Media Size (Custom)
240 mm
Max Media Size (Custom)
1524 mm
Media Sizes
A1 (594 x 841 mm), Roll (152.4 cm), ANSI D (559 x 864 mm)
Media Thickness Range
Up to 0.6 mm
Media Weight
80 g/m² - 500 g/m²
Media Feeders
1 x manual - 1 roll - Roll (152.4 cm) weight: 80 g/m² - 500 g/m²
Networking
Remote Management Protocol
SNMP 3
Security Protocols & Features
SSL, IPsec
Expansion / Connectivity
Expansion Slots
1 x EIO
Connections
1 x Gigabit LAN - RJ-45
Miscellaneous
Included Accessories
Take-up reel
Compliant Standards
VCCI, GOST, CCC, EMC, PSB, FCC, IRAM, RoHS, EN 60950-1, WEEE, ICES, REACH, LVD, KC, MSIP, 1194/2012/EU, RSM
Power
Power Device
Power supply - internal
Frequency Required
50/60 Hz
Power Consumption Operational
270 Watt
Power Consumption Stand by
48 Watt
Power Consumption Sleep
5.3 Watt
Software / System Requirements
Software Included
Drivers & Utilities, HP Click, HP DesignJet Utility, HP Color Center, HP Applications Center
Environmental Standards
EPEAT Compliant
EPEAT Bronze
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - parts - 1 year
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 80%
Sound Emission (Idle)
39 dBA
Sound Emission (Operating)
53 dBA
Dimensions & Weight
Width
243 cm
Depth
69 cm
Height
137 cm
Weight
190 kg
Dimensions & Weight (Shipping)
Width (Shipping)
268.4 cm
Depth (Shipping)
75 cm
Height (Shipping)
120 cm
Weight (Shipping)
220 kg
