General
Type
Thin client
Product Form Factor
Tower
Built-in Devices
Speaker
Embedded Security
Trusted Platform Module (TPM 1.2) Security Chip
Localisation
Language: English / region: United Kingdom
Processor / Chipset
CPU
AMD R-series Embedded RX427BB
Clock Speed
2.7 GHz
Max Turbo Speed
3.6 GHz
Number of Cores
Quad-Core
CPU Qty
1
Max CPU Qty
1
Cache Memory
Installed Size
L2 Cache - 4 MB
Cache Per Processor
4 MB
RAM
Installed Size
8 GB (installed) / 16 GB (max)
Technology
DDR3L SDRAM
Effective Memory Speed
1600 MHz
Rated Memory Speed
1600 MHz
Form Factor
SO-DIMM 204-pin
Slots
2 (Total) / 0 (empty)
Features
Dual channel memory architecture
Configuration Features
2 x 4 GB
Hard Drive
Type
Flash - M.2
Capacity
1 x 128 GB
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
AMD Radeon HD 9000
Video Interfaces
DisplayPort
Max Monitors Supported
4
Networking
Interface (Bus) Type
PCI Express Mini Card (M.2)
Wireless LAN Supported
Yes
Wireless NIC
Intel Dual Band Wireless-AC 8260
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Features
Wake on LAN (WoL), PXE support
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Expansion / Connectivity
Slots
1 (total) / 0 (free) x M.2 Card ¦ 2 (total) / 0 (free) x SO-DIMM 204-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (x8 mode)
Interfaces
6 x USB 2.0 (2 front, 4 rear) ¦ 3 x USB 3.0 (2 front, 1 internal) ¦ 4 x DisplayPort ¦ 2 x PS/2 keyboard / mouse ¦ 2 x serial ¦ 1 x parallel ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x headphones/microphone (2 in front) ¦ 1 x audio line-out ¦ 1 x audio line-in
Miscellaneous
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Security Slot Type
Kensington security slot
Compliant Standards
FCC Class B certified, TUV GS, VCCI, UL 1950, CSA 22.2 No. 950, EN55022 Class B, low halogen
Power

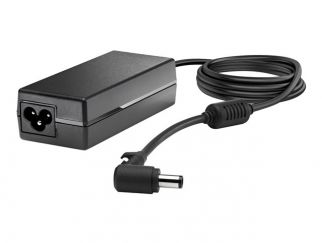

Device Type
Power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
85 Watt
Operating System / Software
OS Provided
Windows 10 IoT Enterprise English
Dimensions & Weight
Width
6.7 cm
Depth
22.1 cm
Height
24 cm
Weight
1.8 kg
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
