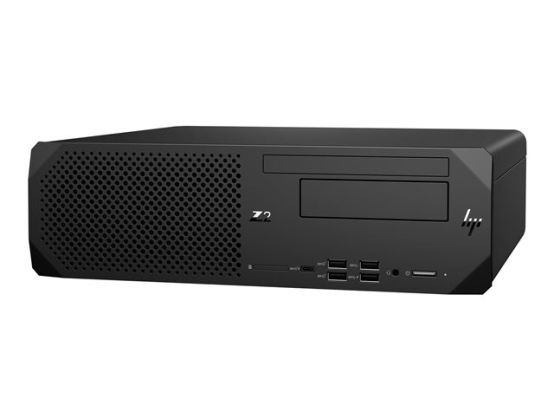

HP Workstation Z2 G5 - SFF - Core i7 10700 2.9 GHz - vPro - 16 GB - SSD 512 GB - UK
Manufacture#: 259H9EA#ABU
£1459 .14
£1750.97 inc VAT
Checking delivery…
Product details
SFF
1 x Core i7 10700 / 2.9 GHz
vPro
RAM 16 GB
Payment options available at checkout
Main features
HP Workstation Z2 G5
SFF
1 x Core i7 10700 / 2.9 GHz
vPro
RAM 16 GB
SSD 512 GB
HP Z Turbo Drive, NVMe, TLC
DVD-Writer
Quadro P620
GigE
Win 10 Pro 64-bit
monitor: none
keyboard: UK
black
Overview
Get high-end performance in a compact device. Completely redesigned to pack more graphics and processing into less space, you can easily take on complex 3D design projects. And with near endless configuration options, it's the ideal hardware when you need a custom solution.
Advanced security features come standard. System safeguards like the industry’s first self-healing BIOS help lock your device, data and identity down tight.
Build a system matched to your needs with over a million configurations. Customizable I/O ports, support new and legacy technologies, dynamic displays and even a second LAN.
Get high-end professional graphics and an Intel processor in a small form factor. And with full, unthrottled performance you can render and visualize faster.
We know you need performance you can rely on. That's why our products endure over 360K hours of rigorous testing, MIL-STD testing and software certifications.
Windows 10 Pro for Workstations 64
Work without compromising on performance or security with Windows 10 Pro for Workstations, powered by HP's collaboration and connectivity technology.
Intel Core i7 processor
Run several CPU-heavy programs simultaneously without sacrificing performance with an Intel Core i7 processor.
NVIDIA Quadro P620 graphics card
Get stable, reliable performance on professional workflows that require you to create complex 2D and 3D models with NVIDIA Quadro P620 graphics.
Product Description
HP Workstation Z2 G5 - SFF - Core i7 10700 2.9 GHz - vPro - 16 GB - SSD 512 GB - UK
Type
Workstation - small form factor
Platform Technology
Intel vPro Platform
Localisation
Language: English / region: United Kingdom
Processor
1 x Intel Core i7 (10th Gen) 10700 / 2.9 GHz (4.8 GHz) (8-core)
Processor Socket
FCLGA1200 Socket
Processor Main Features
Intel Turbo Boost Technology 2
Cache Memory
16 MB L3 Cache
Cache Per Processor
16 MB
RAM
16 GB (installed) / 128 GB (max) - DDR4 SDRAM - non-ECC - PC4-25600
Storage Controller
SATA (SATA 6Gb/s)
Hard Drive
SSD 512 GB - PCI Express 3.0 x4 - M.2 2280 - HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)
Optical Storage
DVD-Writer
Card Reader
Yes
Multi-GPU Configuration
1 single GPU card / integrated GPU
Graphics Controller
PCIe 3.0 x16 - NVIDIA Quadro P620 / Intel UHD Graphics 630
Video Memory
2 GB GDDR5 SDRAM
Networking
GigE
Keyboard
UK
Power
AC 120/230 V (50/60 Hz)
OS Provided
Windows 10 Pro 64-bit Edition
Colour
Black
Dimensions (WxDxH)
33.8 cm x 30.8 cm x 10 cm
Weight
5.4 kg
Environmental Standards
TCO Certified Desktops 8
Manufacturer Warranty
Limited warranty - parts and labour - 3 years - on-site
General
Platform Technology
Intel vPro Platform
Type
Workstation
Product Form Factor
Small form factor
Built-in Devices
Speaker
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Colour
Black
Localisation
Language: English / region: United Kingdom
Processor / Chipset
CPU
Intel Core i7 (10th Gen) 10700
Clock Speed
2.9 GHz
Max Turbo Speed
4.8 GHz
Number of Cores
8-core
CPU Qty
1
Max CPU Qty
1
CPU Upgradability
Upgradable
Processor Main Features
Intel Turbo Boost Technology 2
CPU Socket
FCLGA1200 Socket
Chipset Type
Intel W480
Cache Memory
Installed Size
L3 Cache - 16 MB
Cache Per Processor
16 MB
RAM
Installed Size
16 GB / 128 GB (max)
Technology
DDR4 SDRAM - non-ECC
Effective Memory Speed
3200 MHz
Rated Memory Speed
3200 MHz
Memory Specification Compliance
PC4-25600
Form Factor
DIMM 288-pin
Slots
4 (Total) / 2 (empty)
Features
Unbuffered, dual channel memory architecture
Configuration Features
2 x 8 GB
RAM Supported
128 GB unbuffered - ECC ¦ 128 GB unbuffered - non-ECC
Hard Drive
Type
SSD - M.2 2280
Capacity
1 x 512 GB
Interface Type
PCI Express 3.0 x4
Features
HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)
Storage Controller
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Channel Qty
4
RAID Level
RAID 0, RAID 1
Optical Storage
Type
DVD-Writer
Card Reader
Type
Card reader
Supported Flash Memory Cards
SD Memory Card
Monitor
Monitor Type
None.
Graphics Controller
Interface Type
PCIe 3.0 x16
Multi-GPU Configuration
1 single GPU card / integrated GPU
Graphics Processor
NVIDIA Quadro P620 / Intel UHD Graphics 630
Video Memory
2 GB GDDR5 SDRAM
Video Interfaces
DisplayPort
Audio Output
Compliant Standards
High Definition Audio
Input Device
Type
Mouse, keyboard
Keyboard
Keyboard Name
HP 320K
Interface
USB
Localization & Layout
UK
Mouse
Mouse Name
HP Premium
Interface
USB
Networking
Ethernet Controller
Intel I219-LM
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Features
Wake on LAN (WoL), ACPI support, PXE support, Intel Active Management Technology (AMT) 12
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az
Expansion / Connectivity
Bays
1 (total) / 1 (free) x external 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 1 (total) / 1 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x internal 2.5"
Slots
1 (total) / 0 (free) x PCIe 3.0 x16 ¦ 2 (total) / 2 (free) x PCIe 3.0 x1 ¦ 1 PCIe 3.0 x16 (x4 mode) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 3.0 x4 mode) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (PCIe 3.0 x1 mode and Intel CNVi wireless module)
Interfaces
4 x USB 3.1 Gen 1 (2 front, 2 rear) (one of them is charging) ¦ 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 2 (2 front, 2 rear) ¦ 1 x USB-C 3.1 Gen 2 (1 in front) ¦ 3 x USB 2.0 (2 rear, 1 internal) ¦ 1 x audio line-out ¦ 8 x Mini DisplayPort
Miscellaneous
Cables Included
Mini DisplayPort-DisplayPort cable (8 pcs.)
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Security Slot Type
Kensington security slot
Compliant Standards
ACPI, RoHS, WEEE, Common Criteria EAL4+, CECP
Power
Device Type
Power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
450 Watt
Efficiency
90%
Power Factor Correction
Yes (active)
Operating System / Software
OS Provided
Windows 10 Pro 64-bit Edition English
Environmental Standards
TCO Certified
TCO Certified Desktops 8
Manufacturer Warranty
Service & Support
Limited warranty - parts and labour - 3 years - on-site
Dimensions & Weight
Width
33.8 cm
Depth
30.8 cm
Height
10 cm
Weight
5.4 kg
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 85% (non-condensing)
