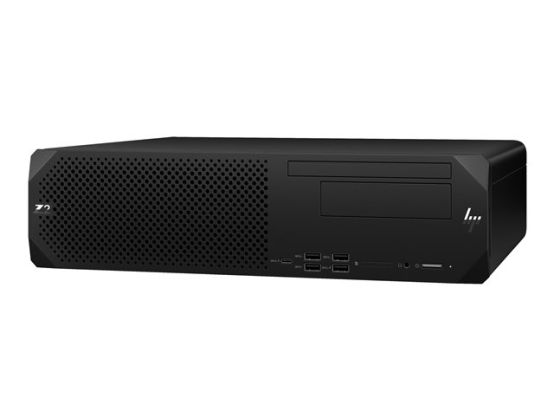

HP Workstation Z2 G9 - AI Workstation - SFF 1 x Core i9 12900 / up to 5.1 GHz - RAM 32 GB - SSD 1 TB - HP Z Turbo Drive, NVMe, TLC - RTX A4000 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: UK - black

Name: HP Workstation Z2 G9 - AI Workstation - SFF 1 x Core i9 12900 / up to 5.1 GHz - RAM 32 GB - SSD 1 TB - HP Z Turbo Drive, NVMe, TLC - RTX A4000 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: UK - black
Brand: HP
SKU: 1TCOMDSK-243290
Price: 3771.01 GBP
Availability: OutOfStock

SKU

1TCOMDSK-243290

Manufacture#: 5F0S3EA#ABU

£3142.51

£3771.01 inc VAT

Checking delivery…

Product details

Wolf Pro Security
SFF
1 x Core i9 12900 / 2.4 GHz
RAM 32 GB

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

HP Workstation Z2 G9
Wolf Pro Security
SFF
1 x Core i9 12900 / 2.4 GHz
RAM 32 GB
SSD 1 TB
HP Z Turbo Drive, NVMe, TLC
RTX A4000
GigE, 802.11ax (Wi-Fi 6E), Bluetooth Dual-Mode
WLAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 wireless card
Win 11 Pro
monitor: none
keyboard: UK
black
with HP Wolf Pro Security Edition (1 year)

Overview

Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow-from 3D design to real time ray tracing-now and in the future.

Specification

Product Description HP Workstation Z2 G9 - Wolf Pro Security - SFF - Core i9 12900 2.4 GHz - 32 GB - SSD 1 TB - UK - with HP Wolf Pro Security Edition (1 year)

Type Workstation - small form factor

Localisation Language: English / region: United Kingdom

Processor 1 x Intel Core i9 (12th Gen) 12900 / 2.4 GHz (, up to 5.1 GHz, (16-core)

Processor Socket LGA1700 Socket

Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0, Intel vPro Platform Eligibility

Cache Memory 30 MB L3 Cache

Cache Per Processor 30 MB

RAM 32 GB (installed) / 128 GB (max) - DDR5 SDRAM - non-ECC

Storage Controller SATA/NVMe (SATA 6Gb/s / PCIe 4.0 x4 (NVMe))

Hard Drive SSD 1 TB - PCI Express 4.0 x4 - M.2 2280 - HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)

Optical Storage No optical drive

Multi-GPU Configuration 1 single GPU card / integrated GPU

Graphics Controller PCIe 4.0 x16 - NVIDIA RTX A4000 / Intel UHD Graphics 770

Video Memory 16 GB GDDR6 SDRAM

Networking GigE, 802.11a, 802.11b/g/n, Wi-Fi 5, 802.11ax (Wi-Fi 6E), Bluetooth Dual-Mode

Keyboard UK

OS Provided Windows 11 Pro

Software Included HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Driver Packs, HP Image Assistant, HP PC Hardware Diagnostics, HP ZCentral Remote Boost, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP Performance Advisor 3.0

Colour Black

Dimensions (WxDxH) 38.4 cm x 30.8 cm x 10 cm

Weight 5 kg

Manufacturer Warranty Limited warranty - parts and labour - 3 years - on-site

Bundled with HP Wolf Pro Security Edition (1 year)

General

Type Workstation

Product Form Factor Small form factor

Built-in Devices Speaker

Embedded Security Trusted Platform Module (TPM 2.0) Security Chip

Colour Black

Localisation Language: English / region: United Kingdom

Bundled with HP Wolf Pro Security Edition (1 year)

Processor / Chipset

CPU Intel Core i9 (12th Gen) 12900

Clock Speed 2.4 GHz (P-core) / 1.8 GHz (E-core)

Max Turbo Speed 5.1 GHz (P-core) / 3.8 GHz (E-core)

Number of Cores 16-core

CPU Qty 1

Max CPU Qty 1

L2 cache 14 MB

CPU Upgradability Upgradable

Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0, Intel vPro Platform Eligibility

CPU Socket LGA1700 Socket

Chipset Type Intel W680

Cache Memory

Installed Size L3 Cache - 30 MB

Cache Per Processor 30 MB

RAM

Installed Size 32 GB / 128 GB (max)

Technology DDR5 SDRAM - non-ECC

Effective Memory Speed 4800 MHz

Rated Memory Speed 4800 MHz

Form Factor DIMM 288-pin

Slots 4 (Total) / 2 (empty)

Features Unbuffered, dual channel memory architecture

Configuration Features 2 x 16 GB

Hard Drive

Type SSD - M.2 2280

Capacity 1 x 1 TB

Interface Type PCI Express 4.0 x4

Features HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)

Storage Controller

Type 1 x SATA/NVMe

Controller Interface Type SATA 6Gb/s / PCIe 4.0 x4 (NVMe)

Channel Qty 4

RAID Level RAID 0, RAID 1

Optical Storage

Type No optical drive

Monitor

Monitor Type None.

Graphics Controller

Interface Type PCIe 4.0 x16

Multi-GPU Configuration 1 single GPU card / integrated GPU

Graphics Processor NVIDIA RTX A4000 / Intel UHD Graphics 770

Video Memory 16 GB GDDR6 SDRAM

Bandwidth 448 GBps

Video Interfaces DisplayPort

Audio Output

Compliant Standards High Definition Audio

Speakers Included 1 x mixed channel

Input Device

Type Mouse, keyboard

Keyboard

Keyboard Name HP 320K

Interface USB

Localization & Layout UK

Mouse

Mouse Name HP 320M

Networking

Interface (Bus) Type M.2 2230 (CNVio2)

Ethernet Controller Intel I219-LM

Wireless LAN Supported Yes

Wireless NIC Intel Wi-Fi 6E AX 211

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth Dual-Mode

Features Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, dual stream (2x2)

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az

Expansion / Connectivity

Bays 1 (total) / 1 (free) x external 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 1 (total) / 1 (free) x internal 3.5"

Slots 1 (total) / 0 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (PCIe 3.0 x4 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 ¦ 3 (total) / 2 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (PCIe 3.0 x1 mode and Intel CNVi wireless module)

Interfaces 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) ¦ 4 x USB 3.2 Gen 2 (4 in front) (one of them is charging) ¦ 1 x USB-C 3.2 Gen 2x2 (1 in front) (charging) ¦ 1 x audio line-out ¦ 6 x DisplayPort 1.4 ¦ 3 x USB 2.0 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x LAN (Gigabit Ethernet)

Miscellaneous

Theft/Intrusion Protection Security lock slot (cable lock sold separately), padlock loop

Security Slot Type Kensington security slot

Compliant Standards RoHS, FIPS 140-2, WEEE, CECP, low halogen

Power

Device Type Power supply

Power Provided 550 Watt

Efficiency 92%

Power Factor Correction Yes (active)

Operating System / Software

OS Provided Windows 11 Pro English

Software HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Driver Packs, HP Image Assistant, HP PC Hardware Diagnostics, HP ZCentral Remote Boost, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP Performance Advisor 3.0

Manufacturer Warranty

Service & Support Limited warranty - parts and labour - 3 years - on-site

Dimensions & Weight

Width 38.4 cm

Depth 30.8 cm

Height 10 cm

Weight 5 kg

Dimensions & Weight (Shipping)

Shipping Width 19.9 cm

Shipping Depth 49 cm

Shipping Height 51.4 cm

Shipping Weight 5.9 kg
