General
Platform Technology
Intel vPro Platform
Type
Workstation
Product Form Factor
Mini
Built-in Devices
Speaker
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Localisation
Language: English / region: United Kingdom
Processor / Chipset
CPU
Intel Core i7 (10th Gen) 10700
Clock Speed
2.9 GHz
Max Turbo Speed
4.8 GHz
Number of Cores
8-core
CPU Qty
1
Max CPU Qty
1
CPU Upgradability
Upgradable
Processor Main Features
Intel Turbo Boost Technology 2
CPU Socket
FCLGA1200 Socket
Chipset Type
Intel W480
Cache Memory
Installed Size
L3 Cache - 16 MB
Cache Per Processor
16 MB
RAM
Installed Size
16 GB / 64 GB (max)
Technology
DDR4 SDRAM - non-ECC
Effective Memory Speed
3200 MHz
Rated Memory Speed
3200 MHz
Memory Specification Compliance
PC4-25600
Form Factor
SO-DIMM 260-pin
Slots
2 (Total) / 0 (empty)
Features
Dual channel memory architecture
Configuration Features
2 x 8 GB
Hard Drive
Type
SSD - M.2 2280
Capacity
1 x 256 GB
Interface Type
PCI Express 3.0 x4
Features
HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)
Storage Controller
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
RAID Level
RAID 0, RAID 1
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Interface Type
PCIe 3.0 x16
Multi-GPU Configuration
1 single GPU card / integrated GPU
Graphics Processor
NVIDIA Quadro P620 / Intel UHD Graphics 630
Video Memory
4 GB GDDR5 SDRAM
Video Interfaces
DisplayPort
Max Monitors Supported
3
Audio Output
Compliant Standards
High Definition Audio
Input Device
Type
Mouse, keyboard
Keyboard
Keyboard Name
HP 320K
Interface
USB
Localization & Layout
UK
Mouse
Mouse Name
HP Premium
Interface
USB
Networking
Ethernet Controller
Intel I219-LM
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Features
Wake on LAN (WoL), PXE support, auto-uplink (auto MDI/MDI-X)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az
Expansion / Connectivity
Slots
1 (total) / 1 (free) x M.2 Card - 2230 (x1 mode) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (x4 mode) ¦ 1 (total) / 0 (free) x MXM (x16 mode)
Interfaces
4 x USB 3.1 Gen 2 (2 rear, 2 side) (one of them is charging) ¦ 1 x headphones/microphone (1 side) ¦ 1 x LAN (Gigabit Ethernet) ¦ 3 x DisplayPort ¦ 1 x USB-C 3.1 Gen 2 (1 side) (charging)
Miscellaneous
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Security Slot Type
Kensington security slot
Compliant Standards
ACPI, RoHS, WEEE, Common Criteria EAL4+, CECP

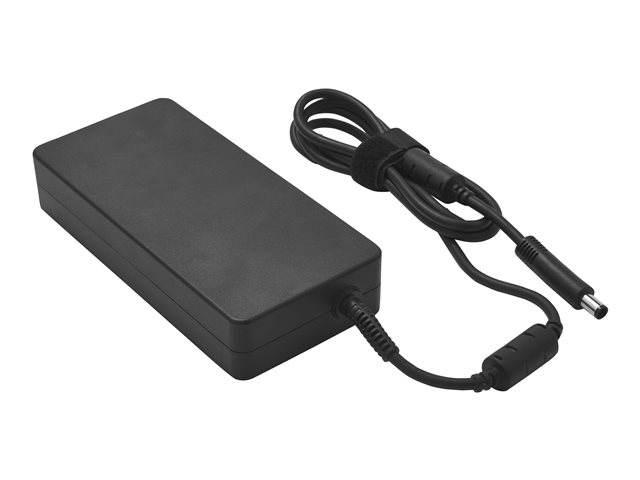

Power
Device Type
Power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
280 Watt
Efficiency
89%
Operating System / Software
OS Provided
Windows 10 Pro 64-bit Edition English
Software
HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Image Assistant, HP PC Hardware Diagnostics, HP Sure Click, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Sure Recover Gen3, HP Client Security Manager Gen6, HP SureStart Gen6, HP SureRun Gen3, HP BIOSphere Gen6, HP ZCentral Remote Boost
Manufacturer Warranty
Service & Support
Limited warranty - parts and labour - 3 years - on-site
Dimensions & Weight
Width
21.6 cm
Depth
21.6 cm
Height
5.8 cm
Weight
2.1 kg
Dimensions & Weight (Shipping)
Shipping Width
17 cm
Shipping Depth
49.9 cm
Shipping Height
29.8 cm
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 85% (non-condensing)
