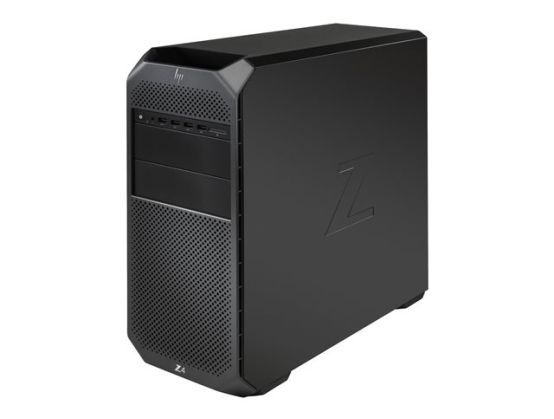

HP Workstation Z4 G4 - MT - Xeon W-2223 3.6 GHz - vPro - 16 GB - SSD 256 GB, HDD 1 TB - UK

Name: HP Workstation Z4 G4 - MT - Xeon W-2223 3.6 GHz - vPro - 16 GB - SSD 256 GB, HDD 1 TB - UK
Brand: HP
SKU: 1TCOMDSK-243070
Price: 2236.76 GBP
Availability: OutOfStock

SKU

1TCOMDSK-243070

Manufacture#: 9LP40EA#ABU

£1863.97

£2236.76 inc VAT

Checking delivery…

Product details

MT
4U
1 x Xeon W-2223 / 3.6 GHz
vPro

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

HP Workstation Z4 G4
MT
4U
1 x Xeon W-2223 / 3.6 GHz
vPro
RAM 16 GB
SSD 256 GB
HP Z Turbo Drive, NVMe, TLC, HDD 1 TB
DVD-Writer
no graphics
GigE
Win 10 Pro for Workstations 64-bit
monitor: none
keyboard: UK
black

Overview

Perfect for engineering, visualization and Machine Learning, HP's most popular workstation delivers disruptive performance for a wide spectrum of applications. With a choice of Intel Xeon or Core X processors, and support for dual extreme graphics, you get all you need, nothing more.

Specification

Product Description HP Workstation Z4 G4 - MT - Xeon W-2223 3.6 GHz - vPro - 16 GB - SSD 256 GB, HDD 1 TB - UK

Type Workstation - mini tower

Platform Technology Intel vPro Platform

Height (Rack Units) 4U

Localisation Language: English / region: United Kingdom

Processor 1 x Intel Xeon W-2223 / 3.6 GHz (3.9 GHz) (Quad-Core)

Processor Socket LGA2066 Socket

Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2

Cache Memory 8.25 MB L3 Cache

Cache Per Processor 8.25 MB

RAM 16 GB (installed) / 512 GB (max) - DDR4 SDRAM - ECC

Storage Controller SATA/NVMe (SATA-600 / NVMe)

Hard Drive SSD 256 GB - PCI Express 3.0 x4 (NVMe) - M.2 2280 - HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)

Hard Drive (2nd) HDD 1 TB - SATA 6Gb/s - 7200 rpm

Optical Storage DVD-Writer

Card Reader Yes

Graphics Controller No graphics

Networking GigE

Keyboard UK

Power (50/60 Hz)

OS Provided Windows 10 Pro for Workstations 64-bit Edition

Colour Black

Dimensions (WxDxH) 16.9 cm x 44.5 cm x 38.6 cm

Weight 10.2 kg

Environmental Standards ENERGY STAR Qualified

Manufacturer Warranty Limited warranty - parts and labour - 3 years - on-site

General

Platform Technology Intel vPro Platform

Type Workstation

Product Form Factor Mini tower - 4U

Built-in Devices Speaker, HP Z4 Standard CPU Cooling Solution

Embedded Security Trusted Platform Module (TPM 2.0) Security Chip

Colour Black

Localisation Language: English / region: United Kingdom

Processor / Chipset

CPU Intel Xeon W-2223

Clock Speed 3.6 GHz

Max Turbo Speed 3.9 GHz

Number of Cores Quad-Core

CPU Qty 1

Max CPU Qty 1

CPU Upgradability Upgradable

Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2

CPU Socket LGA2066 Socket

Chipset Type Intel C422

Cache Memory

Installed Size L3 Cache - 8.25 MB

Cache Per Processor 8.25 MB

RAM

Installed Size 16 GB / 512 GB (max)

Technology DDR4 SDRAM - ECC

Effective Memory Speed 2666 MHz

Rated Memory Speed 2933 MHz

Form Factor DIMM 288-pin

Slots 8 (Total) / 6 (empty)

Configuration Features 2 x 8 GB

Hard Drive

Type SSD - M.2 2280

Capacity 1 x 256 GB

Interface Type PCI Express 3.0 x4 (NVMe)

Features HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)

Hard Drive (2nd)

Type HDD

Interface Class Serial ATA

Capacity 1 x 1 TB

Interface Type SATA 6Gb/s

Spindle Speed 7200 rpm

Storage Controller

Type 1 x SATA/NVMe

Controller Interface Type SATA-600 / NVMe

Channel Qty 6

RAID Level RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage

Type DVD-Writer - SATA

Card Reader

Type Card reader

Supported Flash Memory Cards SD Memory Card, SDHC UHS-II Memory Card, SDXC UHS-II Memory Card

Monitor

Monitor Type None.

Graphics Controller

Graphics Processor No graphics

Audio Output

Compliant Standards High Definition Audio

Speakers Included 1 x mixed channel

Input Device

Type Mouse, keyboard

Keyboard

Keyboard Name HP Business Slim Keyboard

Interface USB

Localization & Layout UK

Mouse

Mouse Name HP Hardened

Interface USB

Networking

Ethernet Ports 2 x Gigabit Ethernet

Ethernet Controller Intel I219-LM, I210

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Features Wake on LAN (WoL), PXE support

Expansion / Connectivity

Bays 2 (total) / 1 (free) x external 5.25" ¦ 2 (total) / 1 (free) x internal 2.5" / 3.5" shared

Slots 2 (total) / 2 (free) x PCIe 3.0 x16 ¦ 2 (total) / 2 (free) x PCIe 3.0 x4 (open ended) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (open ended) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 3.0 x4 mode)

Interfaces 8 x USB 3.1 Gen 1 (2 front, 6 rear) (one of them is charging) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x audio line-in ¦ 1 x audio line-out ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 2 x LAN (Gigabit Ethernet) ¦ 2 x USB-C 3.1 Gen 2

Miscellaneous

Included Accessories HP Z4 G4 Fan and Front Card Guide Kit

Theft/Intrusion Protection Security lock slot (cable lock sold separately), padlock loop

Security Slot Type Kensington security slot

Compliant Standards ACPI, RoHS, FIPS 140-2, Common Criteria EAL4+, WEEE 2002/96/EC, ISO 11469, ISO 1043

Power

Device Type Power supply

Voltage Required AC 100-240 V (50/60 Hz)

Power Provided 750 Watt

80 PLUS Certification 80 PLUS

Efficiency 90%

Power Factor Correction Yes (active)

Operating System / Software

OS Provided Windows 10 Pro for Workstations 64-bit Edition English

Software HP Remote Graphics Software

Environmental Standards

ENERGY STAR Certified Yes

Manufacturer Warranty

Service & Support Limited warranty - parts and labour - 3 years - on-site

Dimensions & Weight

Width 16.9 cm

Depth 44.5 cm

Height 38.6 cm

Weight 10.2 kg

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 35 °C

Humidity Range Operating 10 - 85% (non-condensing)
