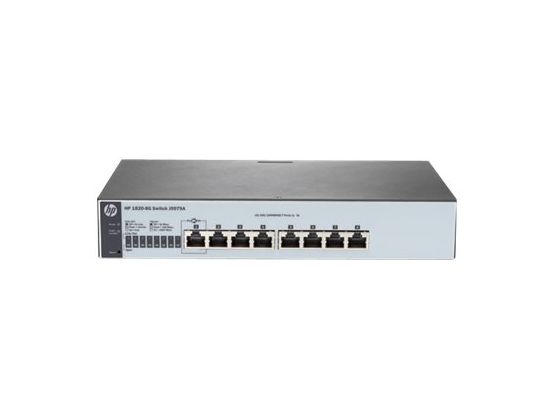

HPE 1820 Switch Series devices are basic, smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution.¦All 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.¦These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple Web browser-based GUI, if necessary. Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking, and DSCP QoS policies. All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down.
Simple Web management
SNMPv1, v2c
Port mirroring
Dual flash images
Network Time Protocol (NTP)
Manual network time configuration
Default DHCP client mode
Traffic prioritization
Broadcast control
IEEE 802.1p/Q
Auto-MDI/MDIX
IEEE 802.3X Flow Control
Loop protection
SFP ports for fiber connectivity
IEEE 802.3af PoE-powered device option
IEEE 802.3at Power over Ethernet (PoE+)
PoE+ port availability
Auto-PoE power configuration
PoE shutdown mode
Energy Efficient Ethernet
Auto-port shutdown
Energy savings status
Secure Sockets Layer (SSL)
Automatic denial-of-service protection
Management password
Half-/full-duplex auto-negotiating capability on every port doubles the throughput of every port
IGMP snooping
VLAN support and tagging
Jumbo packet support
EEE 802.1D Spanning Tree Protocol (STP) and IEEE 802.1W Rapid Spanning Tree Protocol (RSTP)
Link aggregation (trunking)
Locator LED
Comprehensive LED display with per-port indicators
Compliant StandardsFCC Class A certified, VCCI, EN 60950, EN 61000-3-2, EN55022, ICES-003, IEC 60950, EN 61000-3-3, EN55024, UL 60950, CSA 22.2 No. 60950, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8
