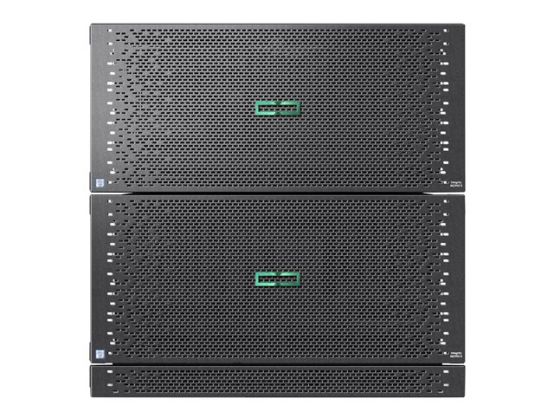

Do you need a high performance server with greater in-memory computing capacity, reliability, and cost-efficiency? The HPE Integrity MC990 X Server delivers in-memory computing performance for Linux -based applications at unparalleled scale with mission-critical reliability and modular flexibility. An advanced symmetric multiprocessing (SMP) system designed for data-intensive workloads, the HPE MC990 X Server features the enterprise-class Intel Xeon E7-8800/4800 v4 processors and robust reliability, availability, and serviceability. The 5U modular chassis contains 4 sockets with up to 192 threads. By adding chassis and leveraging high bandwidth, low latency NUMAlink technology, the HPE MC990 X Server can scale as a single system from 4 to 32 sockets and from 1 to 48 TB of cache-coherent shared memory.
Manufacturer WarrantyLimited warranty - 3 years - on-site - response time: next business day
Bundled withHPE 1U Rack Management Controller
Extended Specification
General
TypeServer
Product Form FactorRack-mountable - 11U
Server Scalability8-way
Internal Bays Qty4
Bundled withHPE 1U Rack Management Controller
Processor / Chipset
CPUIntel Xeon E7-8867V4
Clock Speed2.4 GHz
Max Turbo Speed3.3 GHz
Number of Cores18-core
CPU Qty8
Max CPU Qty8
Cache Memory
Installed SizeL3 Cache - 360 MB
Cache Per Processor45 MB
RAM
Installed Size0 GB / 6 TB (max)
TechnologyDDR4 SDRAM
Effective Memory Speed2133 MHz
Form FactorDIMM 288-pin
Slots192 (Total) / 192 (empty)
RAM Supported6 TB
Hard Drive
TypeNo HDD
Optical Storage
TypeNo optical drive
Monitor
Monitor TypeNone.
Graphics Controller
Video Memory128 MB DDR2 SDRAM
Video InterfacesVGA
Expansion / Connectivity
Bays4 (total) / 4 (free) x internal 2.5" ¦ 2 (total) / 2 (free) x 1.8"
Slots8 (total) / 0 (free) x CPU ¦ 192 (total) / 192 (free) x DIMM 288-pin ¦ 12 (total) / 12 (free) x PCIe 3.0 x8 ¦ 8 (total) / 8 (free) x PCIe 3.0 x16
Interfaces4 x USB ¦ 2 x LAN (Gigabit Ethernet) / HPE RMC - RJ-45 ¦ 2 x VGA ¦ 2 x serial ¦ 28 x NUMAlink
Miscellaneous
Compliant StandardsACPI, FCC Class A certified, CSA, UL, VCCI, BSMI, CISPR 24, EN 60950, EN 61000-3-2, EN 61000-3-3, EN55024, UL 60950, ICES-003 Class A, NMB-3 Class A
Power
Device TypePower supply - hot-plug
Power RedundancyYes
Installed Qty8
Max Supported Qty8
Voltage RequiredAC 120/230 V (50/60 Hz)
Operating System / Software
OS ProvidedNo operating system
OS CertifiedRed Hat Enterprise Linux, SuSE Linux Enterprise Server 11, Oracle Linux, SuSE Linux Enterprise Server 12
Manufacturer Warranty
Service & SupportLimited warranty - 3 years - on-site - response time: next business day
