HPE

HPE OEM DL380 GEN10 24-SFF CTO SERVE

Name: HPE OEM DL380 GEN10 24-SFF CTO SERVE
Brand: HPE
SKU: 1TCPTCPU-015220
Price: 3872.08 GBP
Availability: OutOfStock

SKU

1TCPTCPU-015220

Manufacture#: 869119-B21

£3226.73

£3872.08 inc VAT

Checking delivery…

Product details

Server
rack-mountable
2U
2-way

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

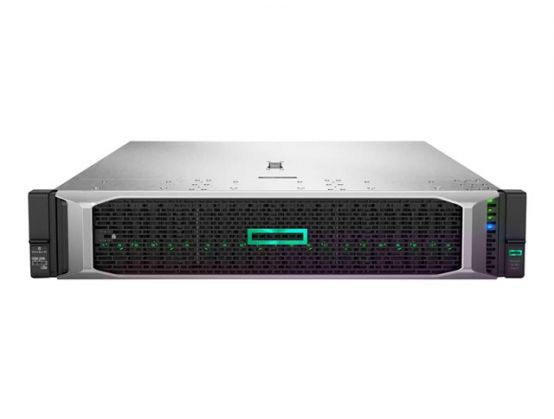

HPE ProLiant DL380 Gen10
Server
rack-mountable
2U
2-way
no CPU
RAM 0 GB
SATA
hot-swap 2.5" bay(s)
no HDD
Gigabit Ethernet
monitor: none
CTO, OEM

Overview

The HPE ProLiant DL380 Gen10 server delivers great security, performance and expandability. It's securely designed to reduce costs and complexity.

Specification

Product Description HPE ProLiant DL380 Gen10 - rack-mountable - no CPU - 0 GB - no HDD

Type Server - rack-mountable

Height (Rack Units) 2U

Server Scalability 2-way

Processor No CPU

Processor Socket FCLGA3647 Socket

RAM 0 GB (installed) / 3 TB (max) - DDR4 SDRAM - Advanced ECC

Storage Controller SATA (SATA 6Gb/s) (HPE Smart Array S100i SR Software)

Server Storage Bays Hot-swap 2.5"

Hard Drive No HDD

Optical Storage No optical drive

Card Reader Yes

Video Memory 16 MB

Networking 1GbE

Power AC 120/230 V (50/60 Hz)

Power Redundancy Optional

Software Included HPE Server UEFI

Dimensions (WxDxH) 44.55 cm x 67.94 cm x 8.73 cm

Weight 14.9 kg

Pricing Type CTO, OEM

Manufacturer Warranty Limited warranty - parts and labour - 3 years - on-site - response time: next business day ¦ Technical support - software application support - 90 days

General

Type Server

Product Form Factor Rack-mountable - 2U

Built-in Devices Led panel

Server Scalability 2-way

Hot-Swap Bays Qty 24

Processor / Chipset

CPU No CPU

Max CPU Qty 2

CPU Upgradability Upgradable

CPU Socket FCLGA3647 Socket

Chipset Type Intel C621

RAM

Installed Size 0 GB / 3 TB (max)

Technology DDR4 SDRAM - Advanced ECC

Form Factor DIMM 288-pin

Slots 24 (Total) / 24 (empty)

Features Registered, mixing of different types of memory modules is not supported, Load-Reduced DIMM (LRDIMM), slots 13 - 24 are available in two-processor configuration only

RAM Supported 3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC

Hard Drive

Type No HDD

Storage Controller

Type 1 x SATA

Controller Interface Type SATA 6Gb/s

Storage Controller Name HPE Smart Array S100i SR Software

Channel Qty 14

Optical Storage

Type No optical drive

Card Reader

Type Card reader

Supported Flash Memory Cards microSD

Monitor

Monitor Type None.

Graphics Controller

Video Memory 16 MB

Video Interfaces VGA

Networking

Ethernet Ports 4 x Gigabit Ethernet

Ethernet Controller HP 331i

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Protocol SNMP 3, IPMI 2.0, SMASH CLP

Remote Management Controller Integrated Lights-Out 5

Features Wake on LAN (WoL), PXE support

Expansion / Connectivity

Bays 1 (total) / 1 (free) x external Universal Media Bay ¦ 24 (total) / 24 (free) x hot-swap 2.5" SFF

Slots 1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal)

Interfaces 1 x HPE iLO - Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) ¦ 1 x VGA (1 rear)

Miscellaneous

Included Accessories 6 performance fans

Cables Included Power cable

Compliant Standards AES, FIPS 140-2, IPv6 Ready, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1

Pricing Type CTO, OEM

Power

Device Type Power supply - hot-plug

Power Redundancy Optional

Power Redundancy Scheme 1+1 (with optional power supply)

Installed Qty

Max Supported Qty 2

Voltage Required AC 120/230 V (50/60 Hz)

Operating System / Software

OS Certified CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, ClearOS

Software HPE Server UEFI

Manufacturer Warranty

Service & Support Limited warranty - parts and labour - 3 years - on-site - response time: next business day ¦ Technical support - software application support - 90 days

Dimensions & Weight

Width 44.55 cm

Depth 67.94 cm

Height 8.73 cm

Weight 14.9 kg

Environmental Parameters

Min Operating Temperature 10 °C

Max Operating Temperature 35 °C

Humidity Range Operating 8 - 90% (non-condensing)

Sound Emission 34 dBA
