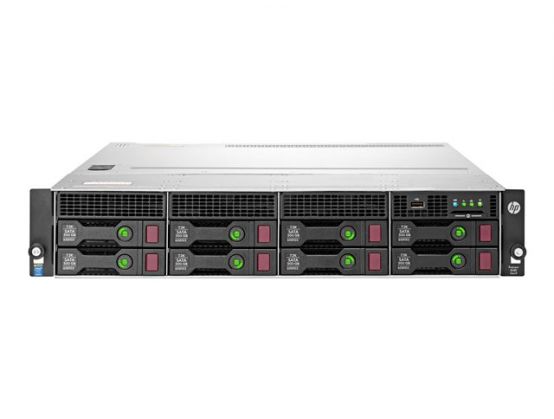

HPE ProLiant DL80 Gen9 Base - rack-mountable Xeon E5-2609V3 1.9 GHz - 8 GB - no HDD

Name: HPE ProLiant DL80 Gen9 Base - rack-mountable Xeon E5-2609V3 1.9 GHz - 8 GB - no HDD
Brand: HPE
SKU: 1TCOMSRV-008502
Price: 1796 GBP
Availability: OutOfStock

SKU

1TCOMSRV-008502

Manufacture#: 778641-B21

Be the first to review this product

£1496.67

£1796.00 inc VAT

Order by 15:00 and receive your order on Monday 19 May

Product details

Server
rack-mountable 2U
2-way
1 x Xeon E5-2609V3 up to

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

HPE ProLiant DL80 Gen9 Base
Server
rack-mountable 2U
2-way
1 x Xeon E5-2609V3 up to
RAM 8 GB
SAS
hot-swap 3.5" bay(s)
no HDD
G200eH2
Gigabit Ethernet
monitor: none

Overview

Do you need an affordable storage server for capacity intensive applications? The HPE ProLiant DL80 Gen9 Server is designed with affordable storage, networking, processor scalability, and manageability in a 2U server for cost conscious service providers and small and medium businesses (SMBs). Apart from basic IT infrastructure workloads this server is ideal for running storage capacity intensive applications like cold storage and back-up with its compelling cost/GB.

Specification

Product Description HPE ProLiant DL80 Gen9 Base - rack-mountable Xeon E5-2609V3 1.9 GHz - 8 GB - no HDD

Type Server - rack-mountable - administrator password, power-on password, UEFI BIOS

Height (Rack Units) 2U

Localisation Region: Worldwide

Server Scalability 2-way

Processor 1 x Intel Xeon E5-2609V3 / 1.9 GHz (6-core)

Cache Memory 15 MB L3 Cache

Cache Per Processor 15 MB

RAM 8 GB (installed) / 128 GB (max) - DDR4 SDRAM - Advanced ECC - PC4-17000

Storage Controller RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (HP H240 Smart Host Bus Adapter)

Server Storage Bays Hot-swap 3.5"

Hard Drive No HDD

Optical Storage No optical drive

Graphics Controller Matrox G200eH2

Networking 1GbE

Power AC 120/230 V (50/60 Hz)

Dimensions (WxDxH) 44.55 cm x 60.7 cm x 8.75 cm

Weight 16.59 kg

Manufacturer Warranty Limited warranty - parts and labour - 1 year - on-site - response time: next business day

General

Type Server

Product Form Factor Rack-mountable - 2U

Embedded Security Trusted Platform Module (TPM 1.2) Security Chip

Server Scalability 2-way

Hot-Swap Bays Qty 8

Localisation Region: Worldwide

Processor / Chipset

CPU Intel Xeon E5-2609V3

Clock Speed 1.9 GHz

Number of Cores 6-core

CPU Qty 1

Max CPU Qty 2

CPU Upgradability Upgradable

Cache Memory

Installed Size L3 Cache - 15 MB

Cache Per Processor 15 MB

RAM

Installed Size 8 GB (installed) / 128 GB (max)

Technology DDR4 SDRAM - Advanced ECC

Effective Memory Speed 1600 MHz

Rated Memory Speed 2133 MHz

Memory Specification Compliance PC4-17000

Form Factor DIMM 288-pin

Slots 8 (Total) / 7 (empty)

Features Registered, Online Spare Memory, quad channel memory architecture, HP SmartMemory

Configuration Features 1 x 8 GB

RAM Supported 128 GB registered ¦ 256 GB Load-Reduced

Hard Drive

Type No HDD

Storage Controller

Type 1 x RAID - plug-in card - PCIe 3.0 x8

Controller Interface Type SATA 6Gb/s / SAS 12Gb/s

Storage Controller Name HP H240 Smart Host Bus Adapter

Channel Qty 8

RAID Level RAID 0, RAID 1, RAID 5

Optical Storage

Type No optical drive

Monitor

Monitor Type None.

Graphics Controller

Type Integrated

Graphics Processor Matrox G200eH2

Video Interfaces VGA

Networking

Type Integrated

Interface (Bus) Type PCI Express 2.0 x2

Ethernet Ports 2 x Gigabit Ethernet

Ethernet Controller HP NC361i

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Controller Integrated Lights-Out 4

Features Wake on LAN (WoL), PXE support

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Expansion / Connectivity

Bays 8 (total) / 8 (free) x hot-swap 3.5" LFF

Slots 2 (total) / 1 (free) x CPU ¦ 8 (total) / 7 (free) x DIMM 288-pin ¦ 3 (total) / 3 (free) x PCIe 3.0 x16 - low-profile ¦ 2 (total) / 1 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x microSD Card (internal)

Interfaces 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x USB 2.0 (1 in front) ¦ 3 x USB 3.0 (2 rear, 1 internal)

Miscellaneous

Included Accessories HP Easy Install Rails

Features Administrator password, power-on password, UEFI BIOS

Compliant Standards ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 4943, GB 9254, ASHRAE, CNS 13438, BSMI CNS 14336-1

Power

Device Type Power supply

Voltage Required AC 120/230 V (50/60 Hz)

Power Provided 550 Watt

Operating System / Software

OS Certified SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris

Manufacturer Warranty

Service & Support Limited warranty - parts and labour - 1 year - on-site - response time: next business day

Dimensions & Weight

Width 44.55 cm

Depth 60.7 cm

Height 8.75 cm

Weight 16.59 kg

Environmental Parameters

Min Operating Temperature 10 °C

Max Operating Temperature 35 °C

Humidity Range Operating 8 - 90% (non-condensing)
