HPE

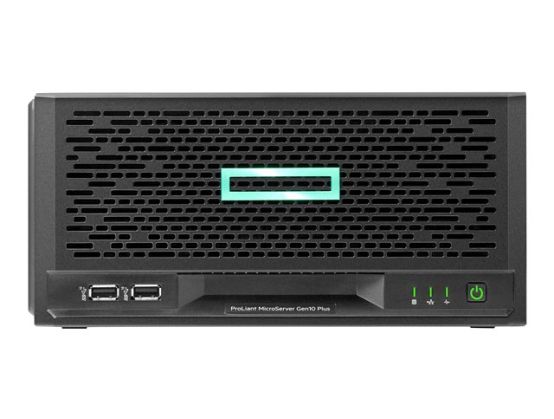

HPE ProLiant MicroServer Gen10 Plus Entry - Server - ultra micro tower 1-way - 1 x Pentium Gold G5420 - RAM 8 GB - SATA - non-hot-swap 3.5" bay(s) - no HDD - UHD Graphics 610 - Gigabit Ethernet - no OS - monitor: none

Name: HPE ProLiant MicroServer Gen10 Plus Entry - Server - ultra micro tower 1-way - 1 x Pentium Gold G5420 - RAM 8 GB - SATA - non-hot-swap 3.5" bay(s) - no HDD - UHD Graphics 610 - Gigabit Ethernet - no OS - monitor: none
Brand: HPE
SKU: 1TCOMSRV-007539
Price: 680.36 GBP
Availability: OutOfStock

SKU

1TCOMSRV-007539

Manufacture#: P16005-421

£566.97

£680.36 inc VAT

Checking delivery…

Product details

Server
ultra micro tower 1-way
1 x Pentium Gold G5420
RAM 8 GB

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

HPE ProLiant MicroServer Gen10 Plus Entry
Server
ultra micro tower 1-way
1 x Pentium Gold G5420
RAM 8 GB
SATA
non-hot-swap 3.5" bay(s)
no HDD
UHD Graphics 610
Gigabit Ethernet
no OS
monitor: none

Overview

The HPE ProLiant MicroServer Gen10 delivers an affordable compact entry level server specifically designed for small offices, home offices, or small business environments.

Specification

Product Description HPE ProLiant MicroServer Gen10 Plus Entry - ultra micro tower Pentium Gold G5420 3.8 GHz - 8 GB - no HDD

Type Server - ultra micro tower

Localisation Region: Europe

Server Scalability 1-way

Processor 1 x Intel Pentium Gold G5420 / 3.8 GHz (Dual-Core)

Processor Socket LGA1151 Socket

Processor Main Features Hyper-Threading Technology, Intel Smart Cache

Cache Memory 4 MB

Cache Per Processor 4 MB

RAM 8 GB (installed) / 32 GB (max) - DDR4 SDRAM - ECC - PC4-21333

Storage Controller RAID (SATA 6Gb/s) - PCIe 3.0 x4 (HPE Smart Array S100i SR Software RAID)

Server Storage Bays Non-hot-swap 3.5"

Hard Drive No HDD

Optical Storage No optical drive

Graphics Controller Intel UHD Graphics 610

Networking 1GbE

Power AC 120/230 V (50/60 Hz)

OS Provided No operating system

Dimensions (WxDxH) 24.5 cm x 24.5 cm x 11.89 cm

Weight 4.23 kg

Manufacturer Warranty Limited warranty - parts and labour - 1 year - on-site - response time: next business day

General

Type Server

Product Form Factor Ultra micro tower

Server Scalability 1-way

Internal Bays Qty 4

Localisation Region: Europe

Processor / Chipset

CPU Intel Pentium Gold G5420

Clock Speed 3.8 GHz

Number of Cores Dual-Core

CPU Qty 1

Max CPU Qty 1

CPU Upgradability Upgradable

Processor Main Features Hyper-Threading Technology, Intel Smart Cache

CPU Socket LGA1151 Socket

Chipset Type Intel C242

Cache Memory

Installed Size 4 MB

Cache Per Processor 4 MB

RAM

Installed Size 8 GB (installed) / 32 GB (max)

Technology DDR4 SDRAM - ECC

Effective Memory Speed 2400 MHz

Rated Memory Speed 2666 MHz

Memory Specification Compliance PC4-21333

Form Factor DIMM 288-pin

Slots 2 (Total) / 1 (empty)

Features Unbuffered

Configuration Features 1 x 8 GB

Hard Drive

Type No HDD

Storage Controller

Type 1 x RAID - PCIe 3.0 x4

Controller Interface Type SATA 6Gb/s

Storage Controller Name HPE Smart Array S100i SR Software RAID

Channel Qty 14

RAID Level RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage

Type No optical drive

Monitor

Monitor Type None.

Graphics Controller

Graphics Processor Intel UHD Graphics 610

Video Interfaces VGA, DisplayPort

Networking

Ethernet Ports 4 x Gigabit Ethernet

Ethernet Controller Intel I350-AM4

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Protocol SNMP 3, IPMI 2.0, SMASH CLP

Features Wake on LAN (WoL), ACPI support, PXE support

Expansion / Connectivity

Bays 4 (total) / 4 (free) x internal 3.5" LFF

Slots 1 (total) / 1 (free) x PCIe 3.0 x16 - low-profile ¦ 1 (total) / 1 (free) x expansion slot (iLO Enablement Kit slot)

Interfaces 1 x VGA ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 (2 in front) ¦ 4 x LAN (Gigabit Ethernet)

Miscellaneous

Theft/Intrusion Protection Security lock slot (cable lock sold separately), padlock loop

Security Slot Type Kensington security slot

Compliant Standards FCC Class B certified, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AES, FCC CFR47 Part 15, Triple DES, EMC Class B, GB 9254, CNS 13438, TLS v1.2, K24, CISPR 32, EN 55032, K32, ASHRAE Class A2, Redfish API, UEFI

Power

Device Type Power adapter

Voltage Required AC 120/230 V (50/60 Hz)

Power Provided 180 Watt

Operating System / Software

OS Provided No operating system

OS Certified Microsoft Windows Server 2016, ClearOS, Red Hat Enterprise Linux 8.0, Microsoft Windows Server 2019, VMware ESXi 6.5 update 3, VMware ESXi 6.7 update 3, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 7.7

Manufacturer Warranty

Service & Support Limited warranty - parts and labour - 1 year - on-site - response time: next business day

Dimensions & Weight

Width 24.5 cm

Depth 24.5 cm

Height 11.89 cm

Weight 4.23 kg

Environmental Parameters

Min Operating Temperature 10 °C

Max Operating Temperature 35 °C

Humidity Range Operating 10 - 90% (non-condensing)

Sound Emission 21 dBA
