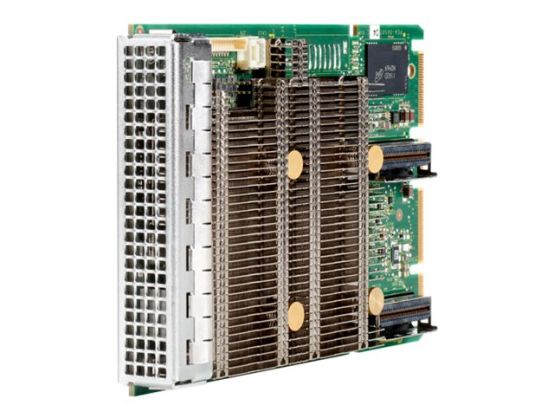

HPE SR416ie-m Gen11 - Storage controller - 16 Channel - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - RAID RAID 0, 1, 5, 6, 10, 50, 60, RAID 1T, RAID 10T - PCIe 4.0 x16 - for HPE SAS SR416ie-m Controller Cable Kit
£2446 .08
£2935.30 inc VAT
Checking delivery…
Product details
Storage controller
16 Channel
SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
RAID RAID 0, 1, 5, 6, 10, 50, 60, RAID 1T, RAID 10T
Payment options available at checkout
Main features
HPE SR416ie-m Gen11
Storage controller
16 Channel
SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
RAID RAID 0, 1, 5, 6, 10, 50, 60, RAID 1T, RAID 10T
PCIe 4.0 x16
for HPE SAS SR416ie-m Controller Cable Kit
Overview
Does your data center need increased storage, protection, flexibility, and performance for today's applications demands? HPE Compute SR 900 Series Gen11 Controller supports 24Gb/s SAS and PCIe 4.0 for increased performance while supporting advanced RAID levels with 8 GB flash-backed write cache (FBWC). This tri-mode (SAS/SATA/NVMe) controller operates in mixed mode which combines RAID and HBA operations simultaneously, giving you improved deployment flexibility. The HPE Compute SR932i-p Gen11 Controller provides the ability to support internally attached drives, allowing integration with existing hardware. This controller also features HPE SR Secure Encryption for data-at-rest using controller-based Encryption(CBE) for SAS, SATA and NVMe devices which improves reliability. The Gen11 features Hardware Root of Trust, and Security Protection Data Model (SPDM) support.
Product Description
HPE SR416ie-m Gen11 - storage controller - SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - PCIe 4.0 x16
Device Type
Storage controller - plug-in card
Bus Type
PCIe 4.0 x16
Interface
SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
Data Transfer Rate
46 Gbit/s
Buffer Size
4 GB
Supported Devices
Disk array (RAID), solid state drive
Channel Qty
16
Max Storage Devices Qty
16
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1T, RAID 10T
System Requirements
SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Ubuntu, VMware ESXi
Dimensions (WxDxH)
24.13 cm x 5.71 cm x 19.05 cm
Weight
400 g
Manufacturer Warranty
3-year warranty
Designed For
HPE SAS SR416ie-m Controller Cable Kit
General
Device Type
Storage controller - plug-in card
Host Bus
PCIe 4.0 x16
Storage Controller
Interface
SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe)
Data Transfer Rate
46 Gbit/s
Buffer Size
4 GB
Supported Devices
Disk array (RAID), solid state drive
Channel Qty
16
Max Storage Devices Qty
16
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1T, RAID 10T
Expansion / Connectivity
Interfaces
4 x SATA 6Gb/s / SAS 24Gb/s / PCIe 4.0 (NVMe) - Slim SAS x8
Connections
1 x PCIe 4.0 x16
Miscellaneous
Features
SecureBoot, Hardware Root of Trust, Bootable RAID Array support, Flash Backed Write Cache (FBWC), full-height, half-length, read ahead caching, write-back caching, mixed mode (RAID & HBA), SED key management, Security Protection Data Model (SPDM), SMART Predictive Drive Failure
Software / System Requirements
Software Included
UEFI System Utilities (storage configuration), HPE Smart Storage Administrator (SSA), Smart Storage Administrator Command Line Interface (SSA CLI)
OS Required
SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Ubuntu, VMware ESXi
Manufacturer Warranty
Service & Support
Limited warranty - parts - 3 years
Dimensions & Weight
Width
24.13 cm
Depth
5.71 cm
Height
19.05 cm
Weight
400 g
Compatibility Information
Designed For
HPE SAS SR416ie-m Controller Cable Kit
