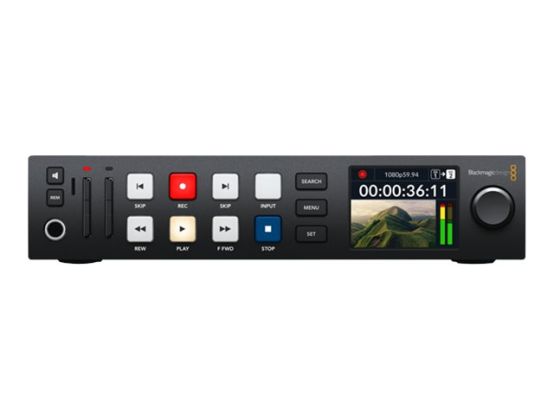

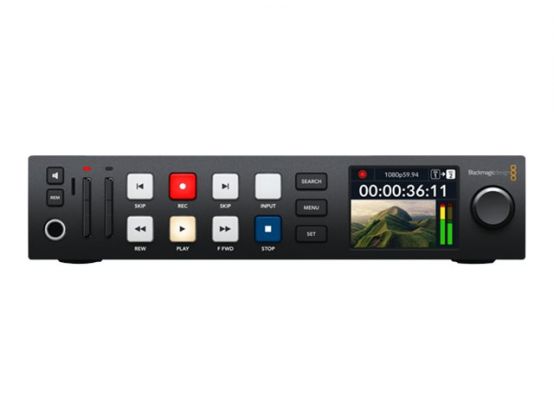

Product DescriptionBlackmagic HyperDeck Studio HD Plus dual slot SD card broadcast deck
TypeDual slot SD card broadcast deck
Dimensions (WxDxH)21 cm - 17.7 cm - 4.42 cm
Weight1.15 kg
Manufacturer Warranty1 year
Extended Specification
General
TypeDual slot SD card broadcast deck
Width21 cm
Depth17.7 cm
Height4.42 cm
Weight1.15 kg
Power
Voltage RequiredAC 120/230 V / DC 12 V AC 100-240 V / DC 12 V
Frequency50/60 Hz
Power Consumption100 Watt
Terminals
Terminals(1) x headphones - phone stereo 6.3 mm ¦ (1) x remote control input - 9 pin D-Sub (DB-9) ¦ (1) x remote control output - 9 pin D-Sub (DB-9) ¦ (1) x network - RJ-45 ¦ (1) x USB - USB-C ¦ (1) x REF input - BNC ¦ (1) x REF output - BNC ¦ (1) x timecode input - BNC ¦ (1) x timecode output - BNC ¦ (1) x HDMI input - 19 pin HDMI Type A ¦ (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x 6G-SDI input - BNC ¦ (1) x 6G-SDI loop out - BNC ¦ (1) x 6G-SDI output - BNC
