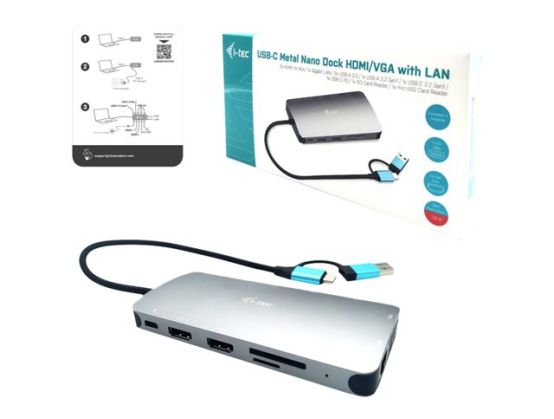

A powerful yet small and portable docking station that supports up to three external monitors. The dock can be used with virtually any laptop as it supports connection to all common ports: USB 3.0, USB-C, USB4 and Thunderbolt 3/4, while supporting all common current operating systems. However, connection to three monitors will only be possible with a laptop with a Thunderbolt 3/4 port or a USB-C port that supports video transfer (USB-C DP Alt mode).
Product Descriptioni-Tec Nano Dock - docking station - USB 3.0 / USB4 / Thunderbolt 4 - VGA, 2 x HDMI - 1GbE
Product TypeDocking station
Docking InterfaceUSB 3.0 / USB4 / Thunderbolt 4
Video InterfacesVGA, 2 x HDMI
Dimensions (WxDxH)12.7 cm x 6 cm x 1.8 cm
Weight122 g
ColourGrey
LocalisationEurope
NetworkingGigabit Ethernet
PowerPower adapter not included 100 Watt Power Provided
Manufacturer Warranty2-year warranty
Extended Specification
General
Product TypeDocking station
Width12.7 cm
Depth6 cm
Height1.8 cm
Weight122 g
Enclosure ColourGrey
LocalisationEurope
Video
Max Resolution Details4K - 30 Hz (HDMI1 only) ¦ 1920 x 1080 - 60 Hz (Single Display (VGA)) ¦ 1920 x 1080 - 60 Hz (HDMI2 only) ¦ 1920 x 1080@60Hz, 4K@30Hz (HDMI1 and HDMI2 simultaneously) ¦ 1920 x 1080, 4K - 60 Hz (HDMI1 and VGA simultaneously) ¦ 1920 x 1080 - 60 Hz (HDMI2 and VGA simultaneously) ¦ 1920 x 1080@60Hz, 4K@30Hz (Triple Display (2 x HDMI + VGA))
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD
Interfaces2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x USB-C 3.2 Gen 1 (data only) - 24 pin USB-C ¦ 1 x USB-C with Power Delivery (power only) - 24 pin USB-C ¦ 1 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x headphone/microphone combo jack - mini-phone stereo 3.5 mm ¦ 3 x USB 2.0 - 4 pin USB Type A
Miscellaneous
Cables Included1 x USB-C cable with USB-C to USB-A dongle - integrated - 30 cm
FeaturesLED indicator, 100W power delivery, USB-C Alt Mode, aluminium housing
Power
Power DevicePower adapter not included
Power Provided100 Watt
System Requirements
OS RequiredApple MacOS, Linux, Android, Google Chrome OS, Windows 10, Windows 11
Manufacturer Warranty
Service & SupportLimited warranty - 2 years ¦ Technical support - lifetime
