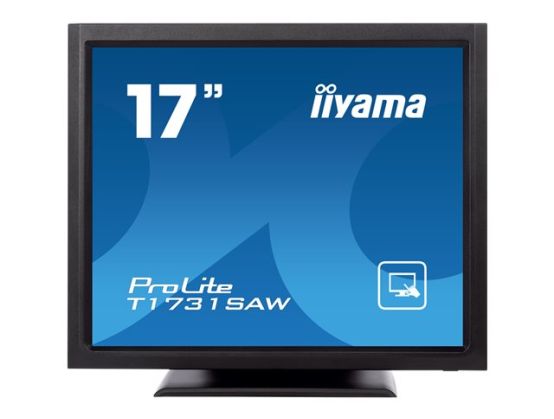

iiyama ProLite T1731SAW-B5 - LED monitor - 17"
Manufacture#: T1731SAW-B5
Checking delivery…
Product details
LED monitor
17"
touchscreen
1280 x 1024 @ 75 Hz
Payment options available at checkout
Main features
iiyama ProLite T1731SAW-B5
LED monitor
17"
touchscreen
1280 x 1024 @ 75 Hz
TN
250 cd/m²
1000:1
5 ms
HDMI, VGA, DisplayPort
speakers
black
Overview
The ProLite T1731SAW-B5 offers superior image clarity and screen durability. The screen can be touched with a soft stylus, finger or gloved hand making it suitable for a number of applications, and the solid but flexible stand ensures resilience in demanding environments. Menu buttons are located on the side of the screen which can be locked to prevent tampering, and include a handy function to deactivate the touchscreen for cleaning.
Product Description
iiyama ProLite T1731SAW-B5 - LED monitor - 17"
Device Type
LED-backlit LCD monitor - 17" - touchscreen
Energy Class
Class E
Energy Consumption per Year
22 kWh
Power Consumption (On mode)
12.3 W
Features
Touch-screen
Panel Type
TN
Aspect Ratio
5:4
Native Resolution
1280 x 1024 at 75 Hz
Pixel Pitch
0.264 mm
Brightness
250 cd/m²
Contrast Ratio
1000:1
Response Time
5 ms
Colour Support
16.7 million colours
Input Connectors
HDMI, VGA, DisplayPort
Display Position Adjustments
Tilt
Screen Coating
Matte
Voltage
AC 120/230 V (50/60 Hz)
Colour
Black
Dimensions (WxDxH)
38.7 cm x 20.1 cm x 34.2 cm
Weight
5.8 kg
Compliant Standards
Plug and Play, VCCI, GOST, DDC-2B, IP54, TUV Bauart
Manufacturer Warranty
3-year warranty
General
Display Type
LED-backlit LCD monitor / TFT active matrix
Energy Class
Class E
Energy Consumption per Year
22 kWh
Diagonal Size
17"
Panel Type
TN
Aspect Ratio
5:4
Native Resolution
1280 x 1024 at 75 Hz
Pixel Pitch
0.264 mm
Brightness
250 cd/m²
Brightness w/touchscreen
230 cd/m²
Contrast Ratio
1000:1
Colour Support
16.7 million colours
Response Time
5 ms
Vertical Refresh Rate
50 - 75 Hz
Horizontal Refresh Rate
31 - 80 KHz
Horizontal Viewing Angle
+85 / -80
Vertical Viewing Angle
+85 / -80
Screen Coating
Matte
Backlight Technology
WLED
OSD Languages
English, German, French, Italian, Spanish, Japanese, Chinese
Features
Cable management cover, HDCP
Colour
Black
Dimensions (WxDxH)
38.7 cm x 20.1 cm x 34.2 cm
Weight
5.8 kg
Audio
Type
Speakers - stereo
Output Power / Channel
1 Watt
Input
Type
Touch-screen - touchscreen
Movement Detection Technology
Surface acoustic wave
Connectivity
Interfaces
HDMI ¦ VGA ¦ DisplayPort ¦ USB
Mechanical
Display Position Adjustments
Tilt
Tilt Angle
-5/+90
VESA Mounting Interface
100 x 100 mm
Miscellaneous
Features
Security lock slot (cable lock sold separately), 92% light transmittance
Cables Included
1 x USB cable ¦ 1 x HDMI cable ¦ 1 x audio cable ¦ 1 x DisplayPort cable
Compliant Standards
Plug and Play, VCCI, GOST, DDC-2B, IP54, TUV Bauart
Security Slot Type
Kensington security slot
Power
Input Voltage
AC 120/230 V (50/60 Hz)
Power Consumption (On mode)
12.3 W
Power Consumption SDR (On mode)
12.3 kWh/1000h
Power Consumption (Typical)
20 Watt
Power Consumption Stand by
3 Watt
Software / System Requirements
Included Software
Drivers & Utilities
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
