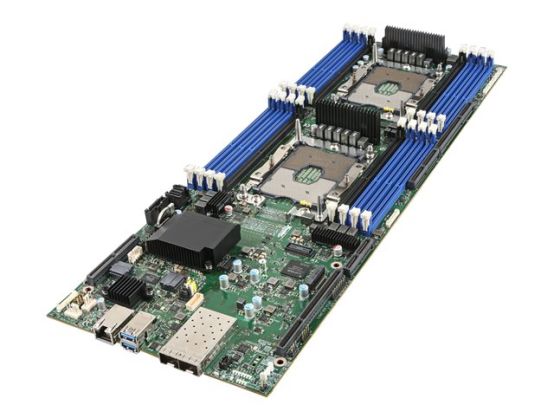

Intel Compute Module HNS2600BPBR - Server - blade 2-way - no CPU - RAM 0 GB - no HDD - Gigabit Ethernet, 10 Gigabit Ethernet - monitor: none
Manufacture#: HNS2600BPBR
Checking delivery…
Product details
Server
blade 2-way
no CPU
RAM 0 GB
Payment options available at checkout
Main features
Intel Compute Module HNS2600BPBR
Server
blade 2-way
no CPU
RAM 0 GB
no HDD
Gigabit Ethernet, 10 Gigabit Ethernet
monitor: none
Overview
The Intel Server Board S2600BP family is purpose-built for breakthrough performance, compute density, high-speed networking and I/O with stability and increased uptime, making it ideal for High Performance Computing, storage and cloud.
Product Description
Intel Compute Module HNS2600BPBR - blade no CPU - 0 GB - no HDD
Type
Server - blade
Server Scalability
2-way
Processor
No CPU
Processor Socket
Socket P
RAM
0 GB DDR4 SDRAM - ECC
Storage Controller
SATA (SATA 6Gb/s)
Hard Drive
No HDD
Optical Storage
No optical drive
Video Memory
16 MB DDR4 SDRAM
Networking
1GbE, 10GbE
Dimensions (WxDxH)
17.86 cm x 62.74 cm x 4.081 cm
Weight
4.32 kg
Manufacturer Warranty
Limited warranty - 3 years
General
Type
Server
Product Form Factor
Blade
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability
2-way
Processor / Chipset
CPU
No CPU
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
Socket P
Chipset Type
Intel C621
RAM
Installed Size
0 GB
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
16 (Total) / 16 (empty)
Features
Registered, Load-Reduced DIMM (LRDIMM)
Storage Controller
Type
SATA
Controller Interface Type
SATA 6Gb/s
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Video Memory
16 MB DDR4 SDRAM
Video Interfaces
VGA
Networking
Ethernet Ports
2 x 10 Gigabit Ethernet
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol
IPMI 2.0
Remote Management Controller
Intel Baseboard Management Controller (BMC)
Expansion / Connectivity
Slots
1 (total) / 1 (free) x PCIe 3.0 x16 (low-profile) ¦ 1 (total) / 1 (free) x M.2 Card - 2242
Interfaces
1 x VGA ¦ 2 x USB 3.0 ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 1 x serial ¦ 1 x management - RJ-45
Miscellaneous
Included Accessories
2 x CPU Heatsink, air duct, riser card, node power board, 1U node tray, 3 x system fans, M.2 to PCI adapter, external VGA port bracket, Intel Server Board S2600BPBR
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight
Width
17.86 cm
Depth
62.74 cm
Height
4.081 cm
Weight
4.32 kg
